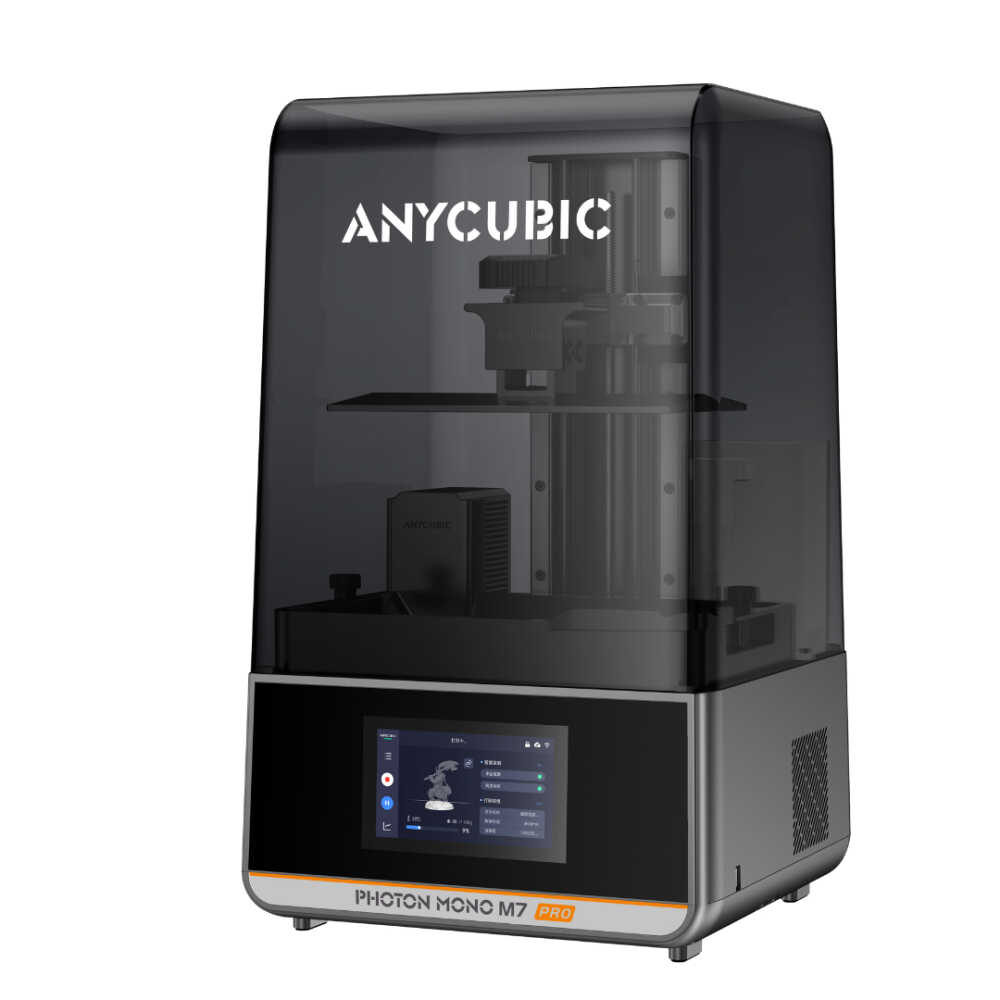

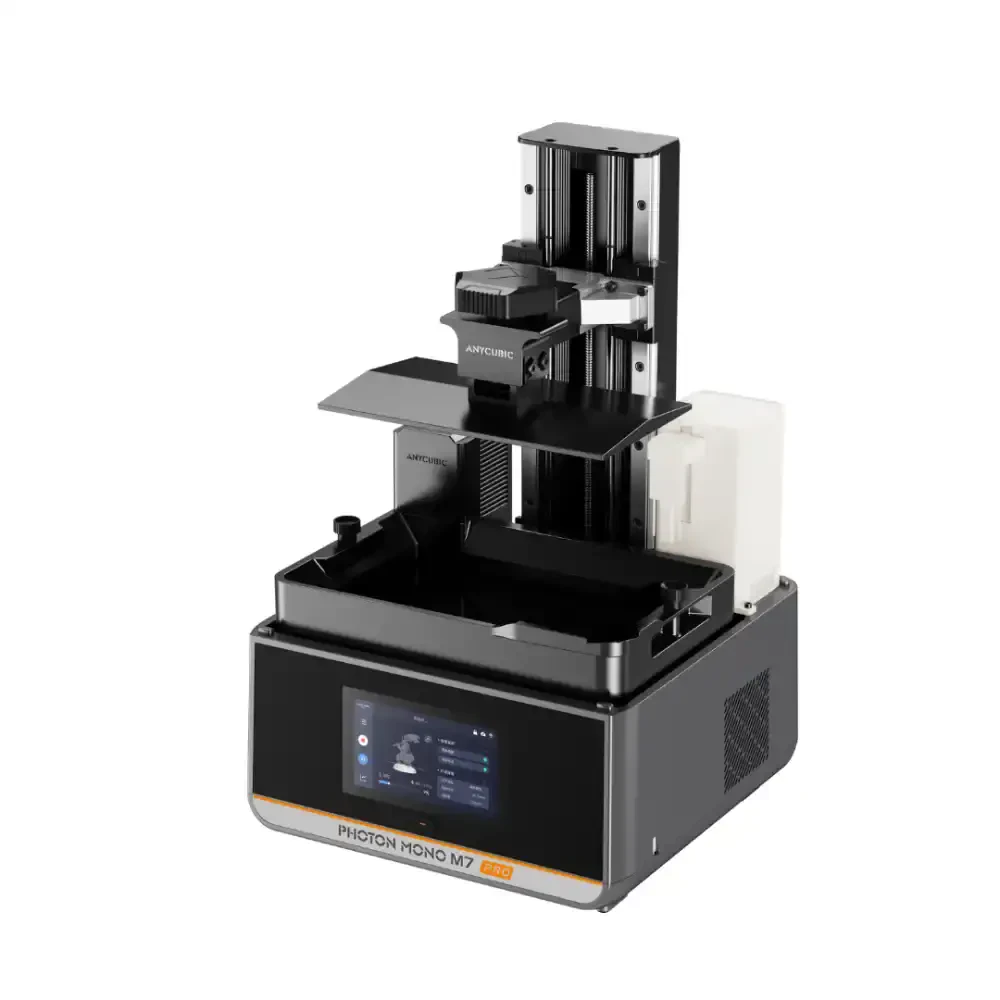

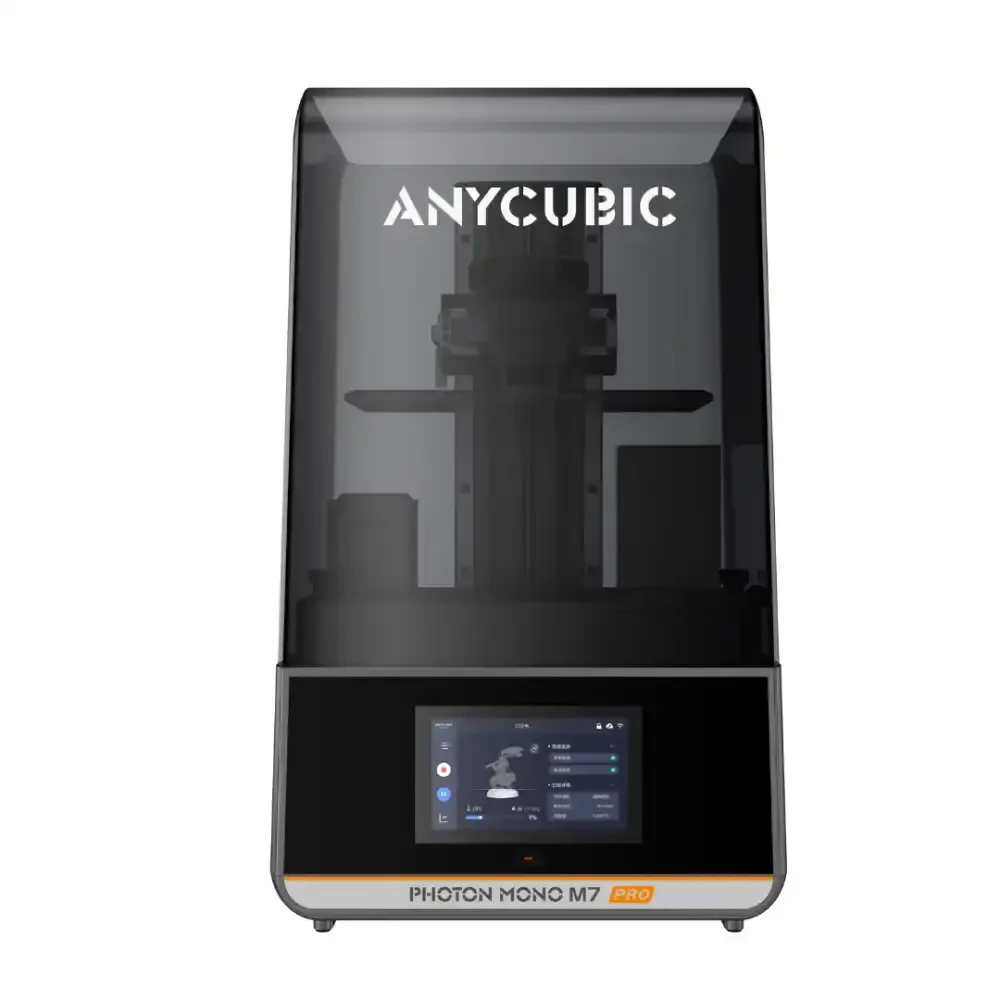

Anycubic PHOTON MONO M7 PRO 3D Printer
|
Enhance Your Creativity with a Larger Area
This 3D printer offers a vast area where you can bring your creativity to life without limitations, taking your projects to the size you envision. With its large printing volume and high-speed features, it allows you to complete all your designs quickly and with high quality.
|
 |
 |
Full Speed Ahead
It allows you to print at speeds up to 170 mm/hour with a 0.1 mm layer height. Operating at high speed, it enables you to complete your projects in less time, thereby increasing efficiency and saving time.
|
|
LightTurbo 3.0
The ultra-high precision LightTurbo 3.0 technology provides superior light intensity through an advanced combination of COB (Chip on Board) and Fresnel lenses. This results in sharper, more detailed prints, offering exceptional results for fine details and precision projects.
|
 |
Anycubic PHOTON MONO M7 PRO 3D Printer Technical Specifications:

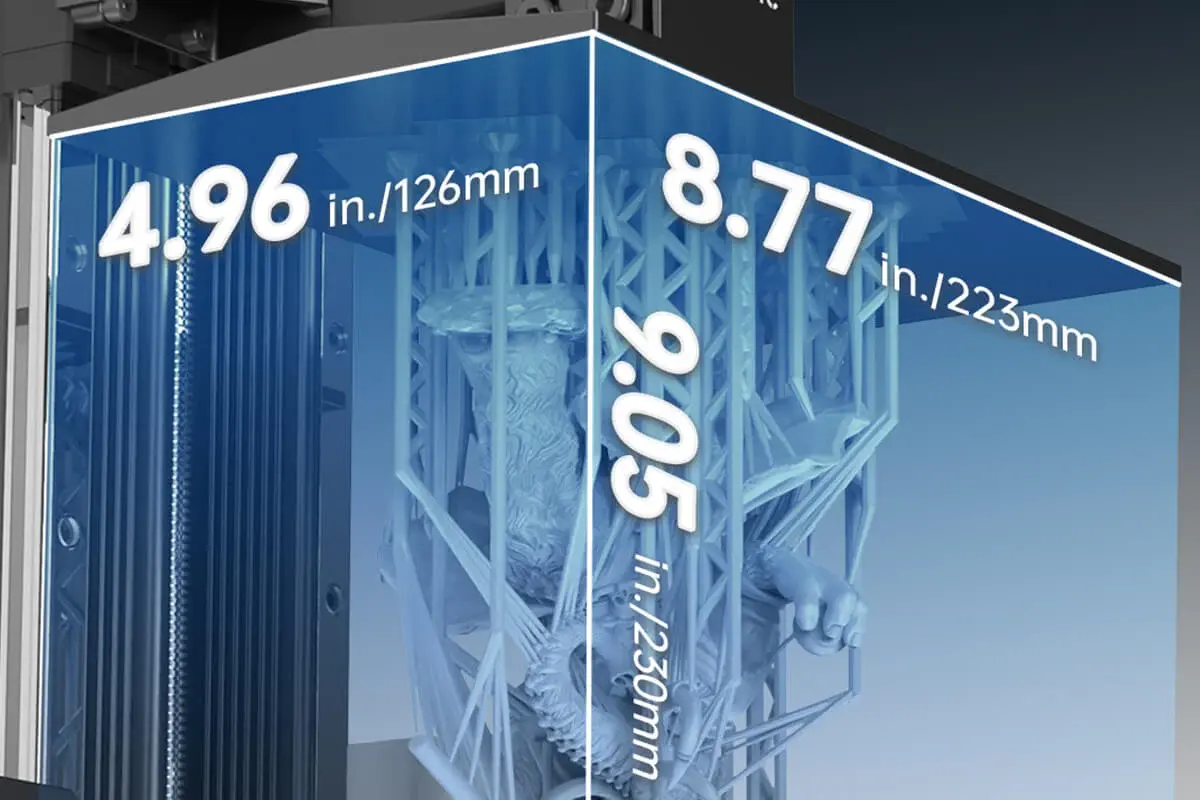

- Printing Volume: 223mm x 126mm x 230mm
- Build Volume: 6.5L
- Printing Speed: Max Speed ≤130mm/hour, 0.1mm Layer Height with Standard Resin; Max Speed ≤170mm/hour, 0.1mm Layer Height with High-Speed Resin; Max Speed ≤190mm/hour, 0.15mm Layer Height with High-Speed Resin; Max Speed ≤220mm/hour, 0.2mm Layer Height with High-Speed Resin
- Machine Leveling: Leveling-free
- Z Axis: Type T (Transport Ball Screw)
- LCD Screen Size: 10.1", 14K (13320 * 5120)
- Light Source: LightTurbo 3.0 (COB+Fresnel Lens)
- Printing Platform: Laser-carved Plate
- Display: 4.3" IPS Touch Control
- Slicing Software: Anycubic Slicing, CHITU, Tango (CHITU and Tango will be supported until the end of May)
- Material Compatibility: Compatible with various resins such as high-speed, water-washable, standard, ABS-like, plant-based, etc.
- Machine Dimensions: 312mm x 315mm x 520mm
- Machine Weight: 12.8kg
