7.0 Inch ESP32 HMI TFT LCD Touch Display - Enclosed

7.0 Inch ESP32 HMI TFT LCD Touch Display - Enclosed

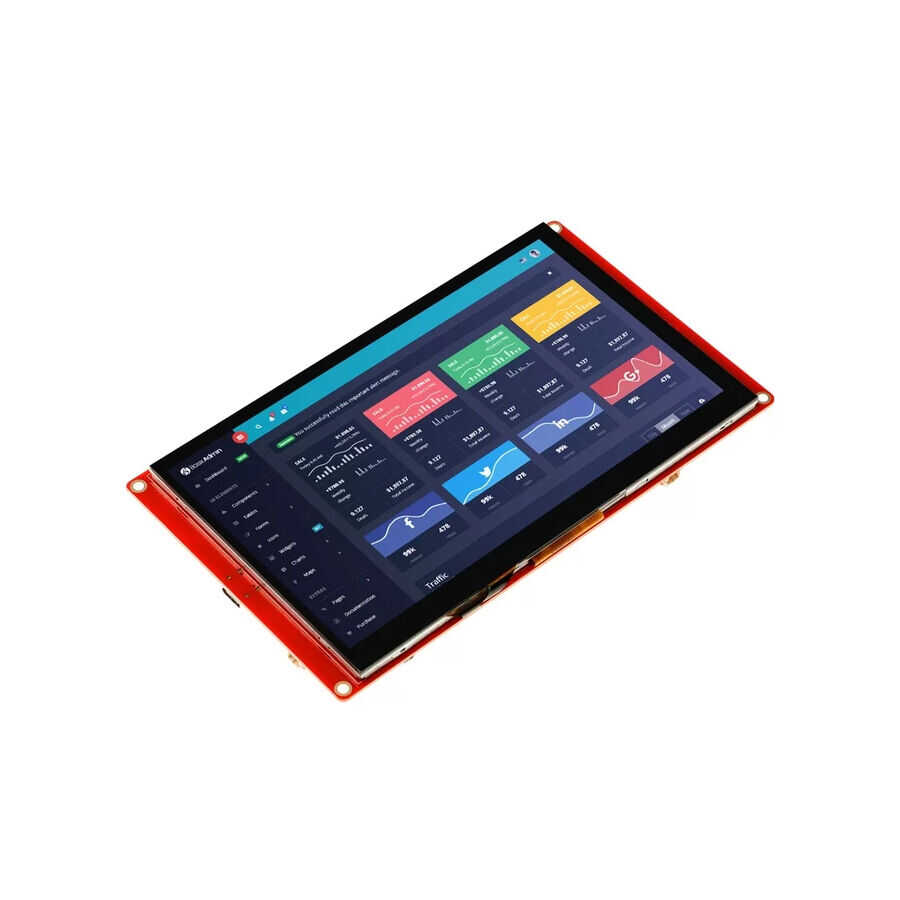

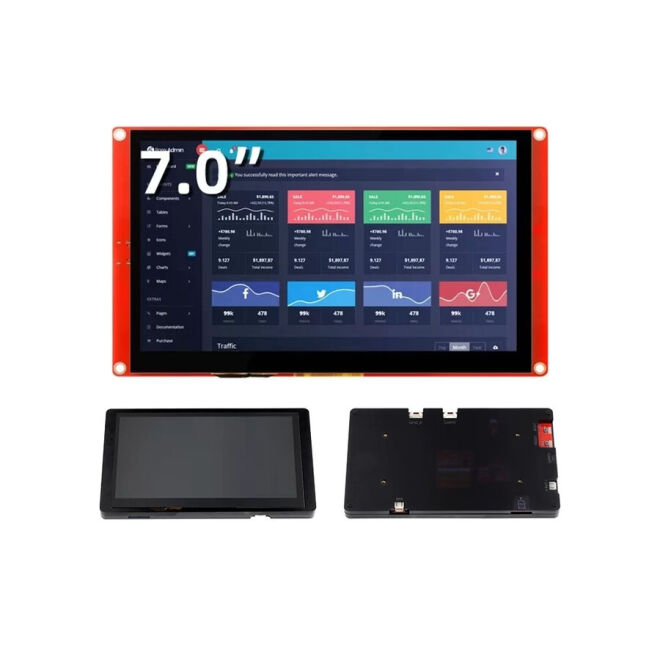

The 7.0 Inch ESP32 HMI TFT LCD Touch Display is an advanced human-machine interface (HMI) solution featuring an 800x480 pixel wide TFT screen and a powerful ESP32-S3-WROOM-1-N4R8 module. Its capacitive touch panel provides high sensitivity, multi-touch support, and a smooth user experience. The integrated enclosure protects the device from external impacts while giving your projects a professional and stylish appearance.

Powered by a 240 MHz ESP32-S3 processor with built-in Wi-Fi and Bluetooth connectivity, this module delivers high performance for IoT projects, industrial automation systems, smart control panels, data monitoring applications, smart home solutions, and custom graphical interface designs. The large 7-inch display allows you to design more detailed, readable, and user-friendly interfaces.

7.0 Inch ESP32 HMI TFT LCD Touch Display - Enclosed Technical Specifications:

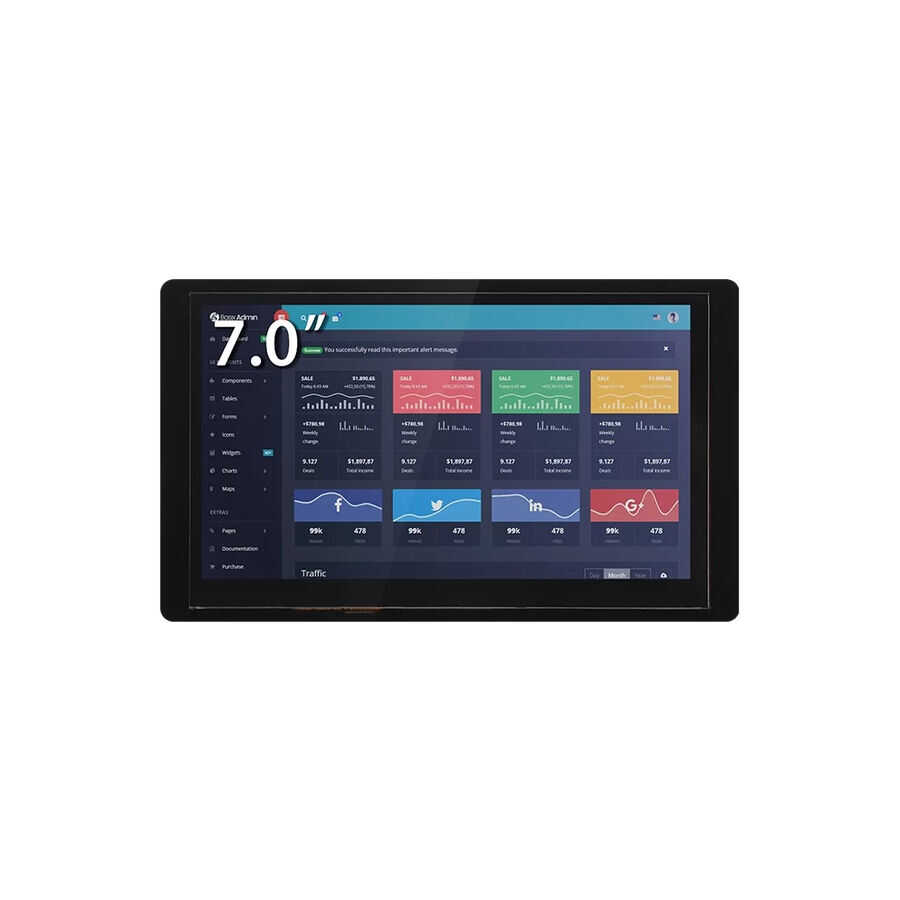

• Screen Size: 7.0 Inch

• Resolution: 800 x 480 pixels

• Touch Type: Capacitive Touch Panel

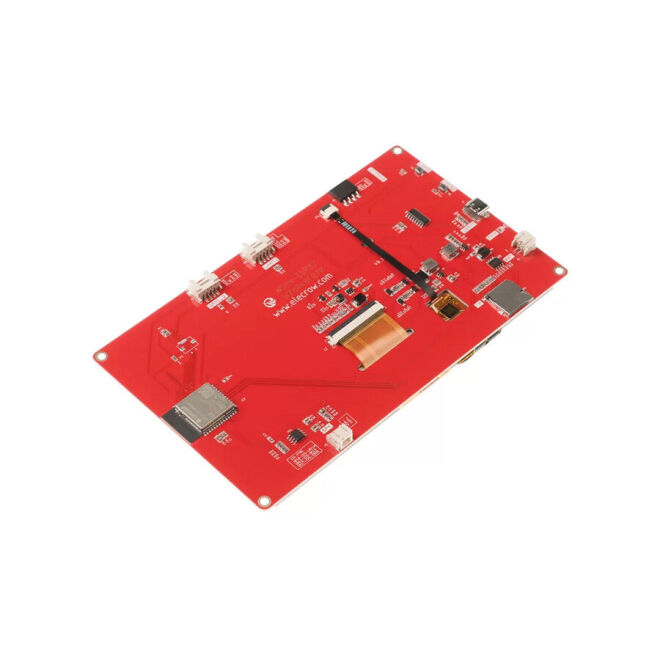

• Main Processor: ESP32-S3-WROOM-1-N4R8

• Processor Frequency: 240 MHz

• Flash Memory: 4 MB

• SRAM: 512 KB

• PSRAM: 8 MB

• Wireless Connectivity: 2.4 GHz Wi-Fi + Bluetooth

• Display Driver: EK9716BD3 & EK73002ACGB

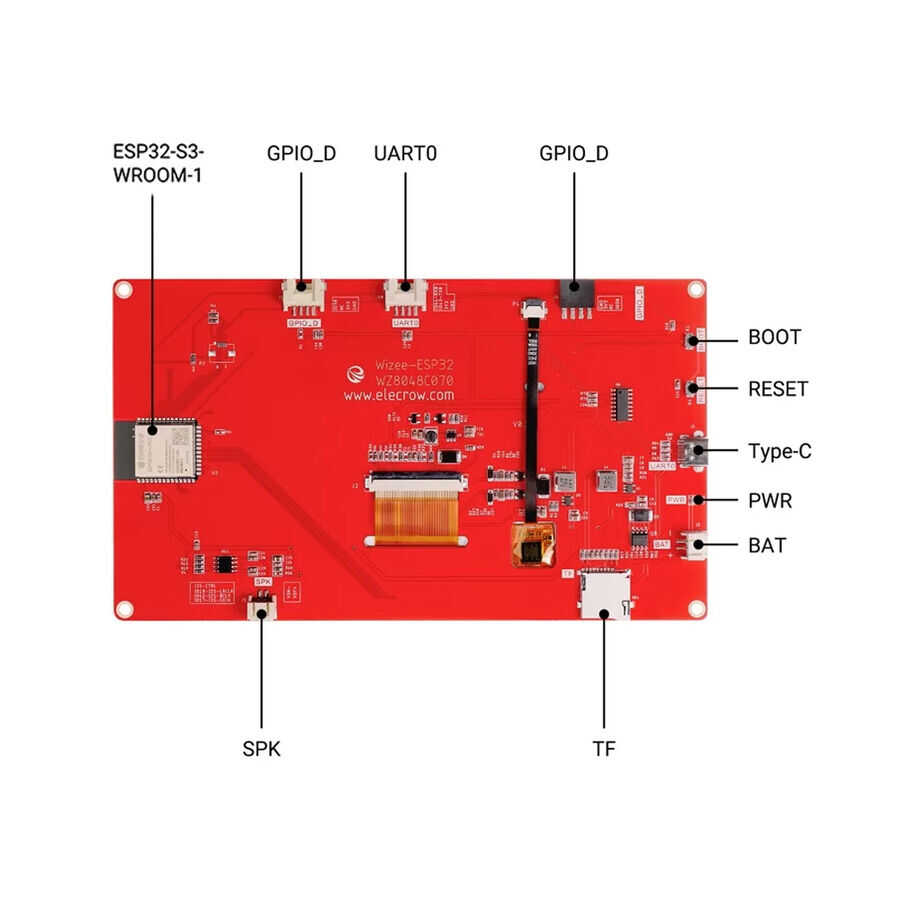

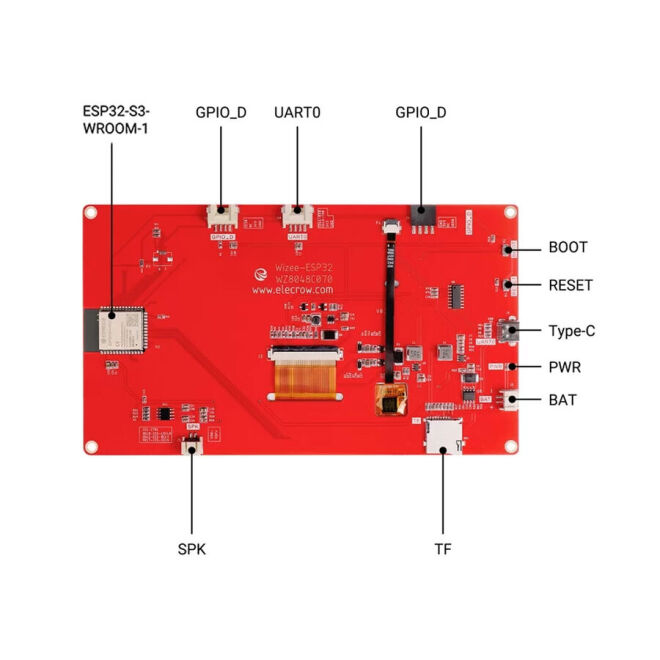

• Interfaces: 2x UART, 1x GPIO, 1x I2C, 1x SPI

• TF (MicroSD) Card Slot: Yes

• Speaker Jack: Yes

• Buttons: Boot Button, Reset Button

• Supply Voltage: 5V DC (USB Type-C)

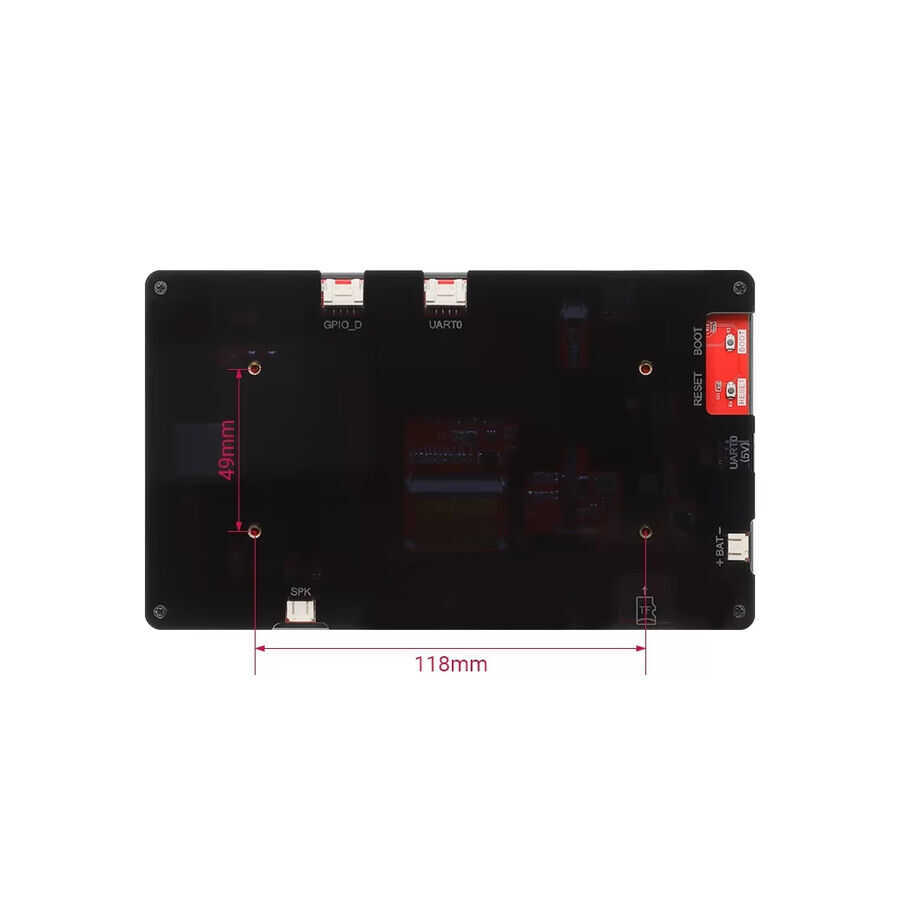

• Enclosure: Integrated protective case

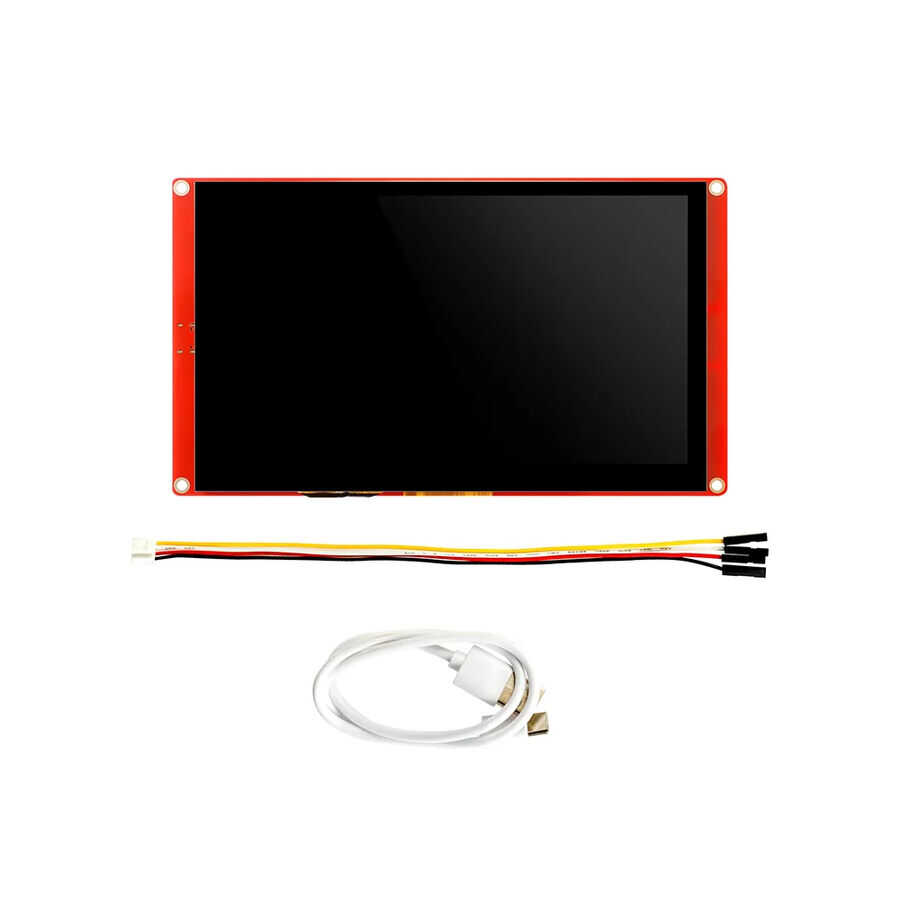

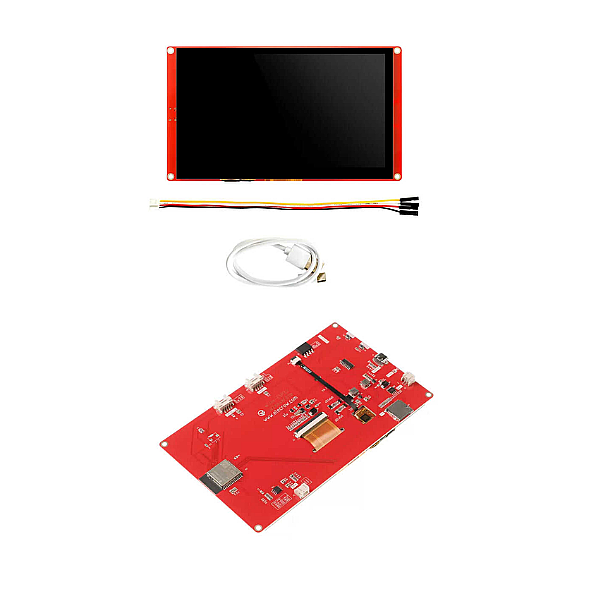

Package Contents:

• 1 x 7.0 Inch ESP32 HMI TFT LCD Touch Display (Enclosed)

• 1 x USB-A to USB Type-C Cable

• 4 x Pin Jumper Cables (Dupont)
