5.0 Inch ESP32 HMI TFT LCD Touch Display - Enclosed

Brand
Robotistan
Product Code
24135

5.0 Inch ESP32 HMI TFT LCD Touch Display - Enclosed

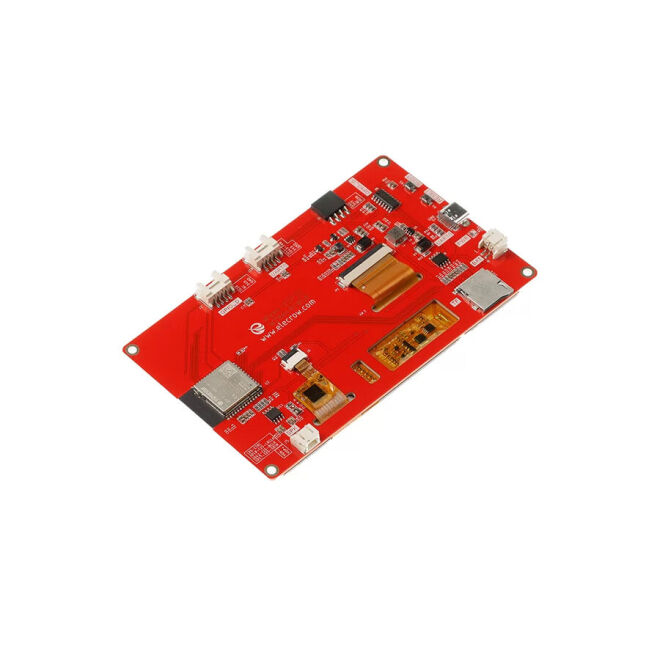

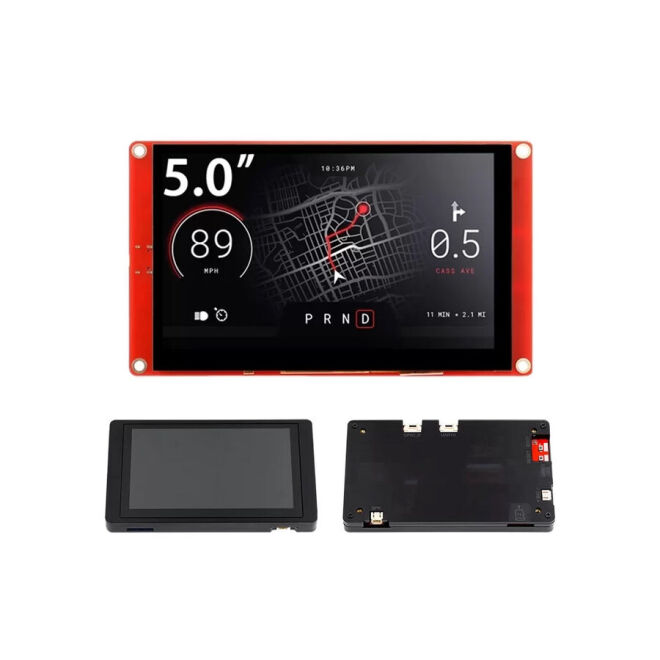

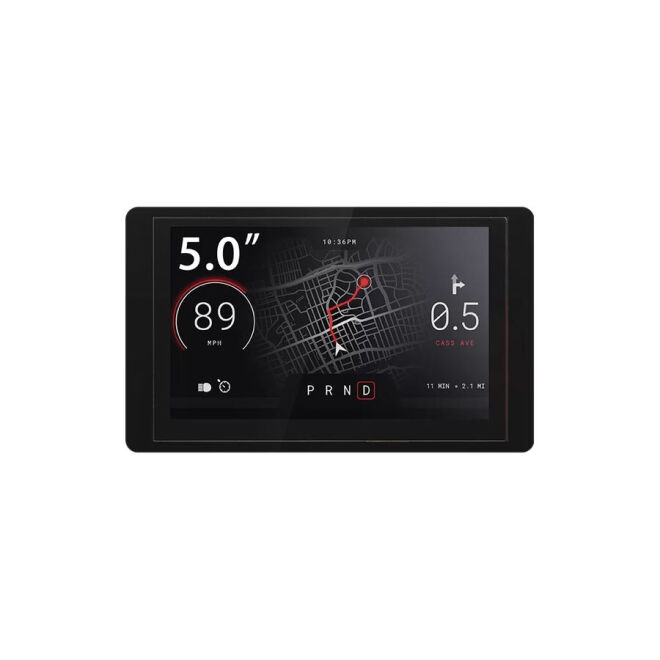

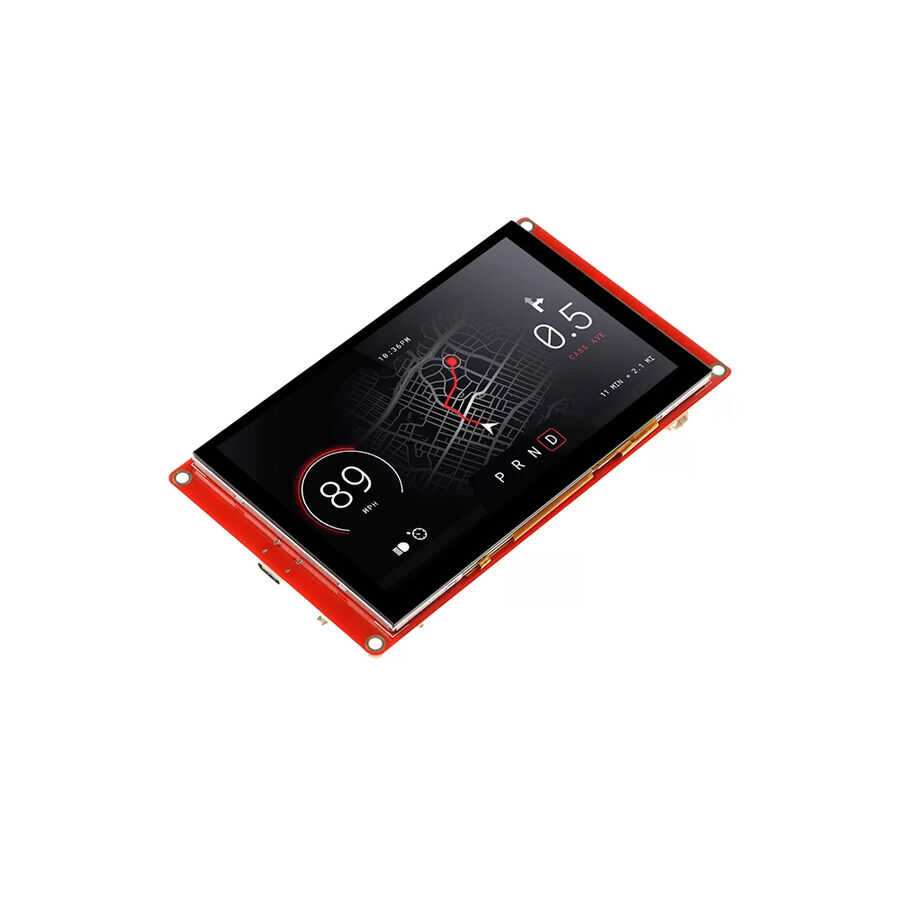

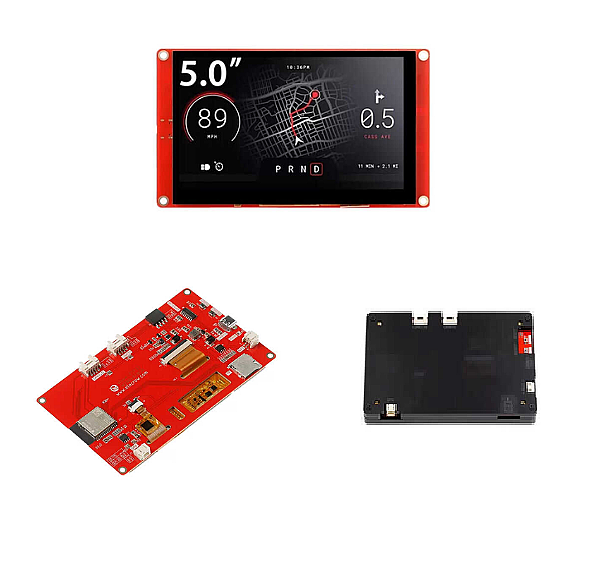

The 5.0 Inch ESP32 HMI TFT LCD Touch Display is an advanced human-machine interface (HMI) solution featuring an 800x480 pixel high-resolution TFT screen and a powerful ESP32-S3-WROOM-1-N4R8 module. Its capacitive touch panel delivers high sensitivity and a smooth user experience. The integrated enclosure provides mechanical protection while giving your projects a sleek and professional appearance.

Powered by a 240 MHz ESP32-S3 processor with built-in Wi-Fi and Bluetooth connectivity, this module offers high performance for IoT projects, smart control panels, industrial automation systems, data monitoring applications, smart home solutions, and custom graphical interface designs. Thanks to its large 800x480 resolution display, detailed and user-friendly interfaces can be easily developed.



5.0 Inch ESP32 HMI TFT LCD Touch Display - Enclosed Technical Specifications:

  • Screen Size: 5.0 Inch

  • Resolution: 800 x 480 pixels

  • Touch Type: Capacitive Touch Panel

  • Main Processor: ESP32-S3-WROOM-1-N4R8

  • Processor Frequency: 240 MHz

  • Flash Memory: 4 MB

  • SRAM: 512 KB

  • PSRAM: 8 MB

  • Wireless Connectivity: 2.4 GHz Wi-Fi + Bluetooth

  • Display Driver: ILI6122 & ILI5960

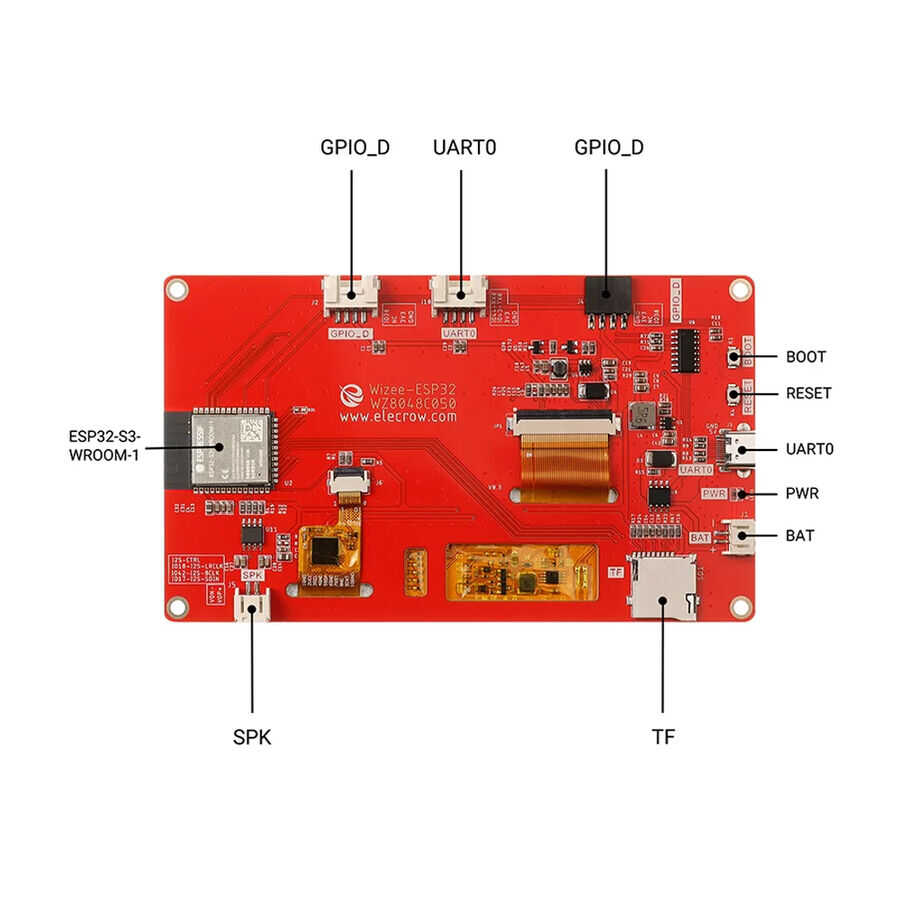

  • Interfaces: 2x UART, 2x GPIO, 2x I2C, 1x SPI

  • TF (MicroSD) Card Slot: Yes

  • Speaker Jack: Yes

  • Buttons: Boot Button, Reset Button

  • Supply Voltage: 5V DC (USB Type-C)

  • Enclosure: Integrated protective case



Package Contents:

  • 1 x 5.0 Inch ESP32 HMI TFT LCD Touch Display (Enclosed)

  • 1 x USB-A to USB Type-C Cable

  • 4 x Pin Jumper Cables (Dupont)
