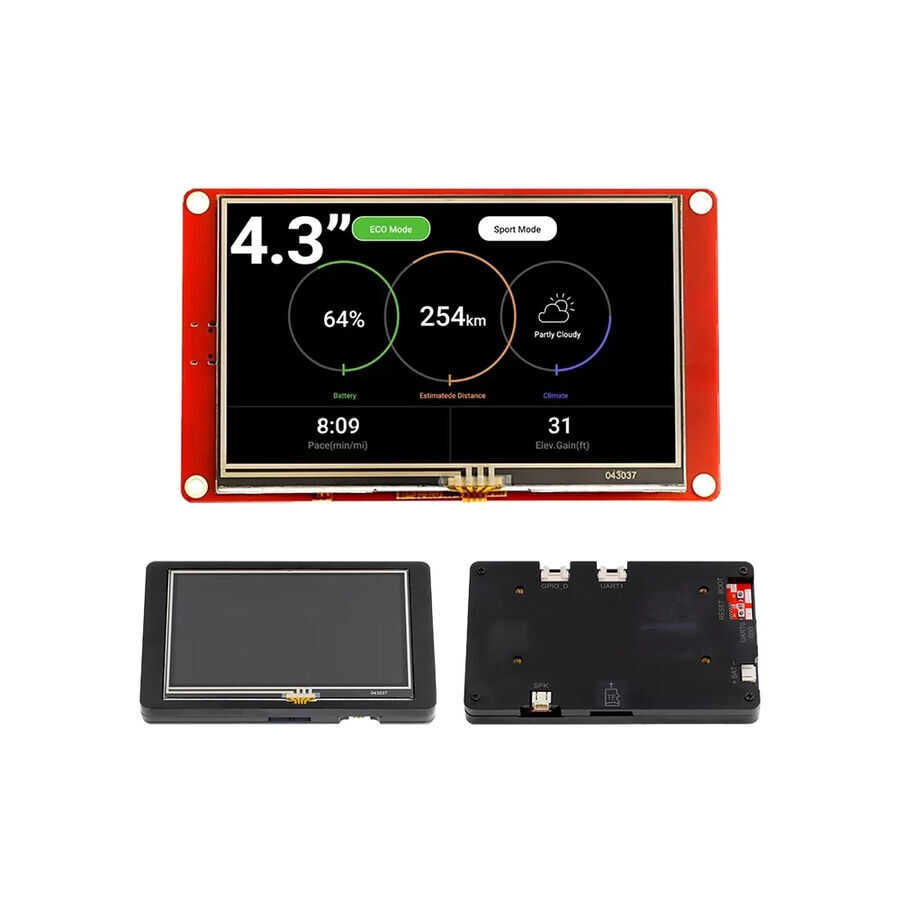

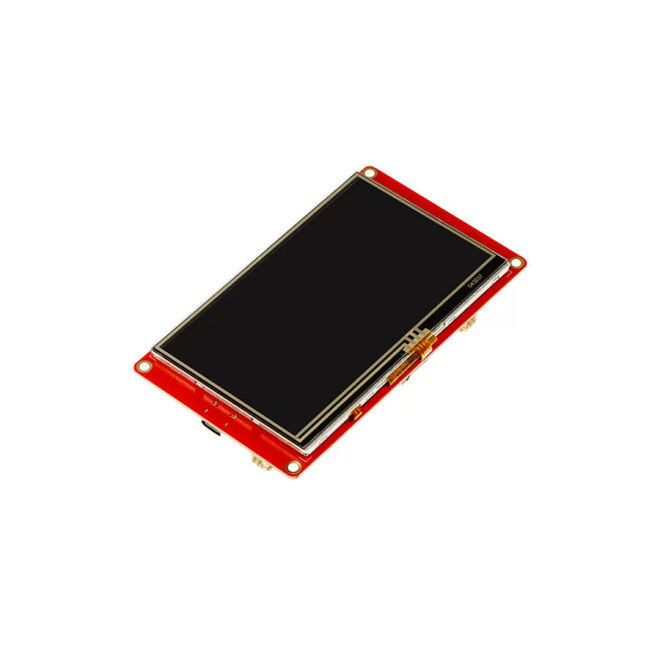

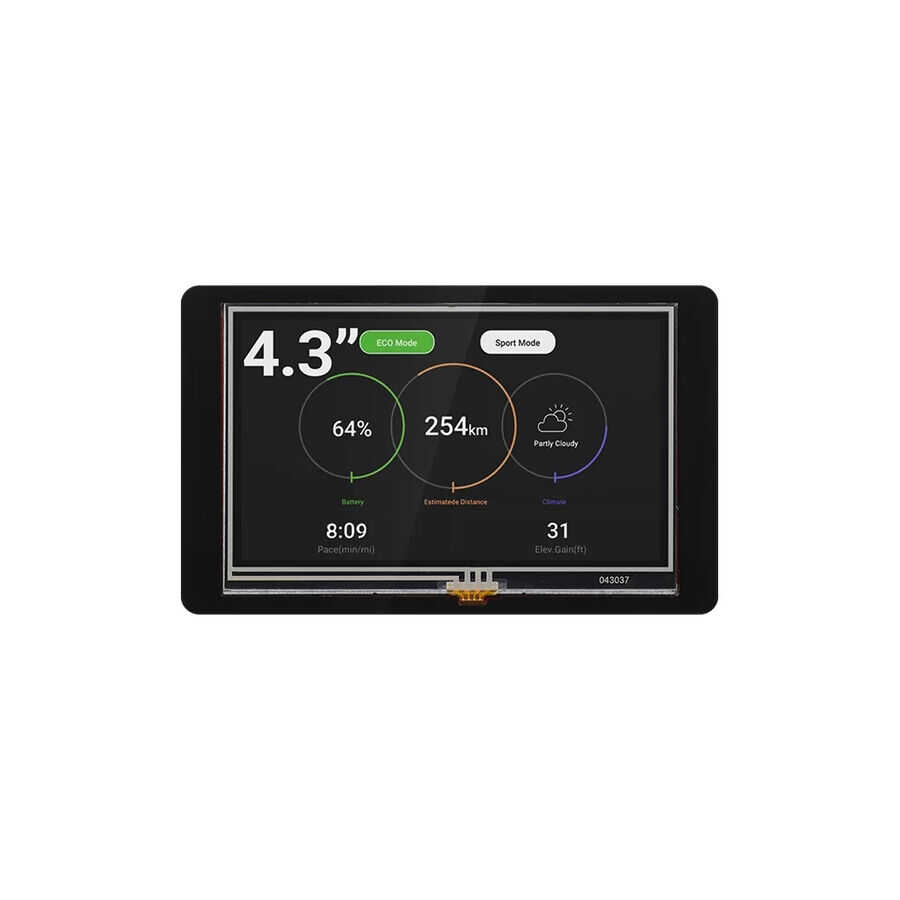

4.3 Inch ESP32 HMI TFT LCD Touch Screen - With Case

4.3 Inch ESP32 HMI TFT LCD Touch Screen - With Case

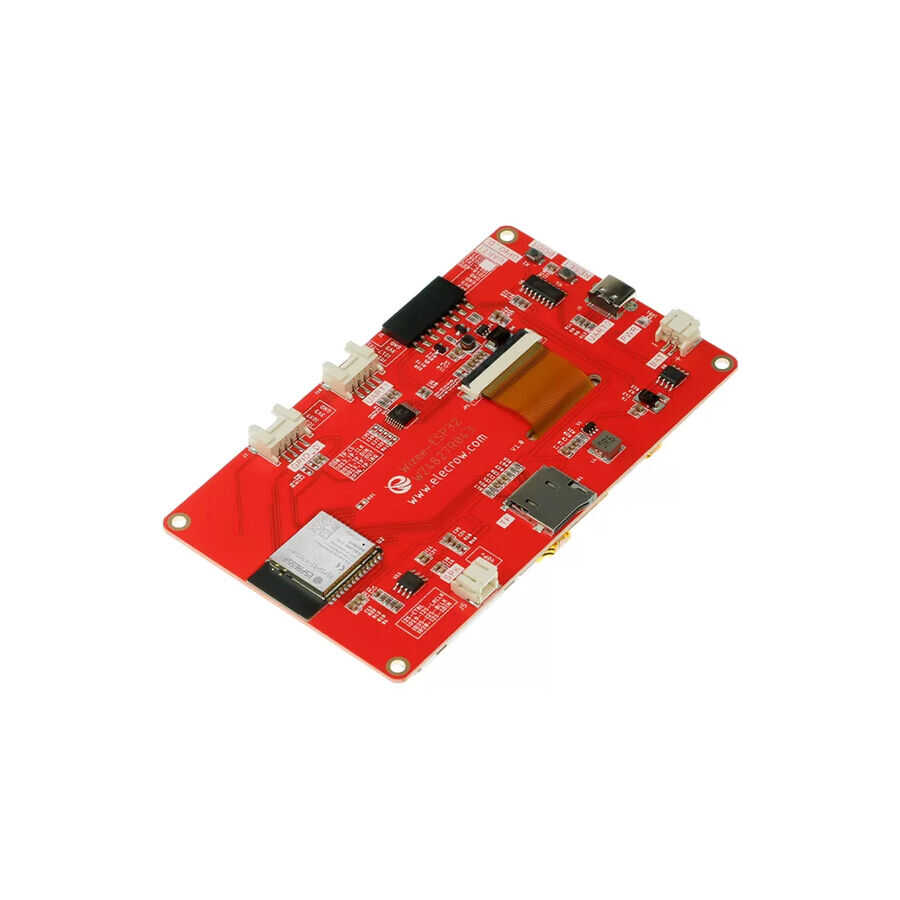

The 4.3 Inch ESP32 HMI TFT LCD Touch Screen is a powerful human-machine interface (HMI) solution featuring a 480x272 pixel resolution TFT display and an integrated ESP32-WROOM-32 module. Its resistive touch panel provides precise and reliable touch control. The enclosed case design protects the device against external impacts while giving your projects a professional and aesthetic appearance.

Powered by a dual-core 240 MHz ESP32 processor with built-in Wi-Fi (802.11 b/g/n) and Bluetooth connectivity, this module is ideal for IoT applications, industrial control panels, data monitoring systems, smart home projects, and custom graphical interface designs. Thanks to its wide display area, more detailed and user-friendly interfaces can be developed.

4.3 Inch ESP32 HMI TFT LCD Touch Screen - With Case Technical Specifications:

• Screen Size: 4.3 Inch

• Resolution: 480 x 272 pixels

• Display Type: TFT LCD

• Touch Type: Resistive Touch Panel

• Main Processor: ESP32-WROOM-32

• Processor Frequency: 240 MHz

• Flash Memory: 4 MB

• SRAM: 520 KB

• ROM: 448 KB

• Wireless Connectivity: 2.4 GHz Wi-Fi (802.11 b/g/n) + Bluetooth

• Display Driver: NV3047

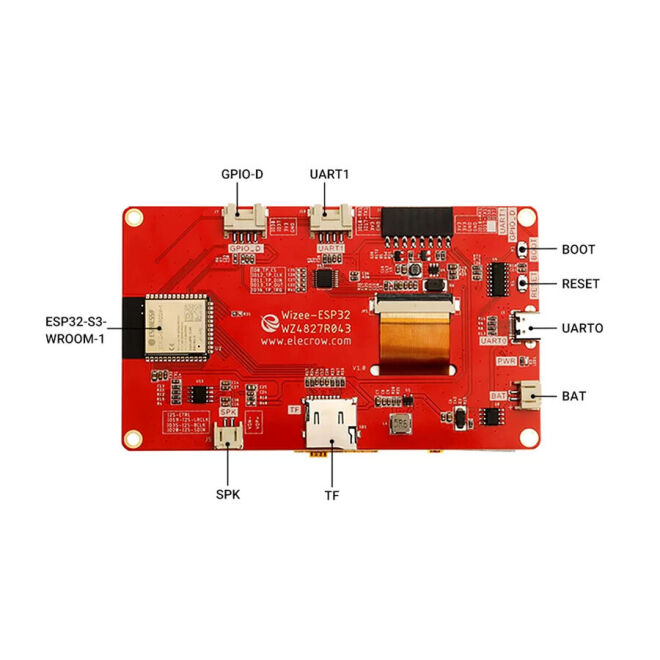

• Interfaces: 1x UART0, 1x UART1, 1x I2C, 1x SPI, Multiple GPIO

• TF (MicroSD) Card Slot: Yes

• Speaker Jack: Yes

• Programming: Via USB Type-C

• Buttons: Boot Button, Reset Button

• Supply Voltage: 5V DC (USB)

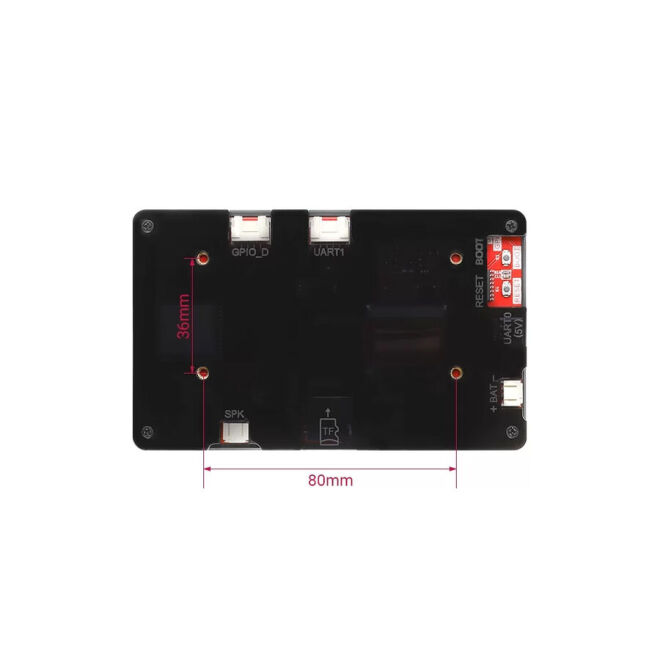

• Case: Integrated protective enclosure

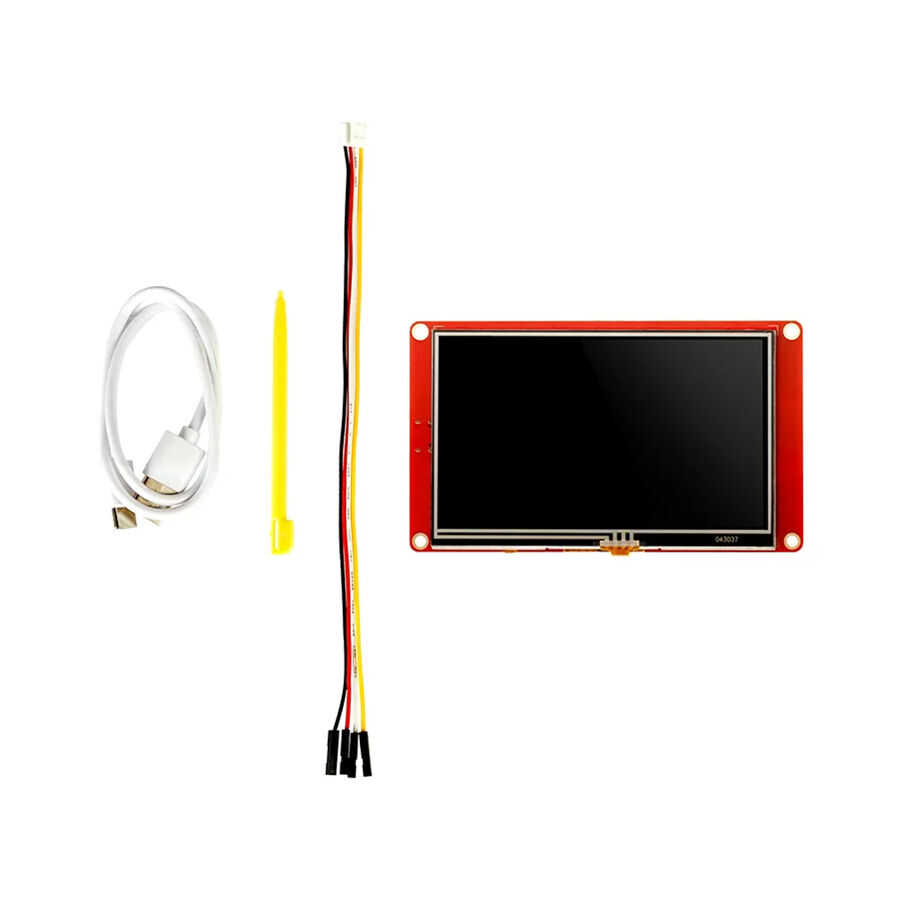

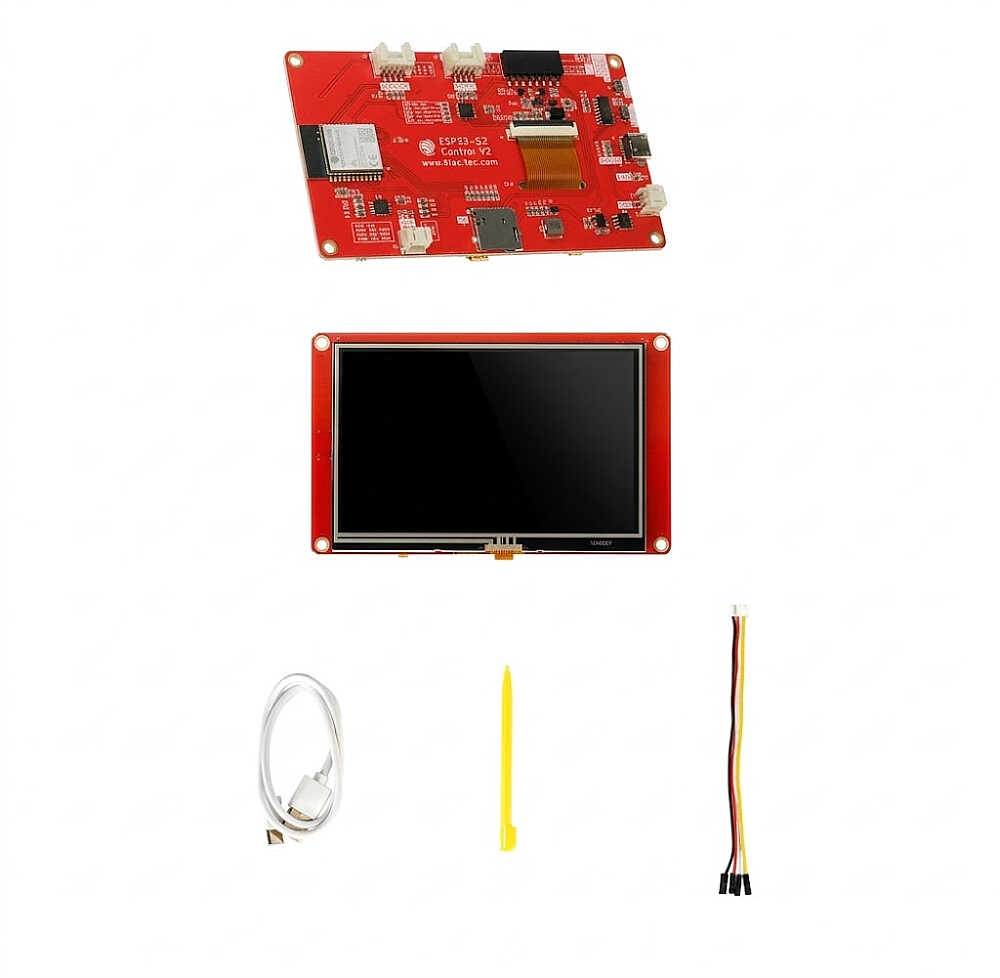

Package Contents:

• 1 x 4.3 Inch ESP32 HMI TFT LCD Touch Screen (With Case)

• 1 x USB-A to USB Type-C Cable

• 1 x Touch Pen
