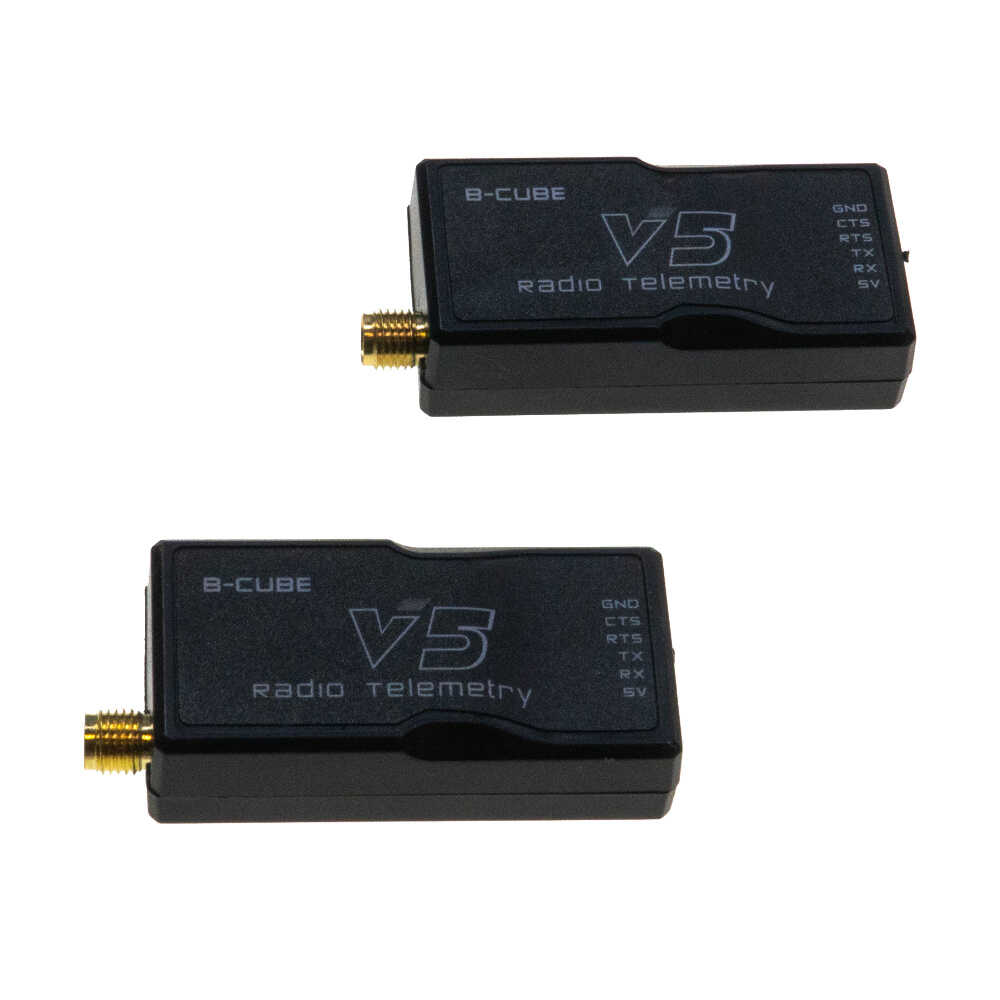

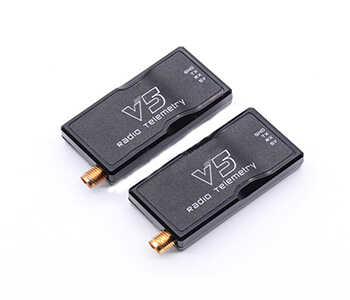

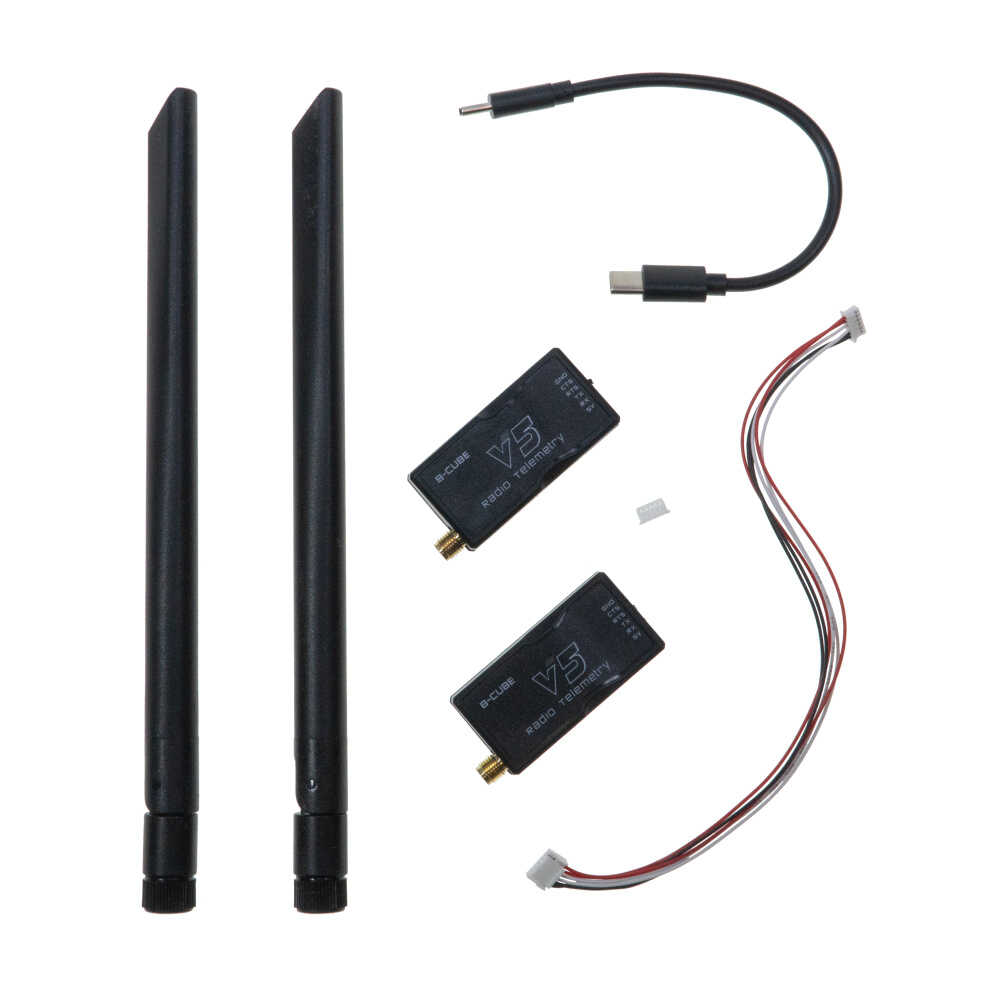

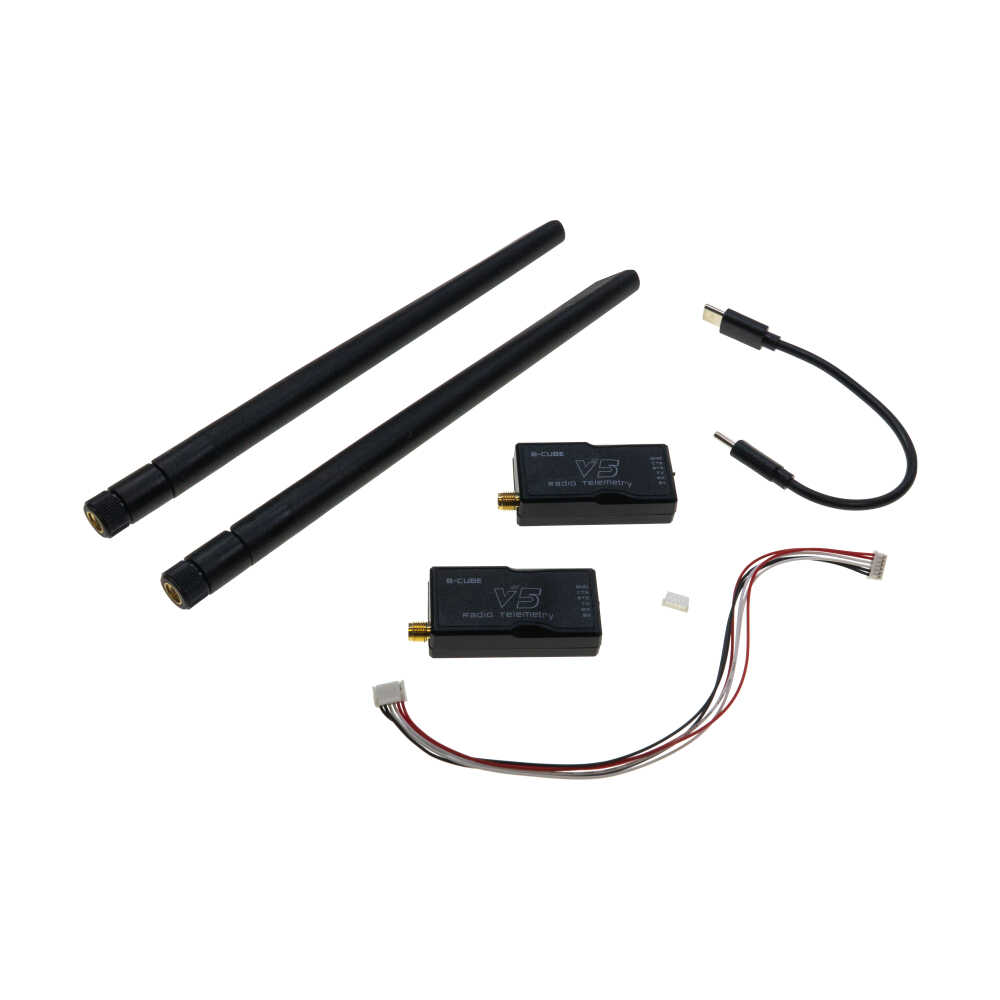

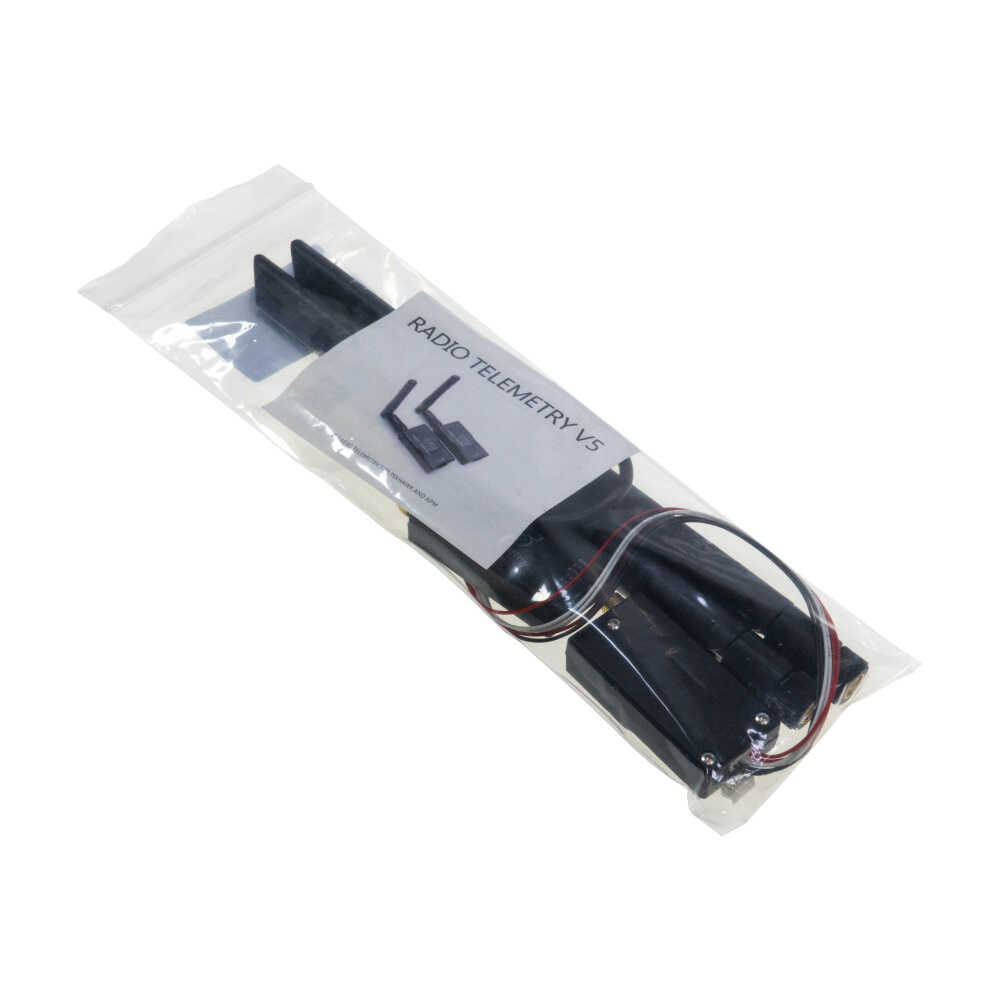

1000MW OTG Wired Data Transmission Module for 3DR V5 APM 2.8 and Pixhawk 2.4.8



Wired Data Transmission Module is a module used in drones to monitor or control wires in some way. It is used for easy wireless communication. There are remote radio gateway RT and AT commands for radio configuration.

Wired Data Transmission Module Technical Specifications:



  • Receiver sensitivity: -117 dBm
  • Air data rates: 250 kbps
  • Transmit power: 20dBm
  • Antenna Connectors: RP-SMA
  • Output Power: 100 MW
  • Interface: Standard TTL UART
  • LBT and AFA support.
  • Configurable Duty Cycle.
  • FPV Radio Telemetry Air Module Size: 50 x 27 x 10 mm
  • FPV Radio Telemetry Ground Module Size: 70 x 22 x 11 mm
  • Color: Black
