3D Gesture Sensor (Mini) for Arduino

3D Gesture Sensor (Mini) for Arduino

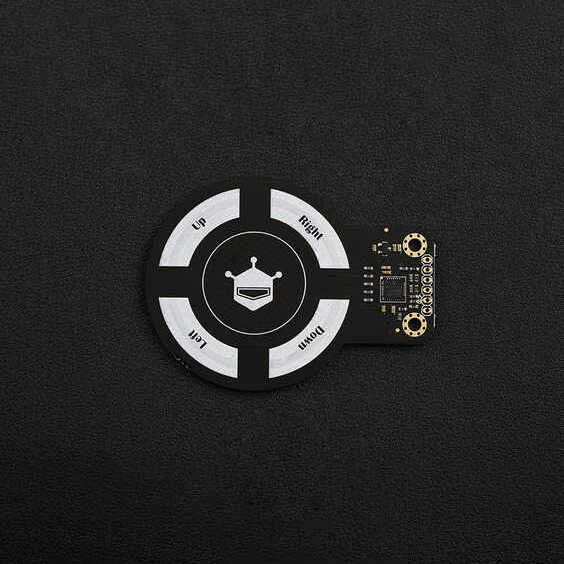

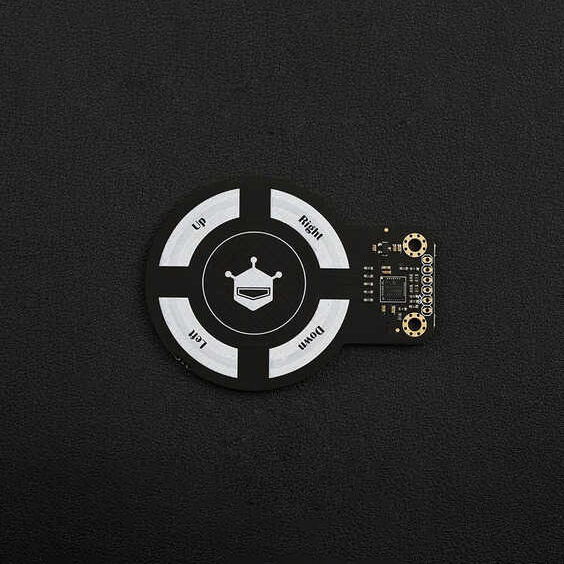

Do you want to design a contactless control system? Do you want to perform operations like turning the volume up or down, playing music, or switching lights on and off using just your hand gestures? The sensor you are looking for is right here. With the 3D Gesture Sensor, you can easily realize such projects. The 3D Gesture Sensor is an interactive sensor capable of tasks like 3D gesture recognition and motion tracking. It utilizes Microchip's patented GestIC® technology, allowing it to detect motion in 3D within a range of 0-10 cm. It can recognize directional movements such as clockwise, counter-clockwise, up, down, right, and left. With these features, the 3D Gesture Sensor will become an indispensable component for your contactless human-interactive projects.

Technical Specifications:

• Operating Voltage: 3.3 - 5V
• Communication Protocol: I2C
• I2C Address: 0x42
• Gesture Detection Distance: 5 cm
• Trigger Distance: 10 cm
• Board Dimensions: 72 x 54 mm
• Operating Temperature: -20 ℃ ~ +85 ℃
• Spatial Resolution: 150 dpi

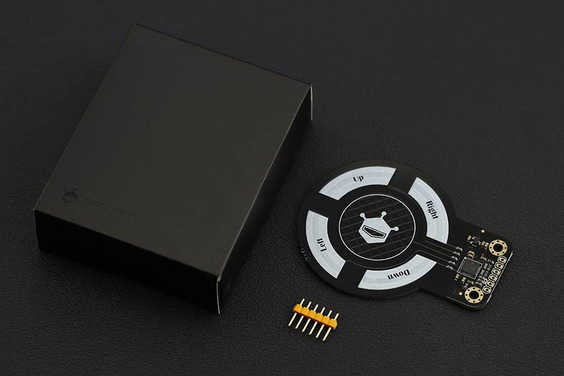

Package Contents:

• 1 x 3D Gesture Sensor mini
• 1 x XH2.54-6P pin header

Documents & Useful Links:

• 3D Gesture Sensor Wiki
• More Documents

Tutorials:

• Sensor Kit Free Trial
