3.5 Inch ESP32 HMI TFT LCD Touch Screen - With Case

3.5 Inch ESP32 HMI TFT LCD Touch Screen - With Case

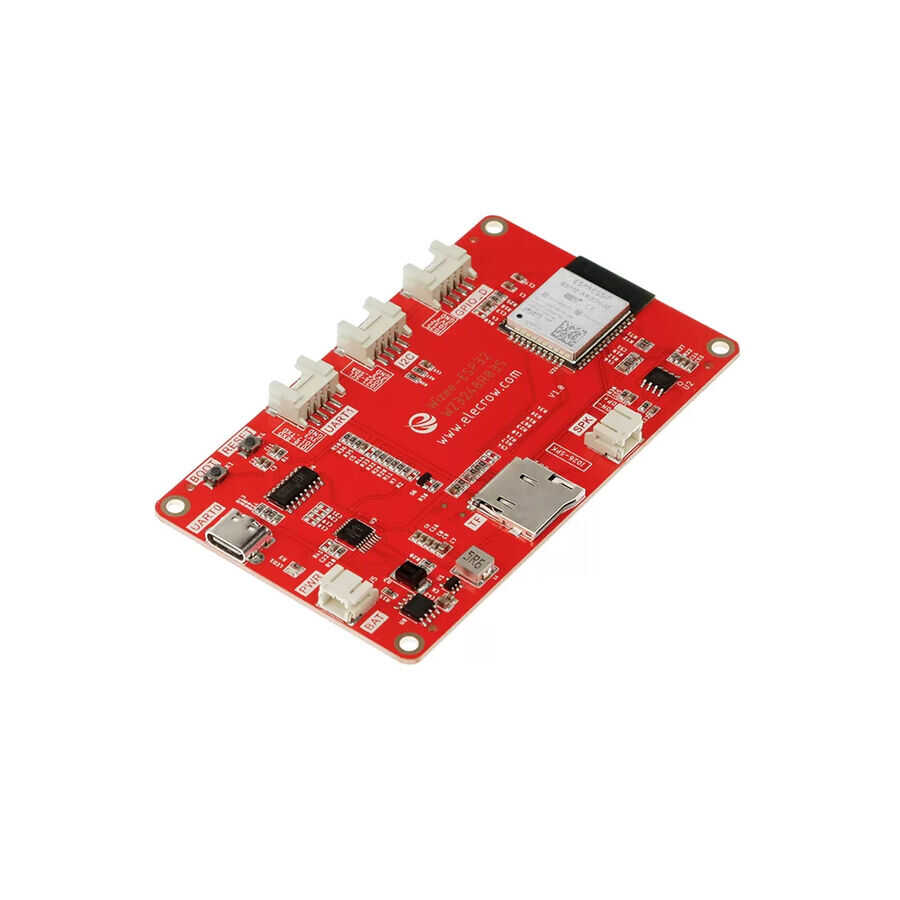

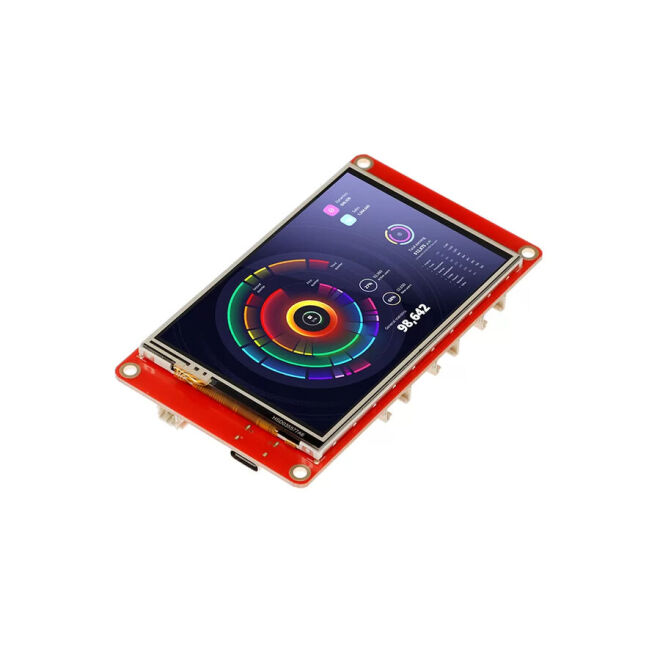

The 3.5 Inch ESP32 HMI TFT LCD Touch Screen is a powerful human-machine interface (HMI) solution featuring a 320x480 pixel resolution SPI TFT display and an integrated ESP32-WROOM-32 module. Its resistive touch panel provides precise and reliable touch control. The enclosed case design offers mechanical protection while giving your projects a professional and durable appearance.

Powered by a dual-core 240 MHz ESP32 processor with built-in Wi-Fi (802.11 b/g/n) and Bluetooth connectivity, this module is ideal for IoT projects, smart control panels, industrial automation systems, data monitoring, and control applications. Thanks to its larger display area, more detailed graphical interfaces and user-friendly control panels can be designed.

3.5 Inch ESP32 HMI TFT LCD Touch Screen - With Case Technical Specifications:

• Screen Size: 3.5 Inch

• Resolution: 320 x 480 pixels

• Display Type: TFT LCD

• Touch Type: Resistive Touch Panel

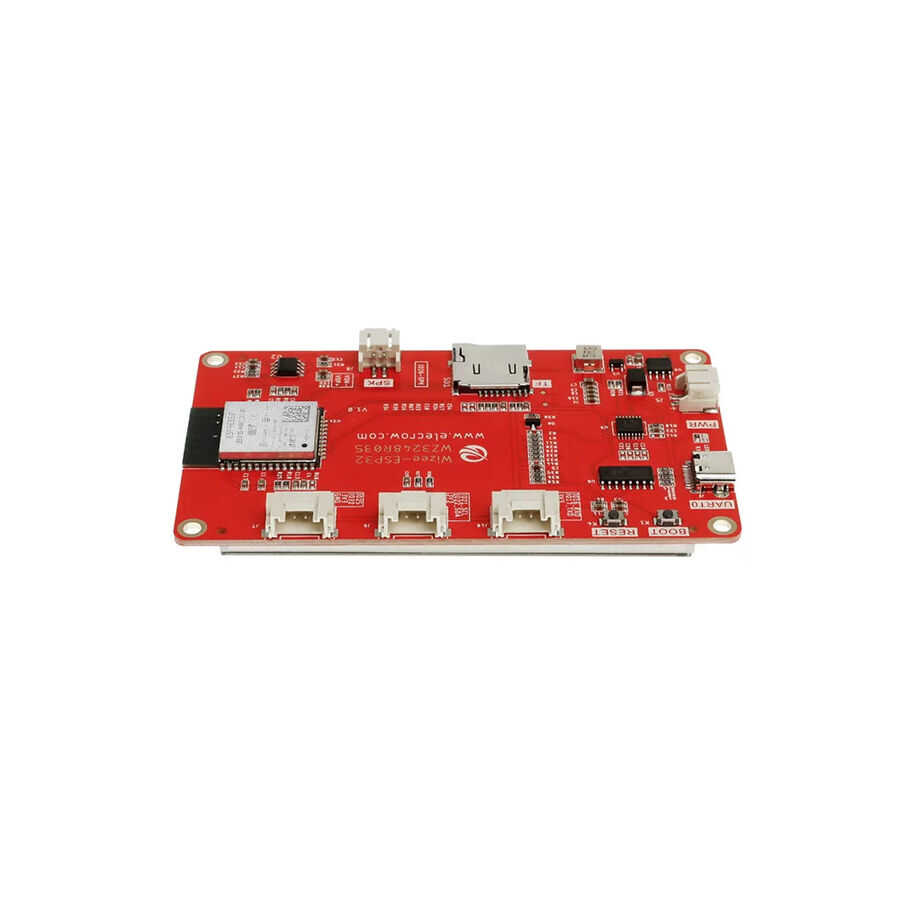

• Main Processor: ESP32-WROOM-32 (Dual-Core)

• Processor Frequency: 240 MHz

• Flash Memory: 4 MB

• SRAM: 520 KB

• ROM: 448 KB

• Wireless Connectivity: 2.4 GHz Wi-Fi (802.11 b/g/n) + Bluetooth

• Display Driver: ILI9488

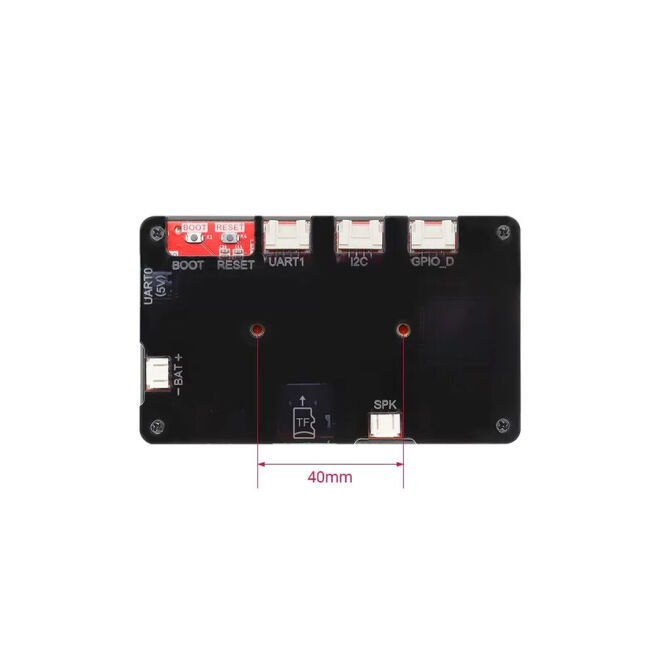

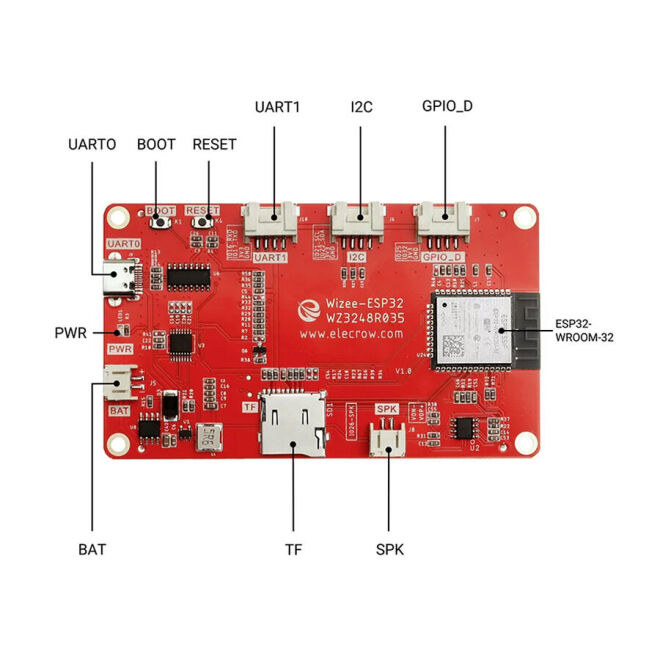

• Interfaces: 1x UART0, 1x UART1, 1x I2C, 1x SPI, Multiple GPIO

• TF (MicroSD) Card Slot: Yes

• Speaker Jack: Yes

• Programming: Via USB Type-C

• Buttons: Boot Button, Reset Button

• Supply Voltage: 5V DC (USB)

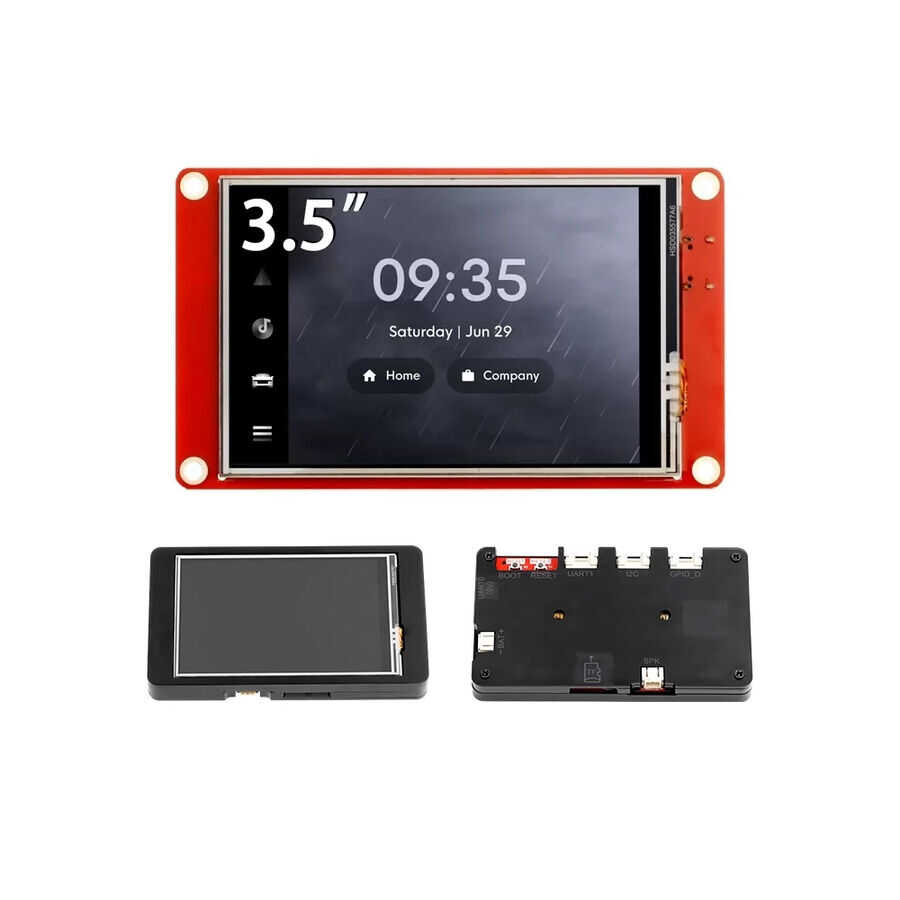

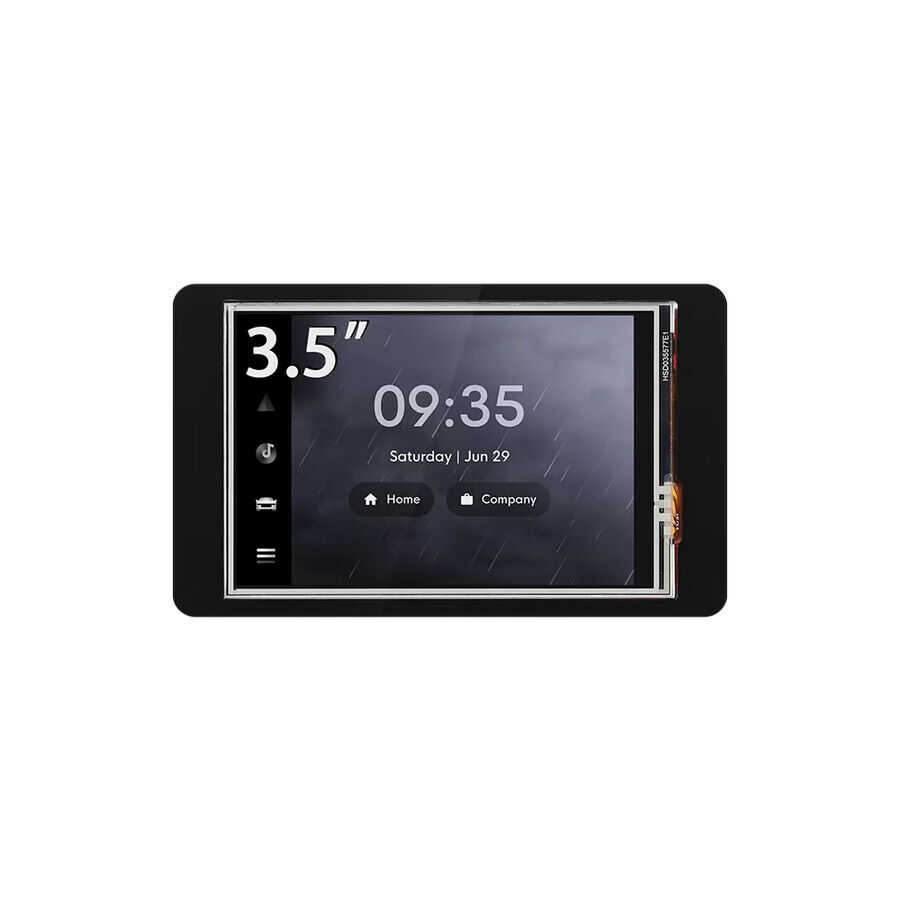

• Case: Integrated protective enclosure

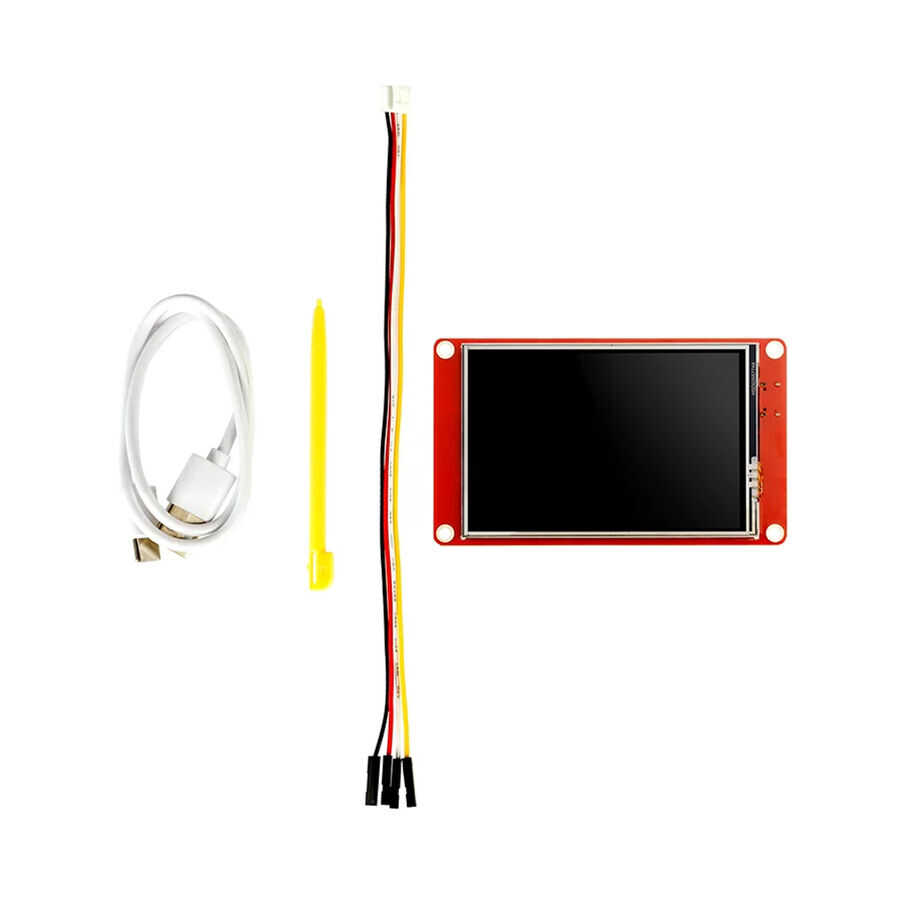

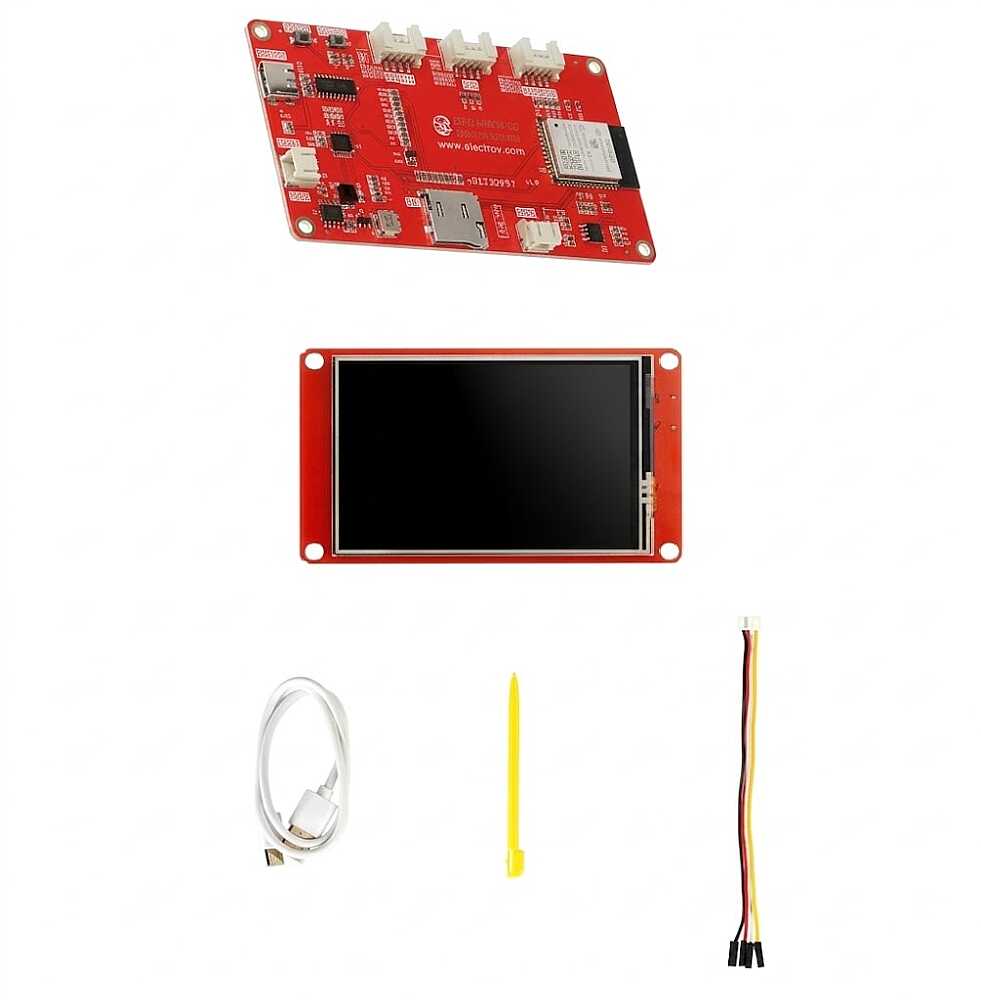

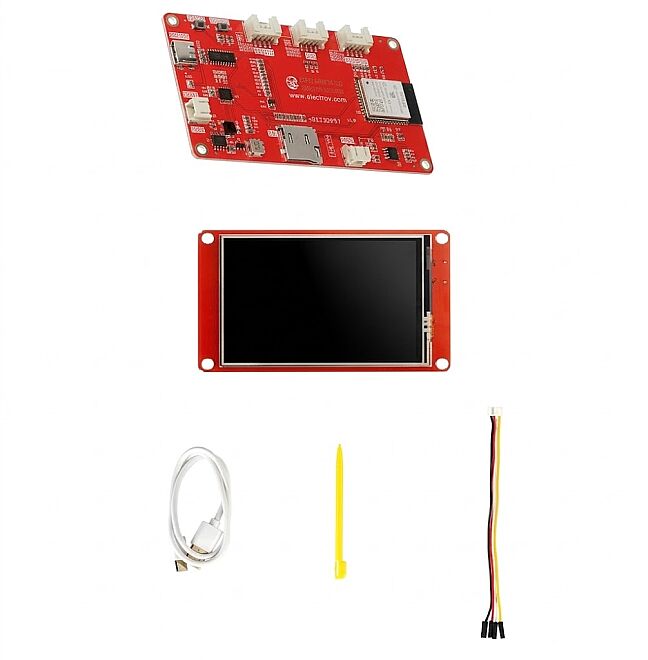

Package Contents:

• 1 x 3.5 Inch ESP32 HMI TFT LCD Touch Screen (With Case)

• 1 x USB-A to USB Type-C Cable

• 1 x Touch Pen
