2.8 Inch ESP32 HMI TFT LCD Touch Screen - With Case

2.8 Inch ESP32 HMI TFT LCD Touch Screen - With Case

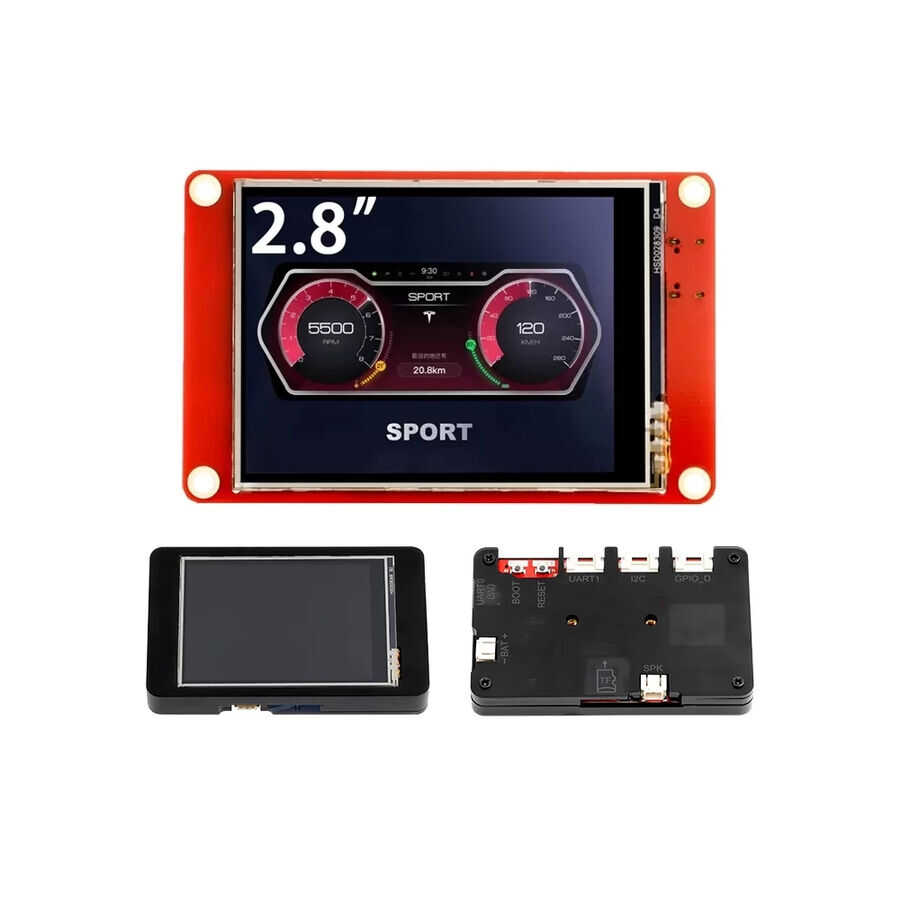

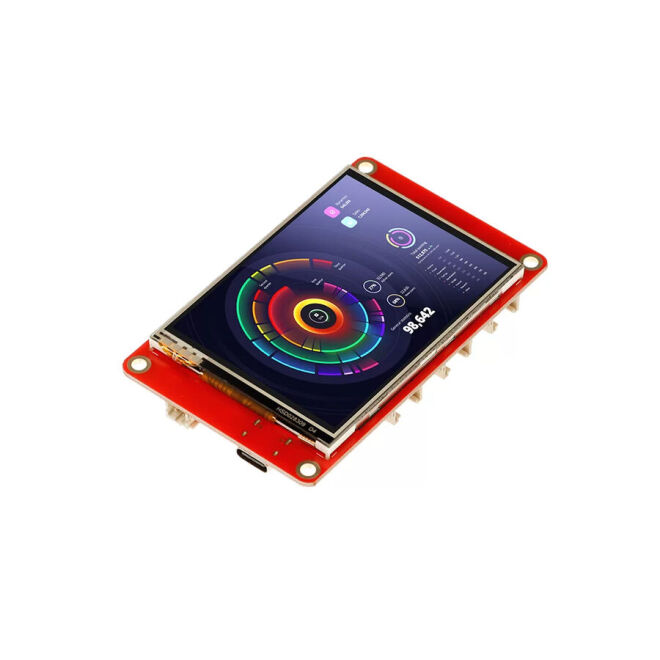

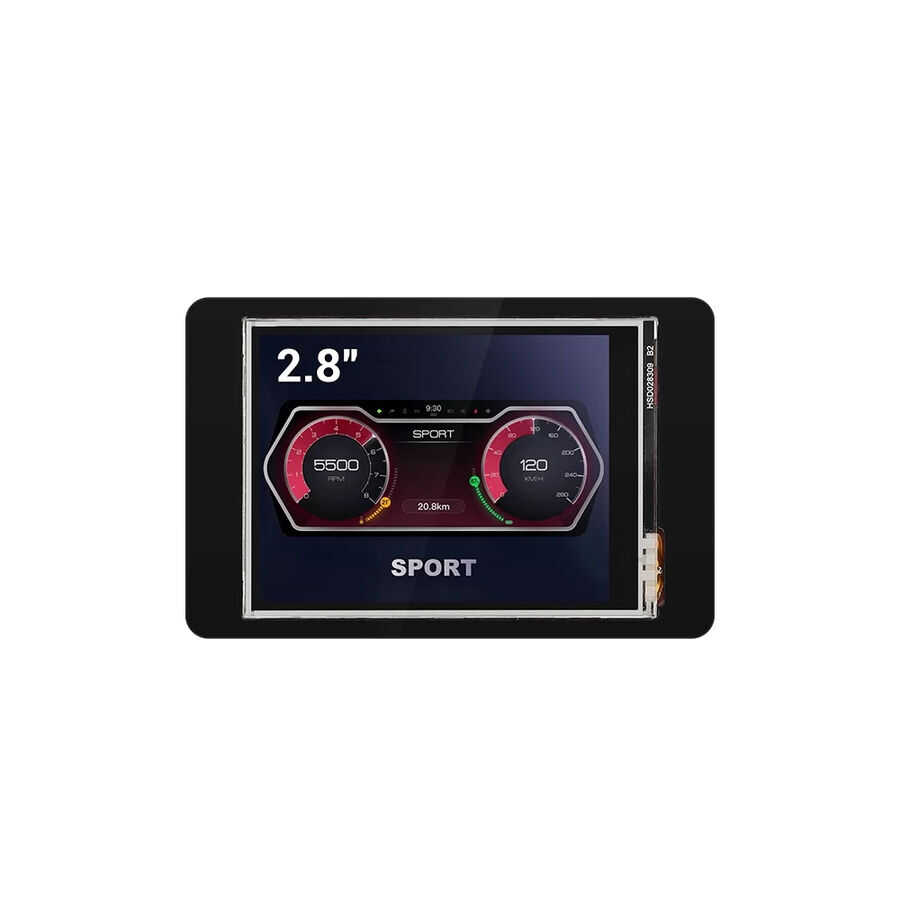

The 2.8 Inch ESP32 HMI TFT LCD Touch Screen is a powerful and compact human-machine interface (HMI) solution featuring a 240x320 pixel resolution SPI TFT display and an integrated ESP32-WROOM-32 module. Thanks to its resistive touch panel, it provides precise and stable touch control. Its enclosed case design offers mechanical protection while delivering a professional and aesthetic appearance for your projects.

Powered by a dual-core 240 MHz ESP32 processor with Wi-Fi and Bluetooth connectivity, this module is ideal for IoT applications, smart home systems, industrial automation panels, data monitoring, and control interfaces. The SPI TFT LCD display and touch functionality make it easy to develop user-friendly graphical interfaces.

2.8 Inch ESP32 HMI TFT LCD Touch Screen - With Case Technical Specifications:

• Screen Size: 2.8 Inch

• Resolution: 240 x 320 pixels (QVGA)

• Display Type: TFT LCD

• Touch Type: Resistive Touch Panel

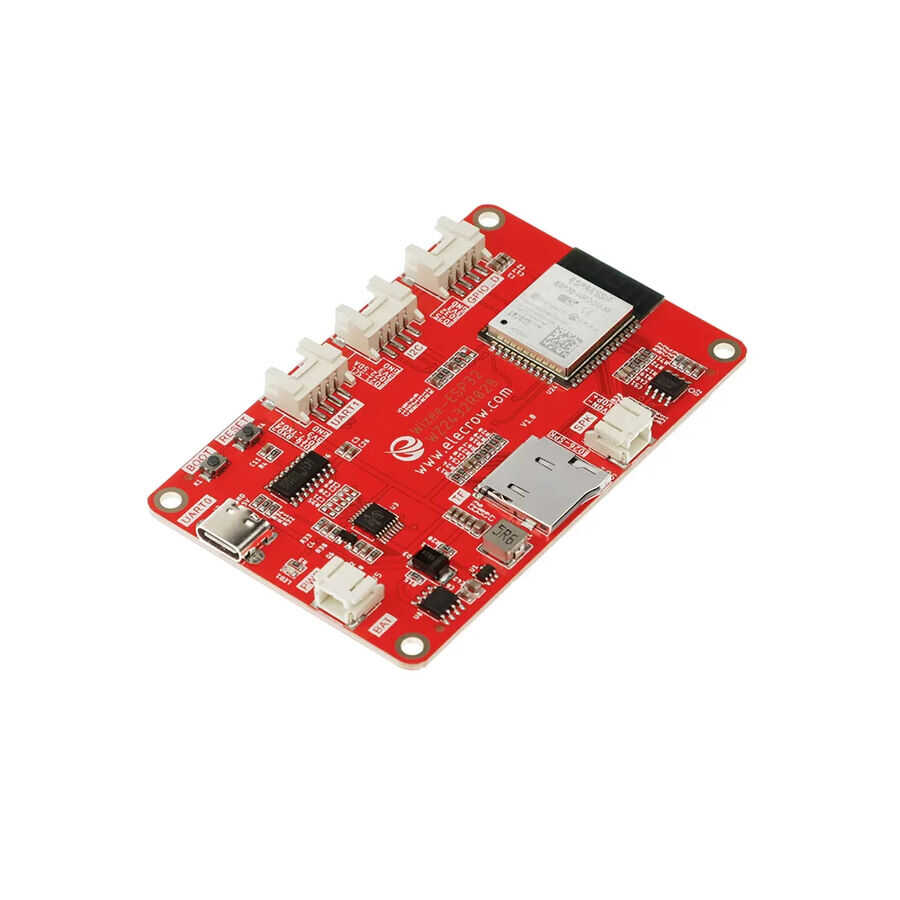

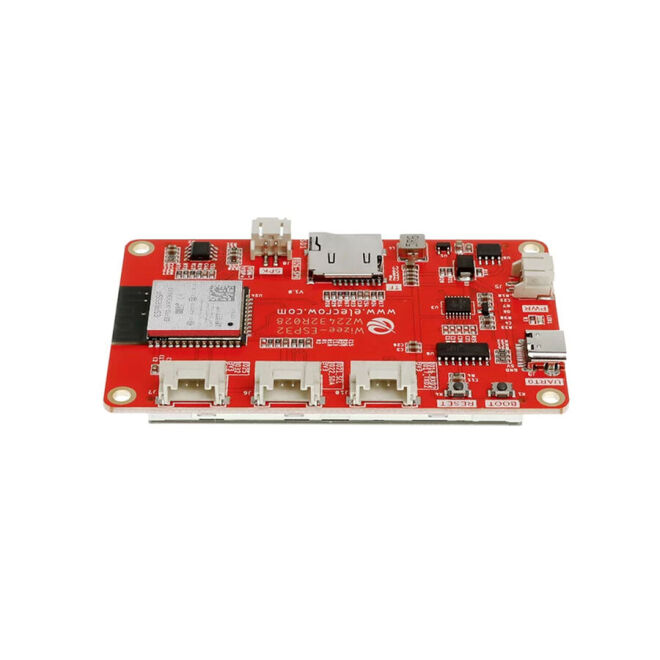

• Main Processor: ESP32-WROOM-32 (Dual-Core)

• Processor Frequency: 240 MHz

• Flash Memory: 4 MB

• SRAM: 520 KB

• ROM: 448 KB

• Wireless Connectivity: 2.4 GHz Wi-Fi (802.11 b/g/n) + Bluetooth

• Display Driver: ILI9341

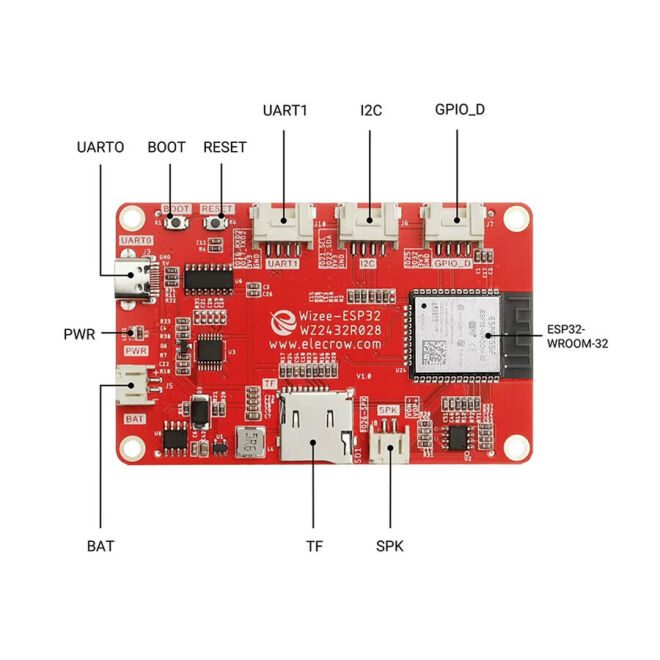

• Interfaces: 1x UART0, 1x UART1, 1x I2C, 1x SPI, Multiple GPIO

• TF (MicroSD) Card Support: Yes

• Speaker Output: Yes

• Programming: Via USB Type-C

• Buttons: Boot Button, Reset Button

• Supply Voltage: 5V DC (USB)

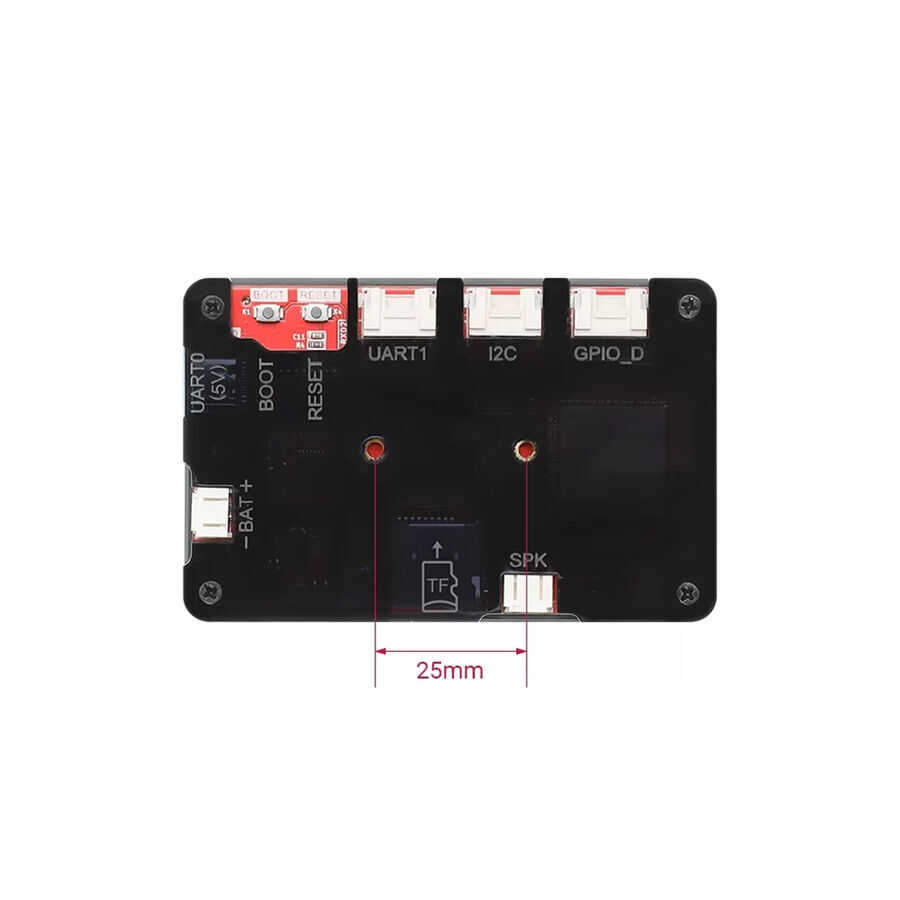

• Case: Integrated protective enclosure

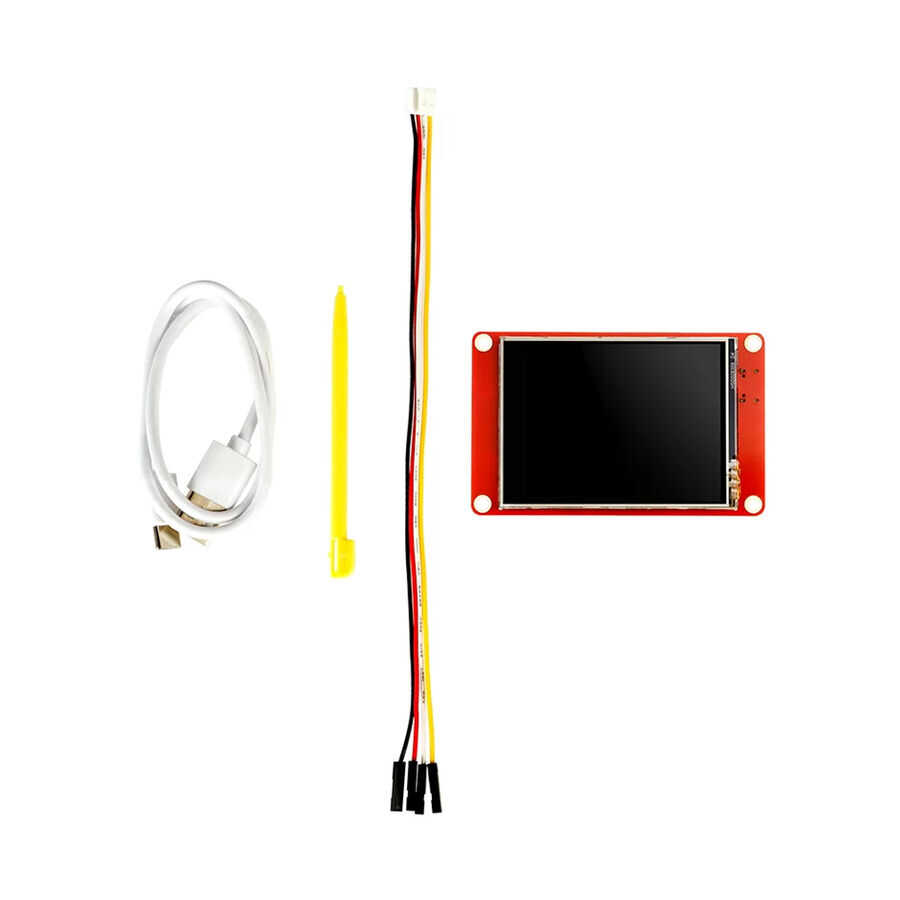

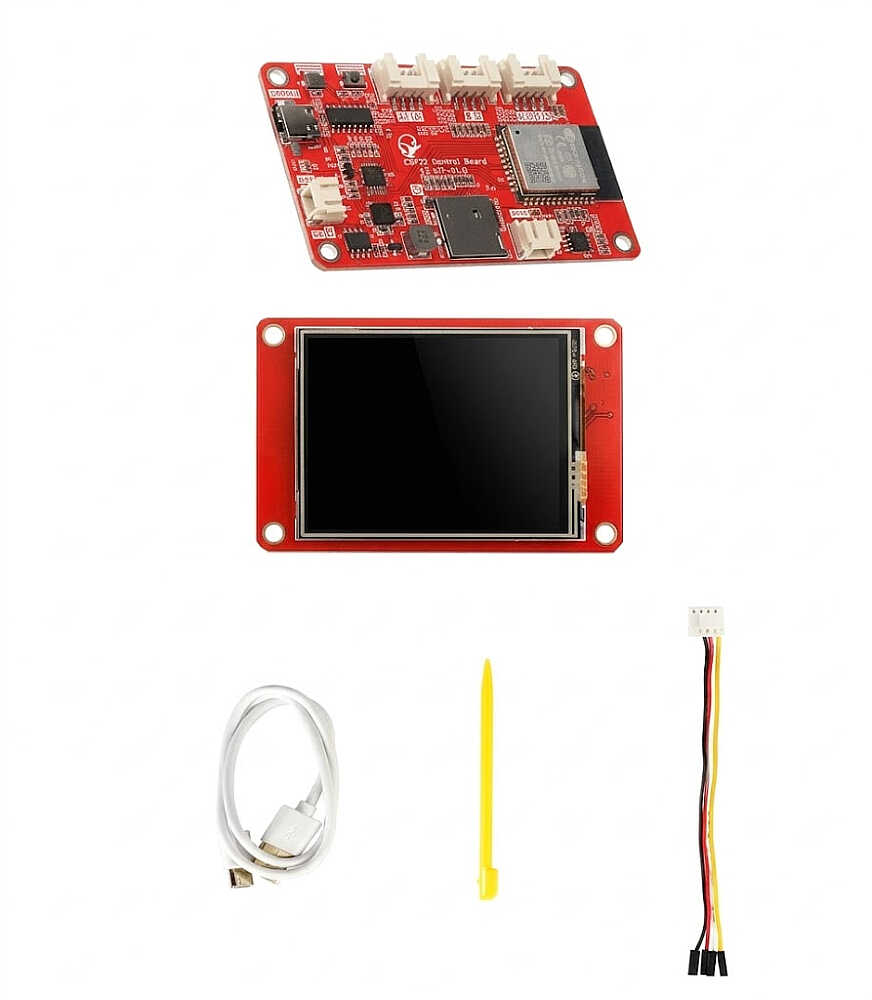

Package Contents:

• 1 x 2.8 Inch ESP32 HMI TFT LCD Touch Screen (With Case)

• 1 x USB-A to USB Type-C Cable

• 1 x Touch Pen
