2.4 Inch ESP32 HMI TFT LCD Touch Screen - With Case

2.4 Inch ESP32 HMI TFT LCD Touch Screen - With Case

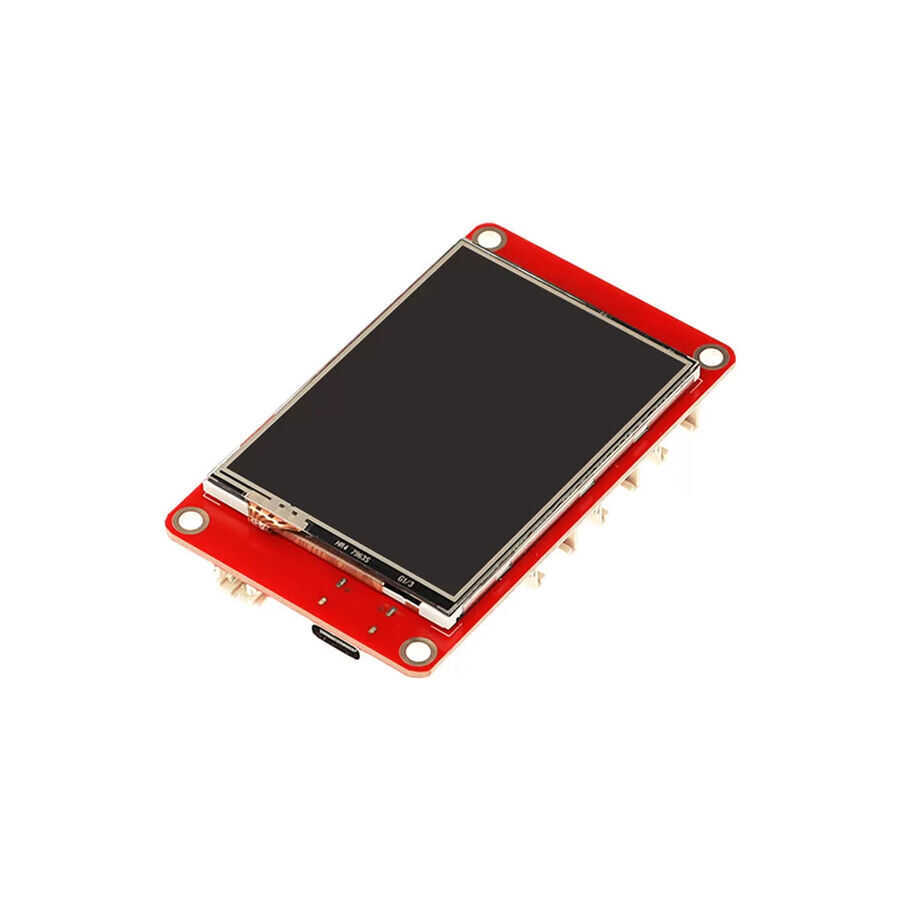

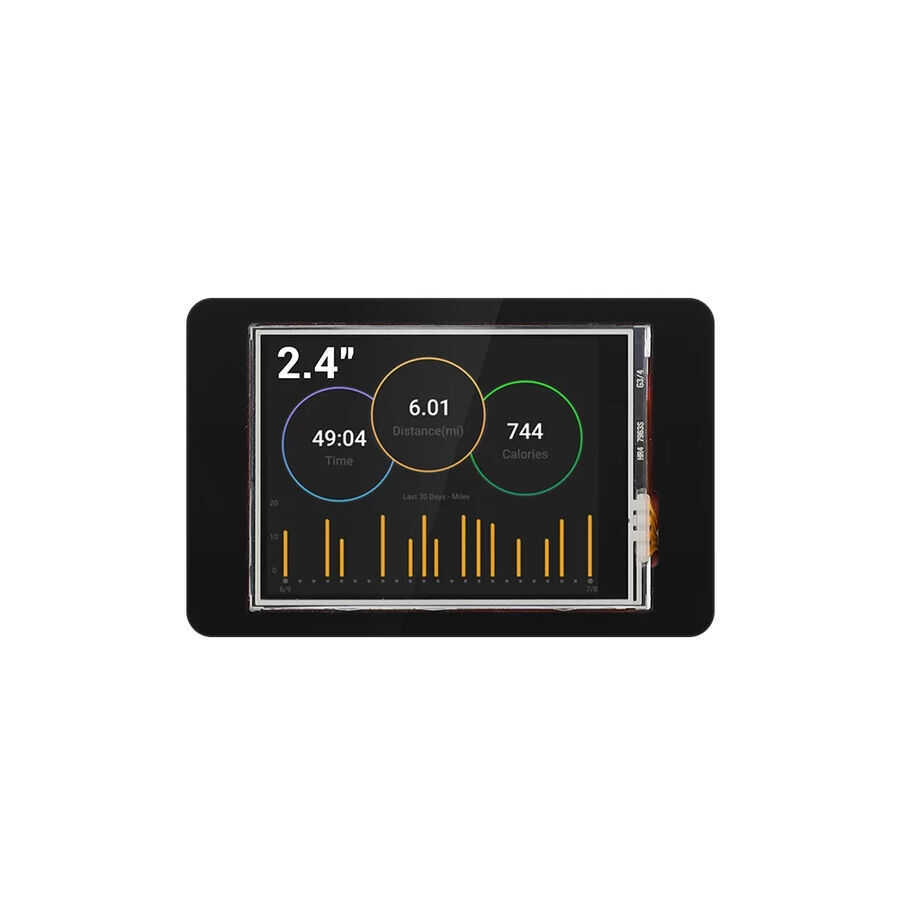

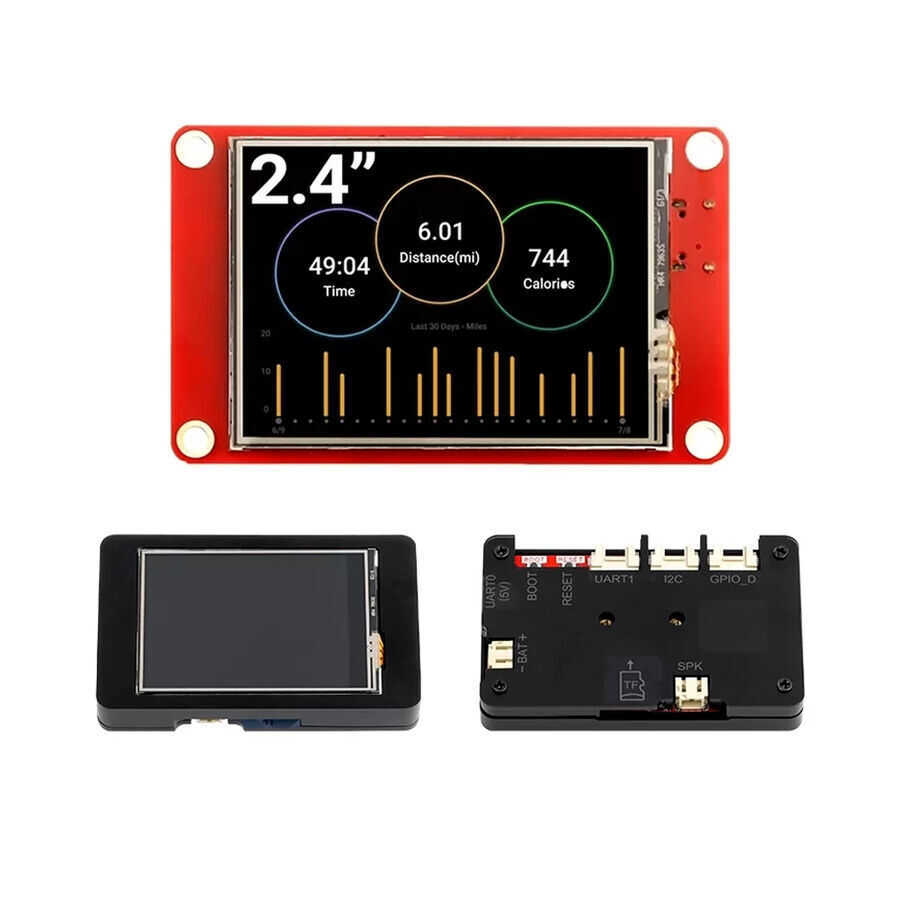

The 2.4 Inch ESP32 HMI TFT LCD Touch Screen is a powerful and compact human-machine interface (HMI) solution featuring a 240x320 resolution SPI TFT display and an integrated ESP32-WROOM-32 module. Thanks to its resistive touch panel, it provides precise and reliable touch control. With its protective case design, the product offers both aesthetic appearance and durable use in your projects.

With the dual-core 240 MHz processing power of the ESP32, along with Wi-Fi and Bluetooth connectivity support, it is an ideal solution for IoT projects, smart control panels, industrial automation systems, data monitoring displays, and custom interface designs. The SPI TFT LCD screen and touch functionality allow easy development of user-friendly graphical interfaces.

2.4 Inch ESP32 HMI TFT LCD Touch Screen - With Case Technical Specifications:

• Screen Size: 2.4 Inch

• Resolution: 240 x 320 pixels (QVGA)

• Display Type: TFT LCD

• Touch Type: Resistive Touch Panel

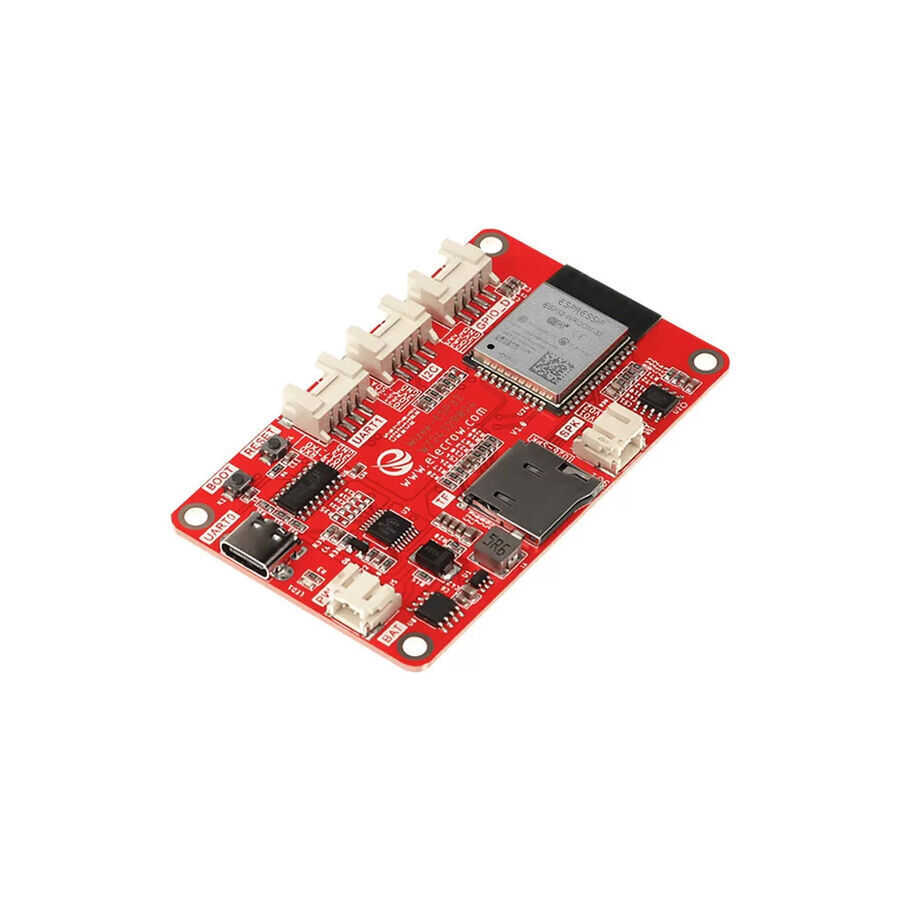

• Main Processor: ESP32-WROOM-32 (Dual-Core)

• Processor Frequency: 240 MHz

• Flash Memory: 4 MB

• SRAM: 520 KB

• ROM: 448 KB

• Wireless Connectivity: 2.4 GHz Wi-Fi (802.11 b/g/n) + Bluetooth

• Display Driver: ILI9341

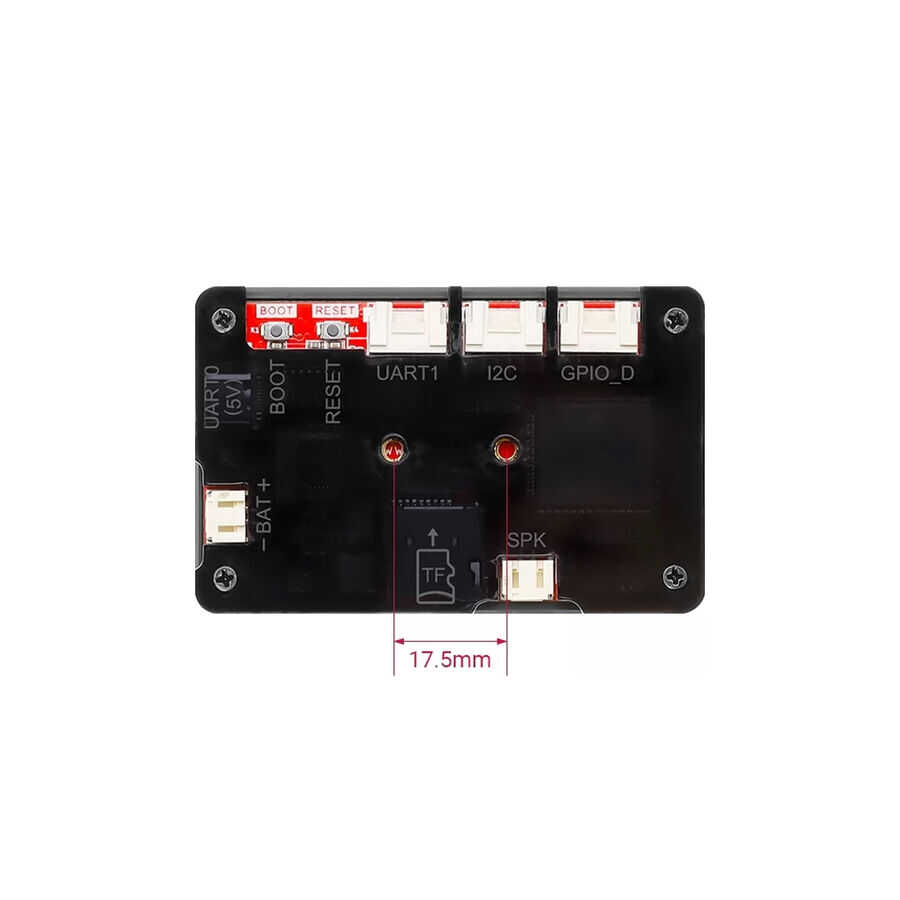

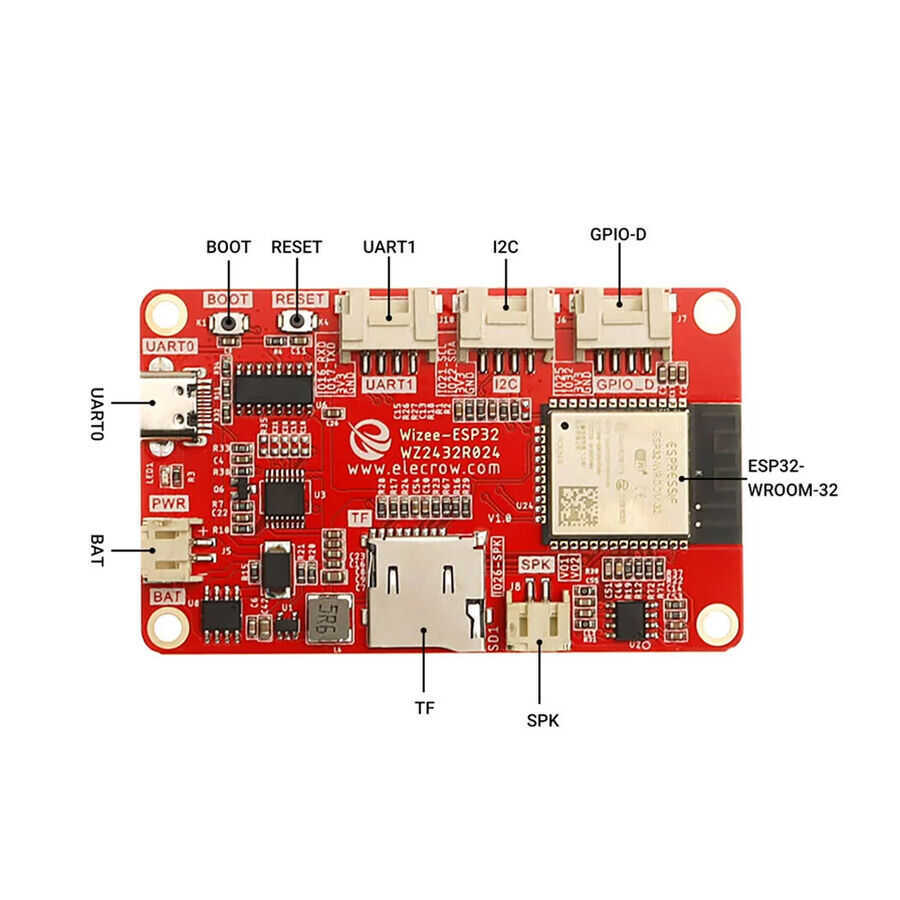

• Interfaces: 1x UART0, 1x UART1, 1x I2C, 1x SPI, Multiple GPIO

• TF (MicroSD) Card Support: Yes

• Speaker Jack: Yes

• Programming: Via USB (Type-C)

• Buttons: Boot Button, Reset Button

• Active Area Size: 36.72 x 48.96 mm

• Supply Voltage: 5V (USB Type-C)

• Case: Integrated protective enclosure

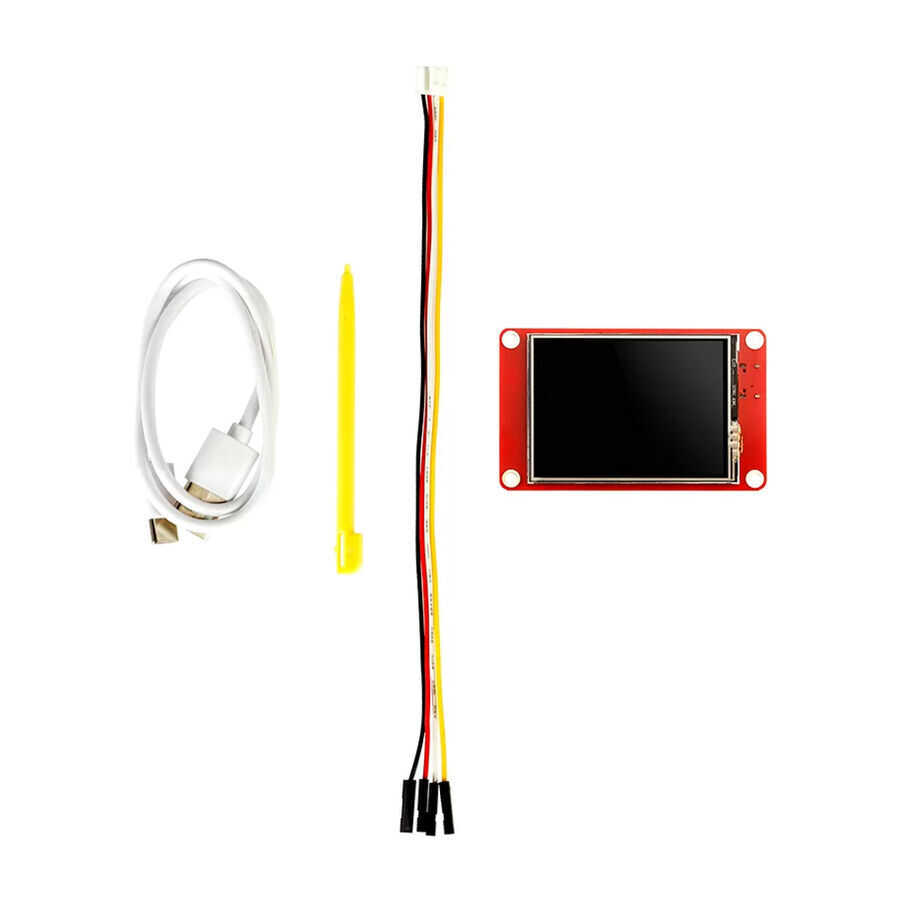

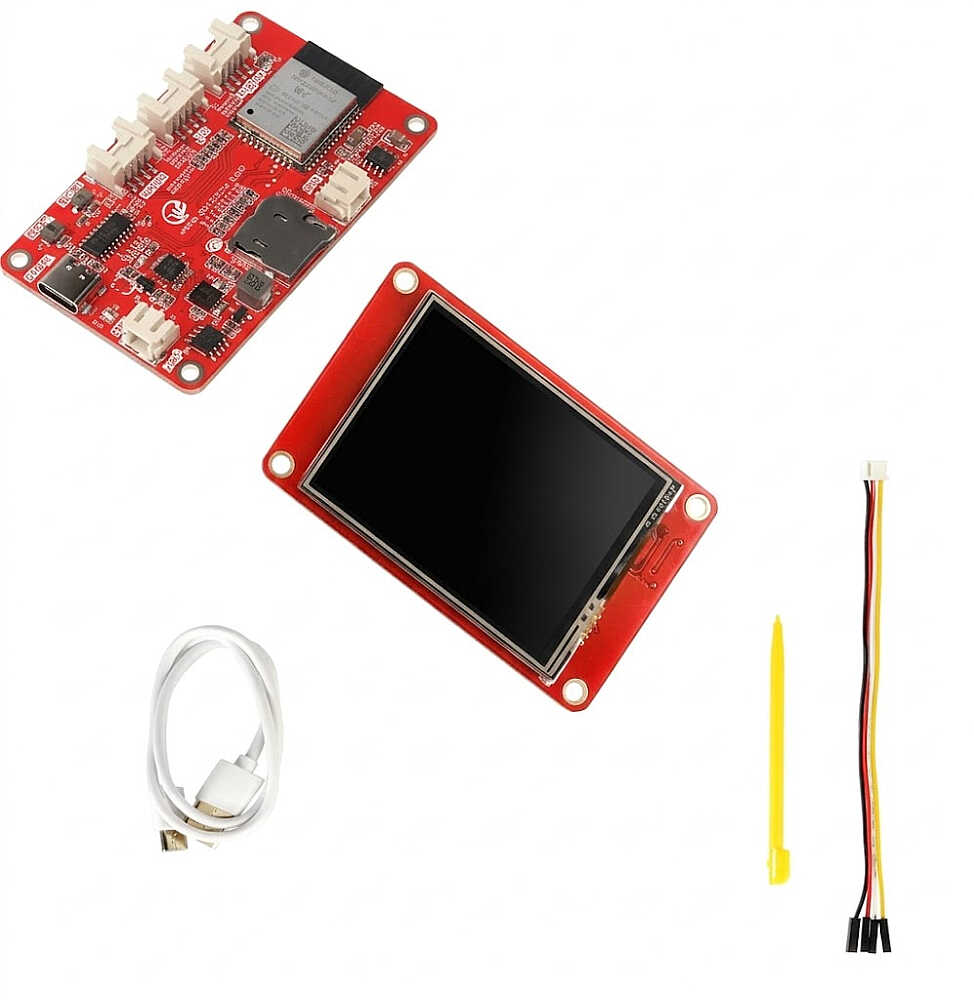

Package Contents:

• 1 x 2.4 Inch ESP32 HMI TFT LCD Touch Screen (With Case)

• 1 x USB-A to USB Type-C Cable

• 1 x Touch Pen
