12 A 2S-4S Emax Simon Series ESC

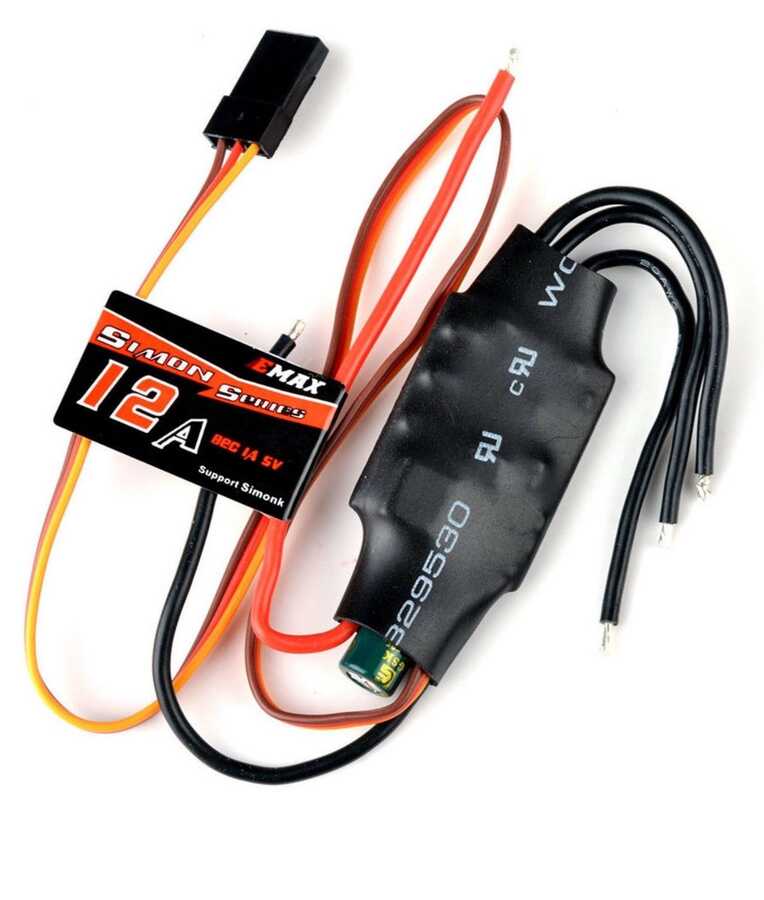

EMAX 12A SimonK Series ESC Brushless Motor Controller Module

This is a brushless motor controller (ESC) specially designed to be used in drone applications. It can provide up to 12A continuously and 25A for 10 seconds. It also has a linear BEC (voltage regulator) circuit to power your flight controller and/or RC remote providing 5V 1A output. It has the special designed SimonK software to be compatible with flight controllers. It has a separate regulator to power MCU inside it and also has a overheating protection.

EMAX 12A SimonK Series ESC Brushless Motor Controller Module Technical Specifications:

• Output (continuous): 12A
• Output (10 sec max.): 25A
• Input voltage: 2-3S Li-Po (7.4-12.6V)
• BEC: Linear, 5V 1A
• Dimensions: 24mm x 18mm x 7mm
• Weight: 28g

Documents and Useful Links:

• User manual
