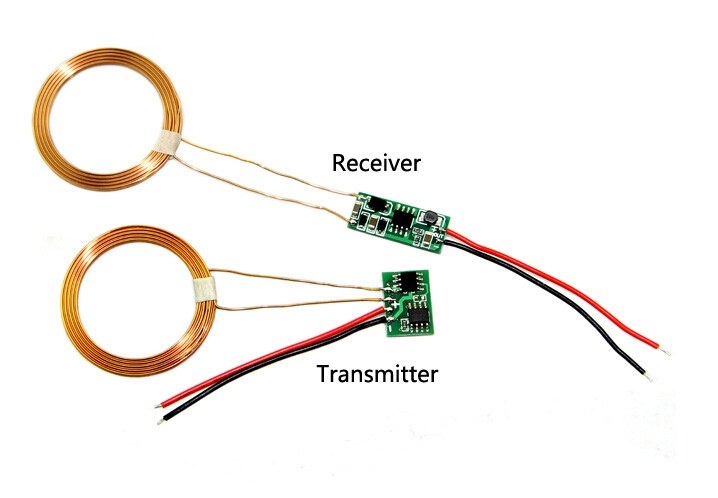

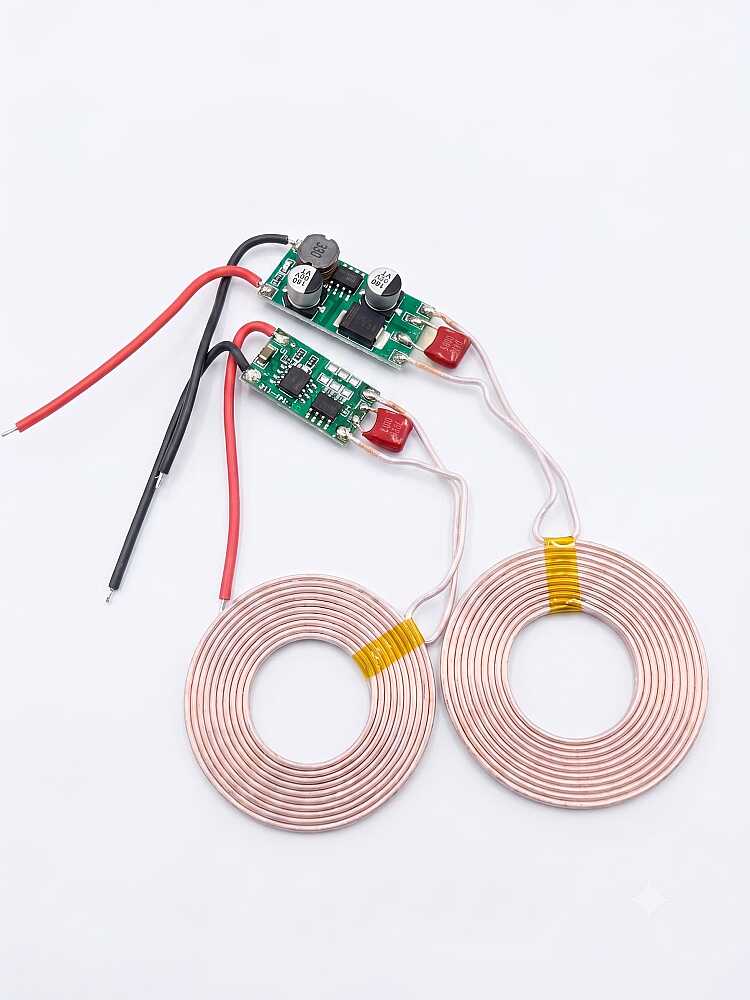

XKT-408 Wireless Charge Module (5V/500mA)

XKT-408 Kablosuz Şarj Modülü (5V/500mA)

Through this module, you can supply or chrage your electronic devices wirelessly. Provides max 0.5A at 5V.

Features:

• Input Voltage: 5-12V DC
• Output Voltage: 05V DC
• Output Current: 0,5A maksimum, 90 mA no load

• Transmitter bobbin inductance: 3.7 uH
• Receiver bobbin inductance: 14 uH
• Transfer distant: 2-10 mm
• Transmitter dimensions:: 17mm x 12 mm x 4 mm
• Receiver dimensions: 24.2 mm x 9.8 mm x 5.36 mm
• Bobbin diameter: 38 mm
• Bobbin width: 1.8 mm
