Xbee 3 Pro Module - RP-SMA Antenna

Xbee 3 Pro Module - RP-SMA Antenna

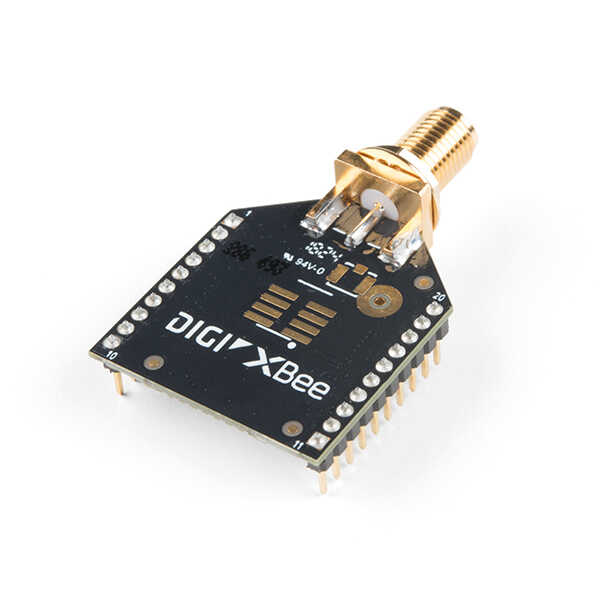

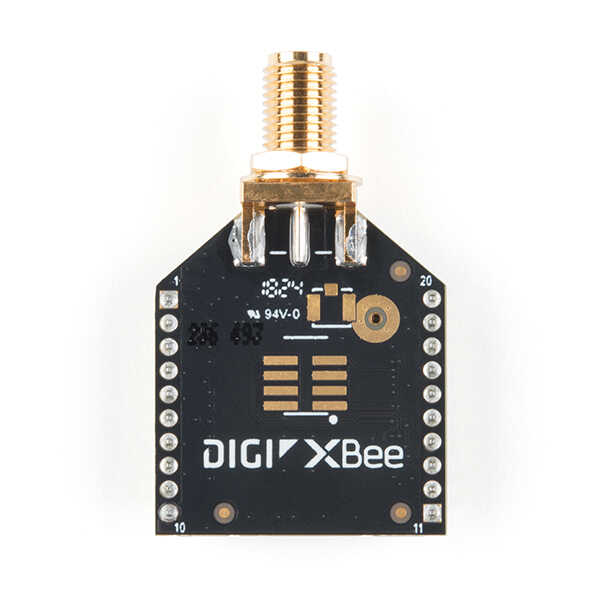

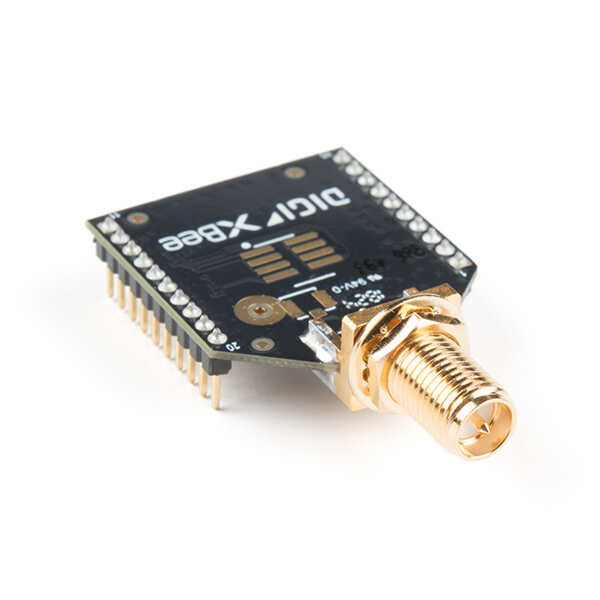

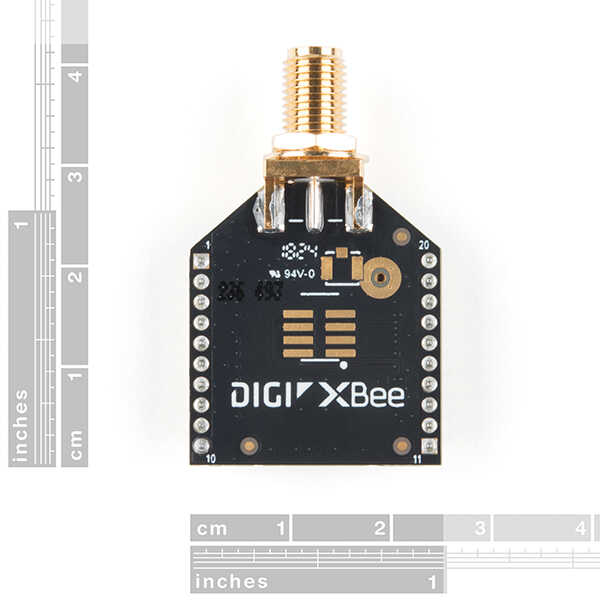

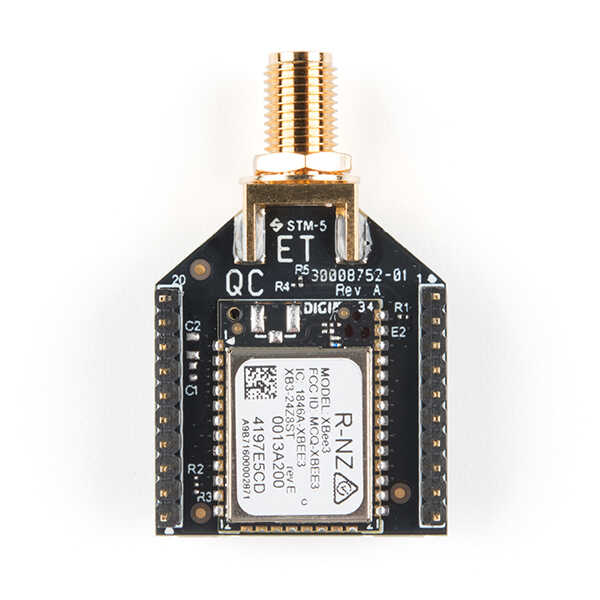

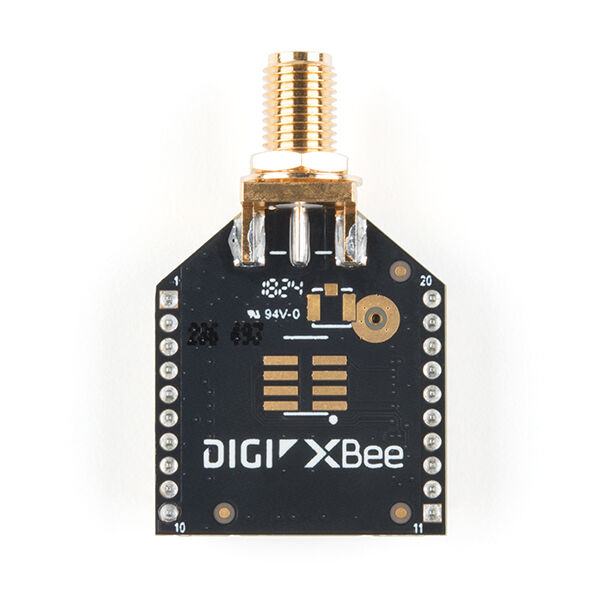

You can communicate with Xbee 3 Pro modules that support 802.15.4, Zigbee and BLE protocols via UART or SPI. You can create your own network or use it in your projects with the Xbee 3 Pro module, which offers an indoor range of 91.44 meters and an outdoor range of 3218.688 meters. The Xbee 3 Pro module has an RP-SMA connector so you can attach an external antenna. You can also program it with MicroPython or XCTU thanks to the built-in microcontroller.

Technical Specifications:

• RF 250Kbps, Serial 1Mbps
• 200ft (indoor) to 2 mile(outdoor) range
• Transmit power +19dBM @ 135mA
• Receiver Sensitivity -103dBm @ 15mA
• 4x 10-bit ADC inputs
• 15x Digital I/O pins
• HCS08 CPU at up to 50.33MHz
• 118/256 bit AES Encryption
• 2.1V to 3.6V operating voltage
• 1.7 μA power-down current
• Built in RS-485 support
• AT command or API frame support
• FCC Certified

Useful Links:

• Datasheet
• 802.15.4 Firmware
• DigiMesh Firmware
• Zigbee Firmware
• Migration Guide
• MicroPython Programming Guide
• Xbee Python Library
• XCTU User Guide
