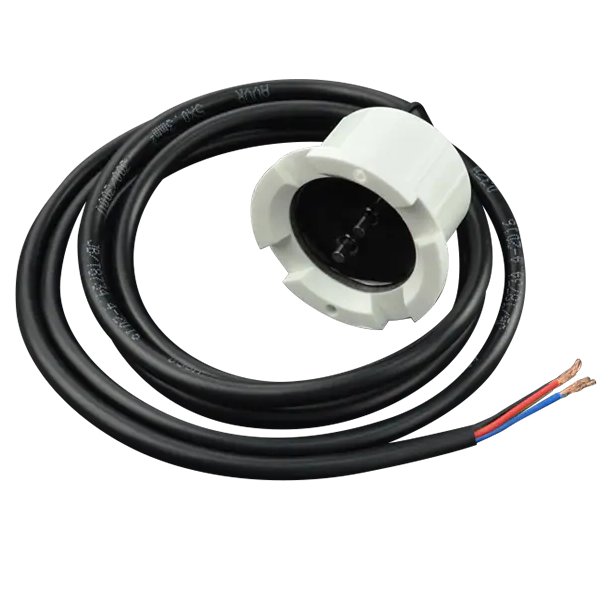

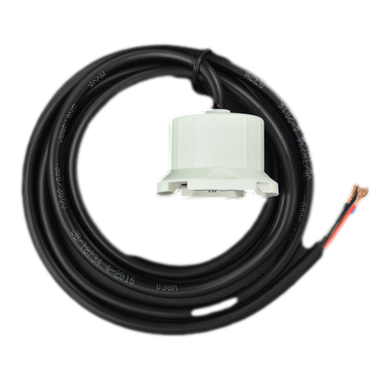

Water Leak Detector

Water Leak Detector

Based on the integrated design of NO/NC, this water leak sensor aims to detect water leakage. When the sensor is normally open and the water touches the two probes, the relay uses the output signal, the built-in relay is triggered. When it is normally closed and the water level is lower than the two probes, the built-in relay is triggered. Then the alarm system will be activated or the equipment in the house will be turned off. The potential energy of the control circuit in this water leak detector is very low. Therefore, it provides safe use. This sensor can be widely used in kitchens, hotels, base stations and factory warehouses. It is preferred because of its low false alarm rate and dustproof cover.

Water Leak Detector Technical Specifications:

• Process Media: Water
• Working Current: ＜30mA
• Input Voltage: 7-18V
• Response Time:＜50ms
• Operating Temperature: - 10℃ - 60℃
• Protection Level: IP66
• Size: 47mm x 30mm
• Wiring: Red wire= Power Supply(+), Black Wire= Power Supply(-), Yellow wire= Common, Blue wire= Normally Closed, White Wire= Normally Open
