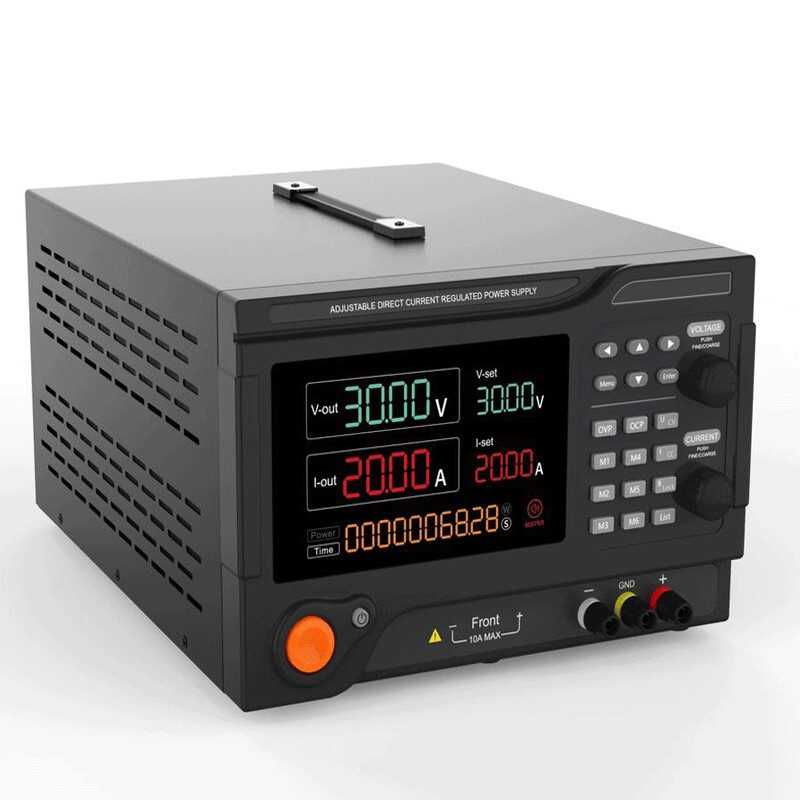

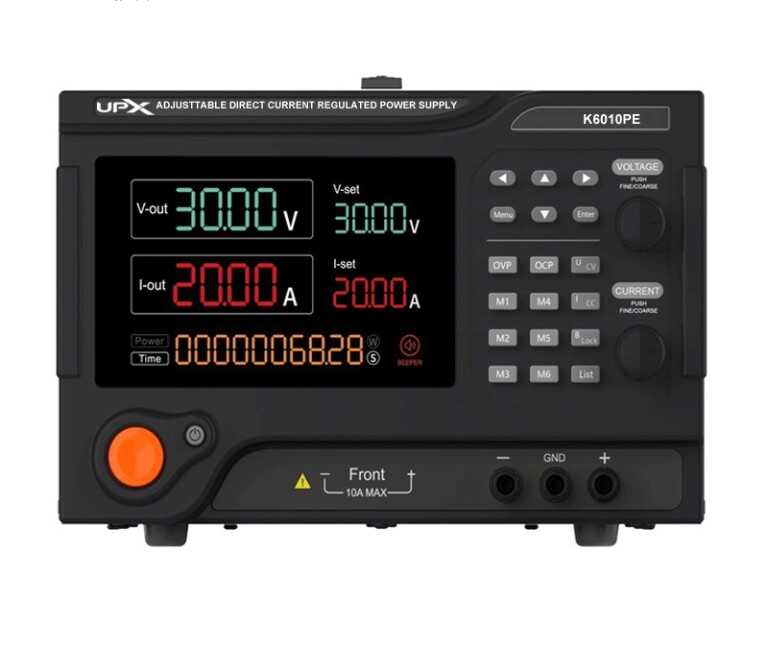

UPX 0-60V 0-10A 10mV 10mA Programmable DC Power Supply

Brand
UPX
Product Code
22268
Fiyat
: 15,961.85 TL + VAT
KDV Dahil Fiyat
: 19,154.22 TL

UPX 0-60V 0-10A 10mV 10mA Programmable DC Power Supply

0-60V 0-10A 10mV 10mA Programmable DC Power Supply, with overload protection and current protection, is a DC power supply with maximum product safety. Thanks to the 4-digit entry, it provides precise access to all data without rounding. In addition, the fan speed works in parallel with the temperature control, so the power supply offers a very quiet operation. Safe use was ensured by being equipped with 4 double protection security systems due to over-voltage, over-current, over-power and over-temperature problems.

UPX 0-60V 0-10A 10mV 10mA Programmable DC Power Supply Application Areas:

  • Electronic Product Assembly
  • Product development
  • Scientific Research Laboratories
  • Electronic Maintenance Products
  • Electric Soldering Process
  • Skills Training and All Kinds of Electronic Organizations



0-60V 0-10A 10mV 10mA Programmable DC Power Supply Technical Specifications:

  • Model: K6010PE
  • Number of Output Channels: 1
  • Voltage Output Range: 0 / 60 V
  • Output Amps Range: 0 / 10 A
  • Working Voltage: AC110V/220V ±10%
  • Power: 600W
  • Frequency: 50Hz/60Hz
  • Operating Relative Humidity: < 80%
  • Storage Relative Humidity: < 80%
  • Display: 4-Digit LED
  • Output Current: Stability: ≤±(0.5%+0.05A)
  • Overload Protection: Available
  • Circuit Protection: Available
  • High Temperature Protection: Available
  • Recovery Time: ≤100uS
  • Temperature Coefficient: ≤200PPM/°C
  • Surge states: ≤1%
  • Programming: Available
  • Load Stability: ≤ 0.5%
  • Load Impact Current: ≤0.1%+5mV
  • Power Impact Current: ≤0.01%+10mA
  • Surge Voltage: ≤1%
  • Surge Current: ≤1%
  • Screen Resolution Voltage: 10 mV
  • Screen Resolution Current: 1 mA
  • Read Back Value Resolution Voltage: 10 mV
  • Read Back Value Resolution Current: 1 mA
  • Storage Temperature: -20 ~ 80°C
  • Ambient Temperature Operation: -5 ~ 40°C
  • Weight: 330(D) x 250(W) x 155(H) mm
  • Size: 5.5kg



0-60V 0-10A 10mV 10mA Programmable DC Power Supply Package Contents:

  • 1 Piece K6010PE Programmable Power Supply 0-30V 0-50A DC
  • 1 Piece Test Probe Opsiyonel
  • 1 Piece AC Power Cord
