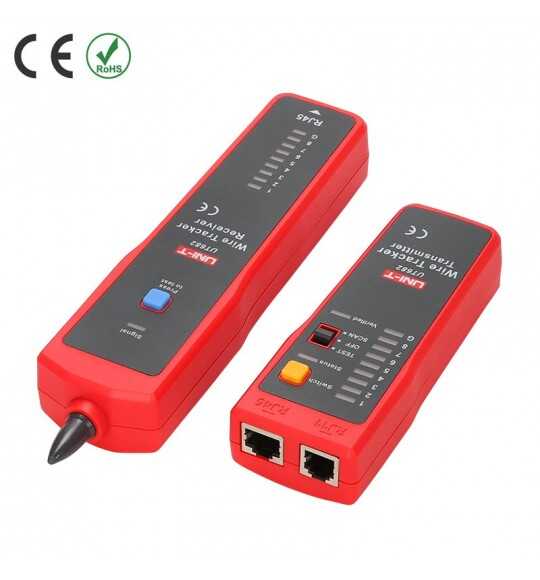

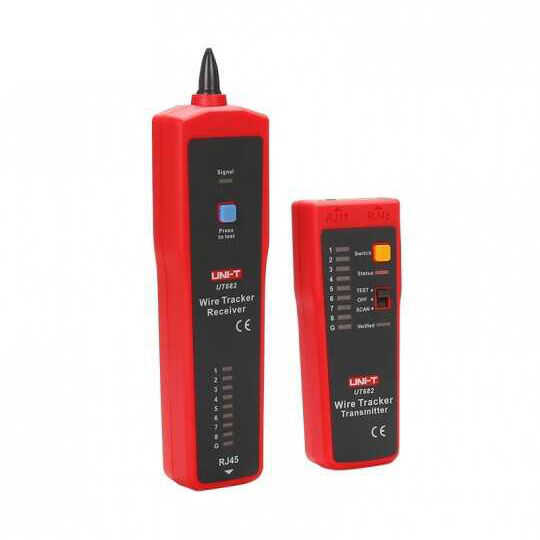

Unit UT682 Cable Finder consists of receiver and transmitter module. With Unit UT 682, you can monitor ethernet, telephone and power cables.
|
Specifications |
Range |
UT682 |
|
|
Wire tracking features |
Wire types |
LAN cable\telephone line\coaxial cable\electric wire |
|
|
Indication light for signal strength |
√ |
||
|
Live switchboard wire tracing |
√ |
||
|
Switchboard wire tracing distance |
≥100m |
||
|
Telephone lines tracking distance |
≥3000m |
||
|
Unshielded cables tracking distance |
≥320m |
||
|
Shielded cables tracking distance |
≥320m |
||
|
Open and short circuit test |
√ |
||
|
Polarity indication for |
DCV function, range: |
√ |
|
|
Telephone lines and LAN cables distinction |
Jacks distinction |
√ |
|
|
Broken wire tracking |
√ |
||
|
Transmitter output voltage |
≥11V peak-peak |
||
|
Transmitter low battery indication |
6.6V±0.5V |
||
|
Transmitter power supply |
9V battery |
√ |
|
|
Max transmitter working current |
25mA |
||
|
Headphone jack for receiver |
√ |
||
|
Receiver power supply |
9V battery |
√ |
|
|
Max receiver standby current |
~10mA |
√ |
|
|
Max receiver operating current |
<40mA (AC, RMS) |
√ |
|
|
Wire alignment |
Line sequence measurement |
9 LEDs (LED1~LED8, LED_G) |
√ |
|
Line sequence measuring speed |
Fast and slow selectable |
√ |
|
|
LAN cable: shielded/unshielded indication |
√ |
||
|
Transmitter input |
|
52V DC |
|
|
Operating environment |
Operating temperature: 0~40℃; Storage temperature: -10~50℃ |
||
|
General Characterisitics |
|||
|
Product color |
Red and grey |
||
|
Product net weight |
Transmitter-115g, receiver-153g |
||
|
Product size |
Transmitter-115mm x 48mm x 28mm, receiver-195mm x 48mm x 30mm |
||
|
Standard accessories |
9V battery x 2, RJ11 cable, RJ45 cable, RJ11 cable with alligator clips |
||
