Unit UT 658B Digital USB Tester

Unit UT 658B Digital USB Tester

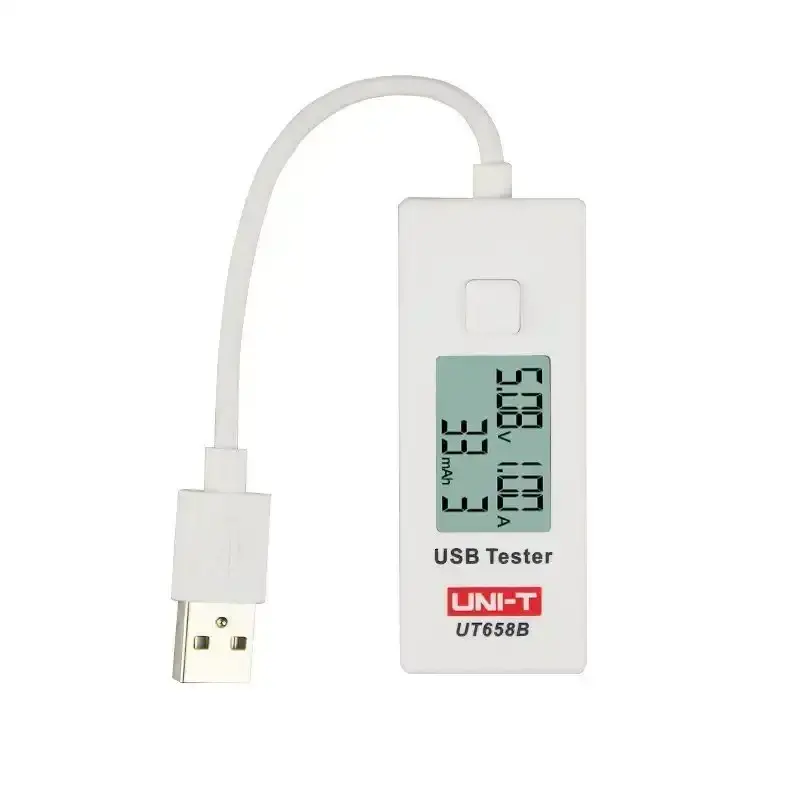

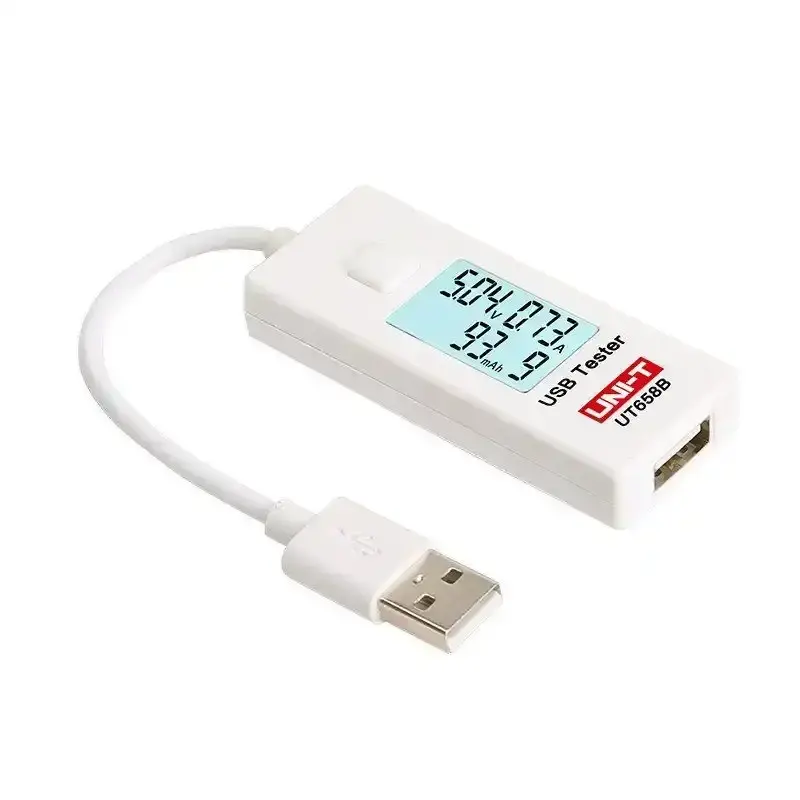

UT658B is a new generation meter designed to monitor charging efficiency and protect charging equipment.Test charging voltage, current and calculate electronic equipment battery capacity.displays USB power supply status, voltage, current, capacity and other indicators at a glance in real time.

Uni-t UT658B Digital USB Tester Features:

• Tests USB connection quality
• Output voltage, current and energy (mAh)
• Test USB cables
• 10 memory sets for energy consumption
• Abnormal voltage alarm test

Applications:

• USB charging quality control
• DIY hobbies
• Power bank evaluation
• USB connector evaluation
• USB device power usage calculation

USB TESTER Technical Specifications:

• Input Voltage Range (V): 3V-9.0V
• Voltage Resolution : 0.01V
• Voltage Monitoring Accuracy: (±1 +5%)
• Current Monitoring Range (A) : 0A-3.5A
• Current Monitoring Accuracy : (±1 +5%)
• Current Resolution : 0.01A
• Capacity : 0-39999mAh
• Capacity Data Storage : 10 Groups
• Display Way : LCD Backlight
• Warning : Less than 4.7V Less than 5.3V
• Operating Temperature : -10℃-40℃
• Storage Temperature : -10℃-50℃
• Relative Humidity : <75%
• Certification : CE, FCC, RoHS

UNIT UT658B Usage:

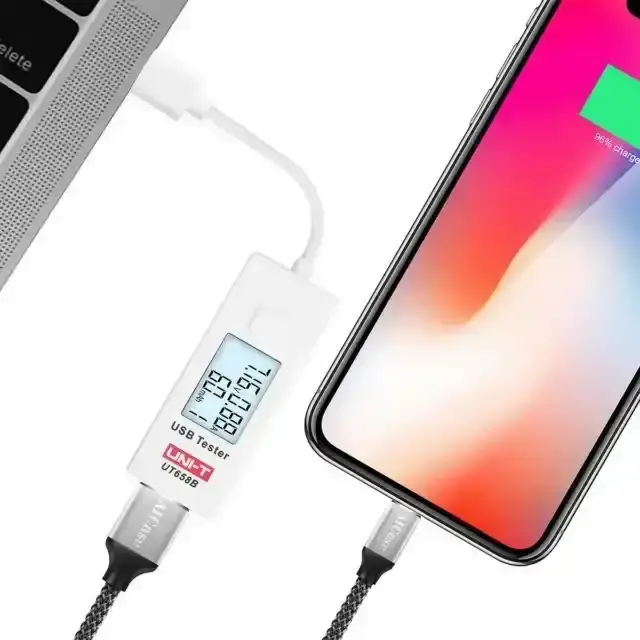

Place the device on a charger or mobile power supply and see if the output voltage is within range. If not, please stop using it immediately. When the voltage is higher than 5.30V or lower than 4.70V (USB is 5V), a warning indicator will appear.

After confirming the output voltage is normal, users can chrge a device by plugging the charging cable into the device.

Short press the button to select one of ten sets for data recording. Press the button for 1.5 seconds to delete the current record.

If necessary, users can replace different charging cables for charging. Observe the displayed current of the USB tester and select the most suitable charging cable (the higher the current, the better the quality.
