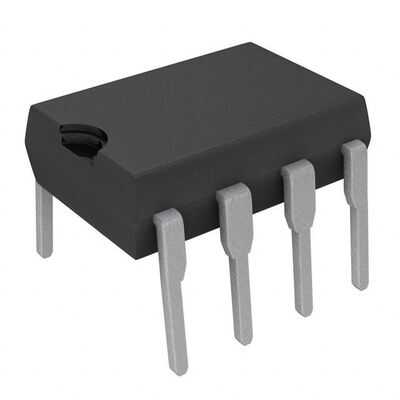

TL3845P DIP8 DC-DC Voltage Control IC

TL3845P DIP8 DC-DC Voltage Control IC

The TL3845P is a PWM controller designed for fixed-frequency current-mode control. It features low startup current (<1 mA), a precision voltage reference, and built-in undervoltage lockout (UVLO), enabling efficient and stable operation. The PWM comparator and latch logic provide current limiting and safe operation. The totem-pole output is ideal for driving N-channel MOSFETs. Its DIP8 package makes it ideal for prototyping.

Technical Specifications:

• Product Name: TL3845P
• Mounting Type: THT
• Package Type: DIP8
• Input Voltage Range: 7.6V - 30V
• Maximum Frequency: 500kHz
• Operating Temperature Range: 0°C - +70°C
• Supply Voltage: 0V - 5.5V
• Output Voltage: 0V - 30V
• Output Current: 1A
• Number of Pins: 8

Similar Products:

• TC/TL/TDA Series ICs
