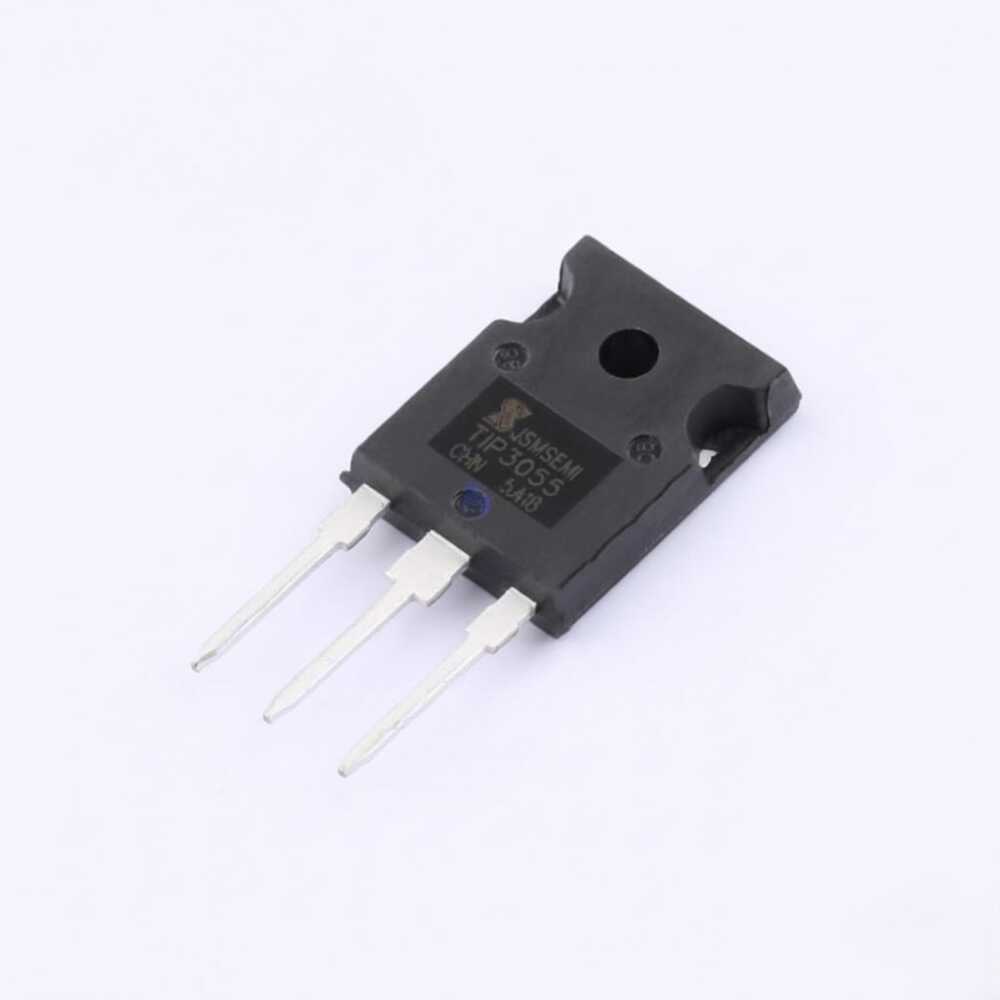

TIP3055 BJT NPN Transistor TO-247

TIP3055 BJT NPN Transistor TO-247

TIP3055 is an NPN-type Bipolar Junction Transistor (BJT) designed for high current and high voltage applications. It is widely used in power electronics circuits, motor drivers, voltage regulators, power amplifiers, and industrial control systems.

With a collector-emitter voltage rating of 60V and a collector current capacity of 15A, it delivers reliable performance in high-power applications. The TO-247 package provides efficient heat dissipation, enabling stable and long-term operation.

TIP3055 Technical Specifications:

• Bipolar Junction Transistor (BJT)

• NPN transistor type

• Collector – Emitter voltage (V_CEO): 60V

• Collector current (I_C): 15A

• Emitter – Base voltage (V_EBO): 7V

• Power dissipation (P_D): 6W

• Transition frequency (f_T): 2.5MHz

• Mounting type: Through Hole (THT)

• Package type: TO-247

Useful Links / Documents:

• Datasheet
• EasyEDA Model
