Tang Nano 9K FPGA Development Board GOWIN GW1NR-9 RISC-V HDMI

Tang Nano 9K FPGA Development Board - GOWIN GW1NR-9 RISC-V HDMI

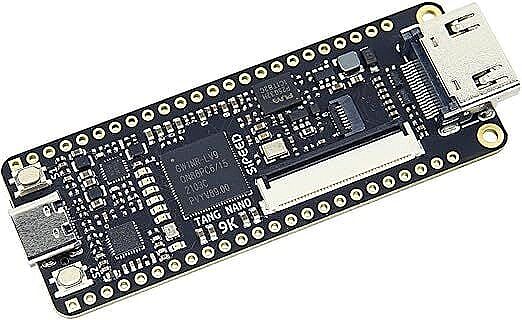

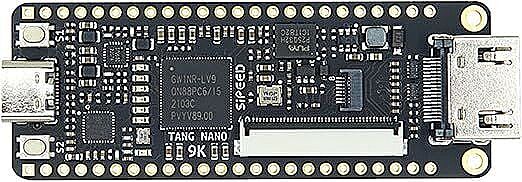

The Tang Nano 9K is a high-performance, compact development board powered by the Gowin GW1NR-9 FPGA chip. Featuring 8640 LUT4 logic units, this board is designed for a variety of applications ranging from basic logic design to running full RISC-V soft-cores such as PicoRV.

Equipped with an onboard HDMI connector, RGB interface, and SPI screen support, the Tang Nano 9K allows users to easily implement video and display-related projects. The integrated USB-C port provides seamless JTAG programming and UART communication via the onboard BL702 debugger, eliminating the need for an external programmer. With 32Mbit SPI Flash and 64Mbit PSRAM, it is an excellent choice for both beginners and professional engineers.

Key Features:

• Gowin GW1NR-9 FPGA: 8640 LUT4 and 6480 Registers for high processing power.
• RISC-V Ready: Ideal for emulating soft-core processors like PicoRV32.
• Advanced Video Output: Onboard HDMI, RGB, and SPI screen interfaces.
• Plug-and-Play Debugging: Built-in JTAG & UART support via USB-C.

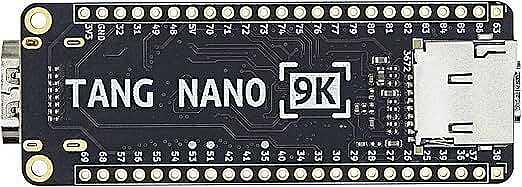

• Expansion Options: Includes TF (MicroSD) card slot and breadboard-friendly 48-pin layout.

Technical Specifications:
