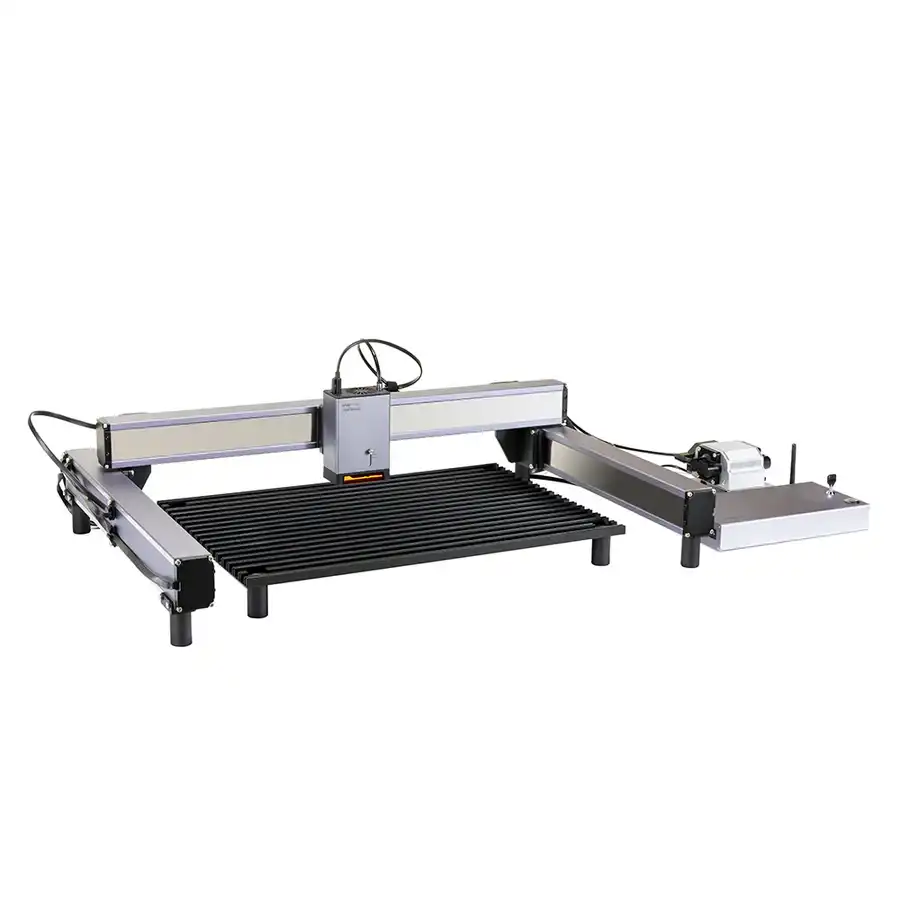

Snapmaker Ray 40W Laser Engraver and Cutter

Snapmaker Ray 40W Laser Engraver and Cutter

The Snapmaker Ray 40W is a professional-grade laser engraver and cutter that combines high-power diode laser technology with a robust mechanical structure and an advanced software ecosystem. With its 40W optical laser power, it enables fast, clean, and deep cutting on materials such as wood, acrylic, leather, fabric, and more, while also delivering high precision for detailed engraving work. It is designed for a wide range of users, from hobbyists to small-scale manufacturers.

The Ray 40W supports engraving speeds of up to 500 mm/s thanks to Snapmaker’s high-precision linear rail system and powerful motors. Its built-in Air Assist system reduces burn marks and smoke residue during cutting, resulting in cleaner edges and more consistent results. With its large working area and modular design, the Ray 40W provides a flexible and efficient workflow even for large-scale projects.

Snapmaker Ray 40W Technical Specifications:

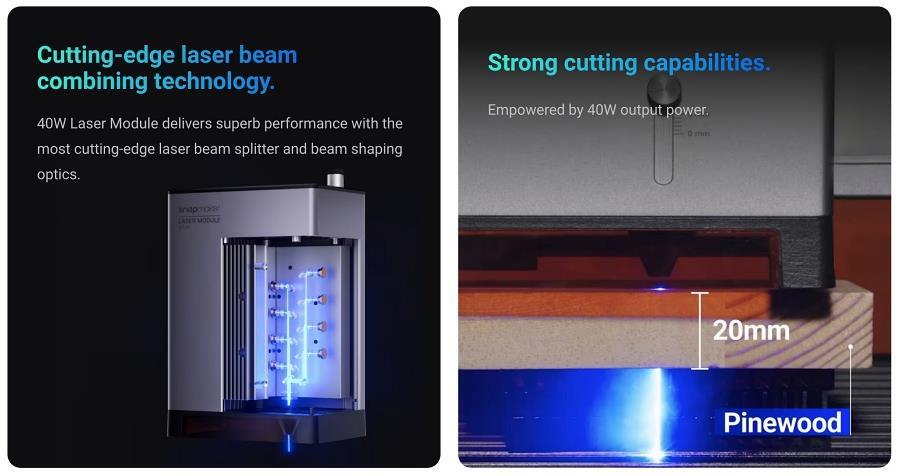

• Laser Power: 40W optical diode laser

• Laser Wavelength: 455 nm

• Maximum Engraving Speed: Up to 500 mm/s

• Working Area: Approx. 400 × 600 mm

• Cutting Capability: Deep single-pass cutting on thick wood and acrylic

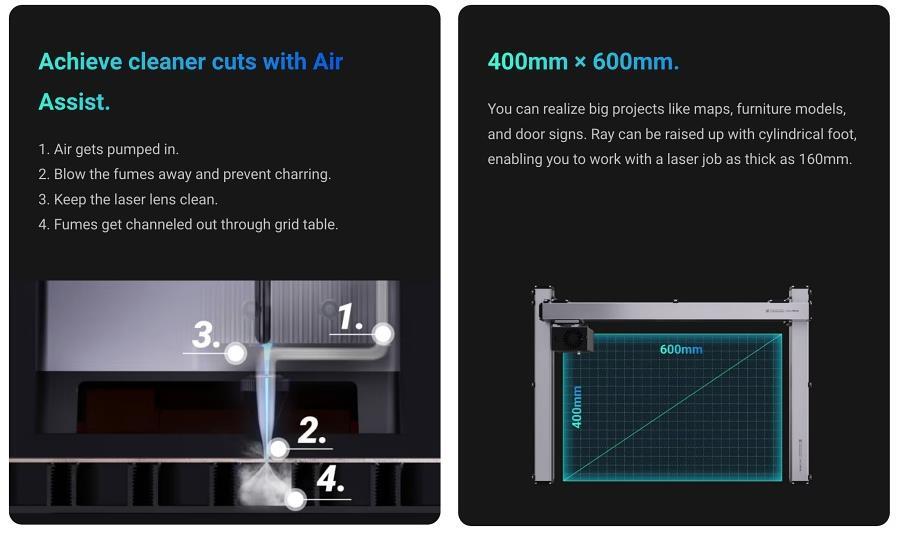

• Air Assist: Built-in air assist system for cleaner cutting edges

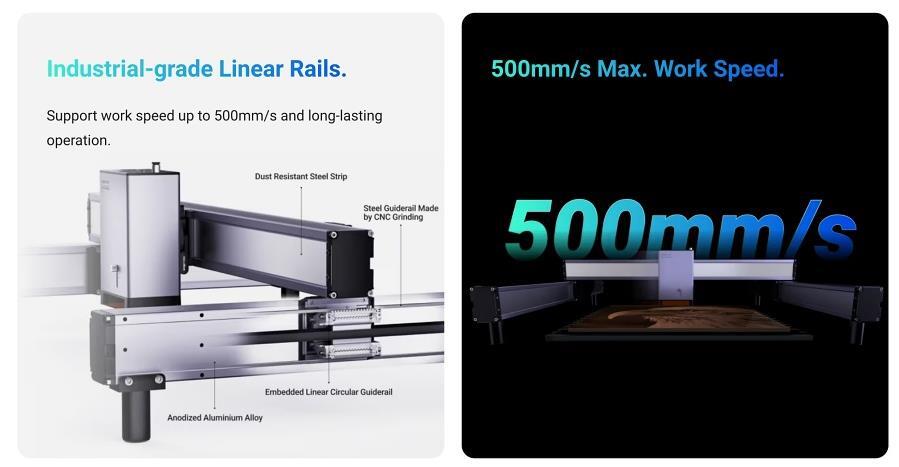

• Mechanical Structure: High-precision linear rails with powerful motors

• Supported Materials: Wood, MDF, leather, fabric, cardboard, black acrylic, anodized metal, coated stainless steel

• Software Support: Snapmaker Luban / Snapmaker Orca / Snapmaker App

• Connectivity: USB, Wi-Fi

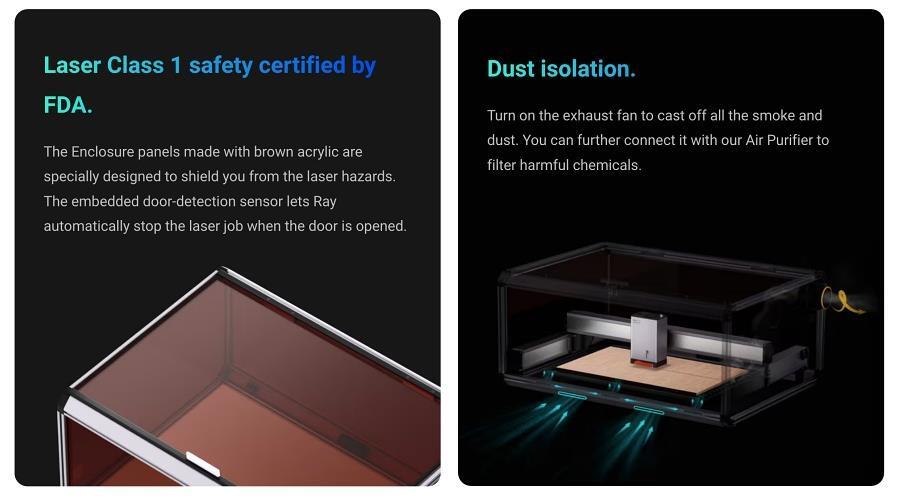

• Safety Features: Emergency stop, flame detection, motion sensor, enclosure integration support
