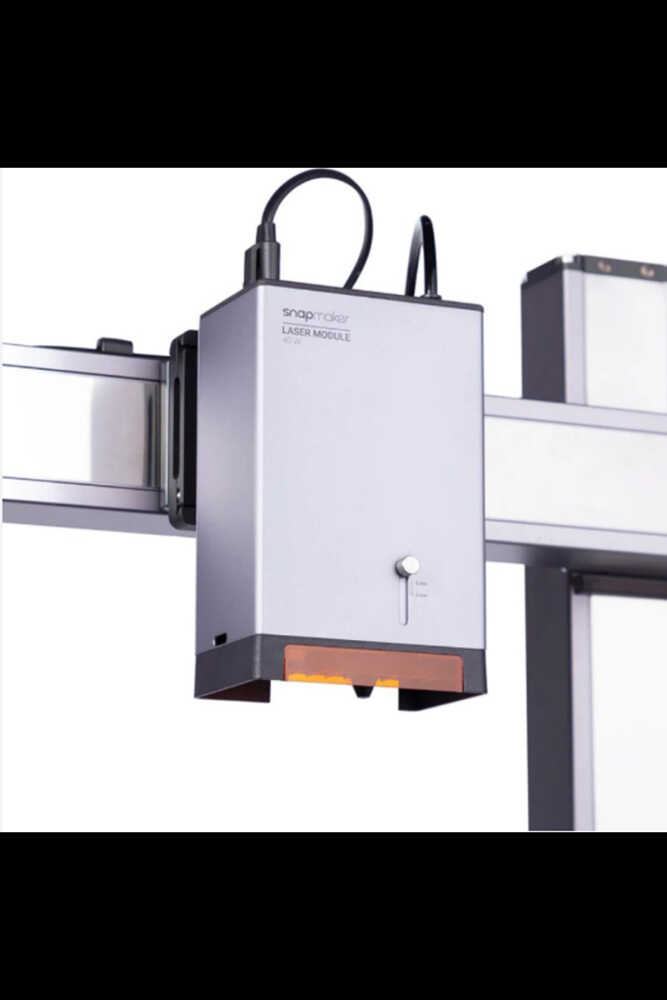

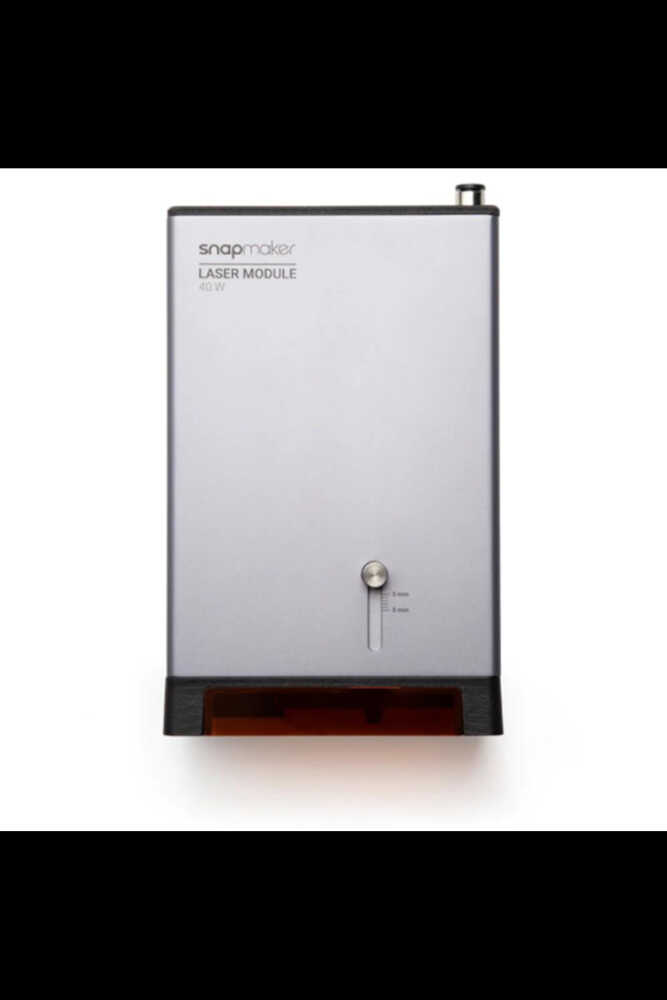

Snapmaker 40W High Power Laser Module for 2.0
The Snapmaker 40W High Power Laser Module is designed for professional-level laser cutting and engraving tasks and is fully compatible with the Snapmaker 2.0 series printers. With its high-powered 40W laser output, it enables fast and deep cutting on a wide range of materials such as wood, acrylic, leather, and more.
Equipped with features like automatic focusing and smart material detection, the module offers ease of use while helping you achieve cleaner and more precise results. Supported by multiple safety measures, it caters to a wide audience—from hobbyists to professional workshops.
Product Features:
The Snapmaker 40W Laser Module is a powerful and versatile upgrade designed for users who want to transform their 3D printer into a high-performance desktop laser cutter. Key features of the module include:
- Cutting Capabilities: Cuts 20 mm pine in a single pass, Cuts 15 mm spruce plywood in a single pass
- Focusing Mechanism: With the focus lever, users can easily adjust the laser's focal point for different materials and cutting depths.
- Air Assist: The Air Assist system enhances cutting and engraving performance by clearing debris and preventing material scorching. It can be controlled via the Luban software, allowing users to activate or deactivate it as needed.
- Safety Features:
- Laser Safety Shield: Encloses the laser beam within a protective shield to increase user safety
- Orientation Detection: Identifies the laser’s position to improve both safety and precision
- Overheating Protection: Prevents overheating to extend the module’s lifespan and ensure safe operation
- Quick-Swap Mechanism: Equipped with an integrated quick-swap system for efficient and hassle-free module replacement.
- Alignment: Crosshair alignment feature helps precisely position the laser for accurate and clean cuts.
Snapmaker 40W High Power Laser Module for 2.0 Technical Specifications:
- Laser Output Power: 40W
- Laser Electric Power: 125W
- Weight: 1.26 kg
- Maximum Working Speed: Snapmaker 2.0: 100 mm/sn , Snapmaker Artisan: 200 mm/sn
- Maximum Cutting Speed: 20mm/s
- Working Area
- 400mm × 400mm (Artisan)
- 320 mm × 350 mm (A350/A350T/F350)
- 230mm × 250mm (A250/A250T/F250)
- Frame Material: Aluminum Alloy
- Supported Engraving Materials: Basswood, Pine, Plywood, Beech, Walnut, Bamboo, MDF, Painted Metal, Tinplate, Stainless Steel, Anodized Aluminum, Dark Glass, Slate, Brick, Ceramic, Jade, Marble, Shale, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (excluding Blue)
- Supported Cutting Materials: Basswood, Pine, Plywood, Beech, Walnut, Bamboo, MDF, Leather, Fabric, Canvas, Corrugated Paper, Cardboard, Plastic, Dark Acrylic (excluding Blue), Stainless Steel (0.1 mm)
- Maximum Single-Pass Cutting Thickness: 15 mm basswood plywood
- Laser Spot Size: 0.1 mm × 0.15 mm
- Supported Design File Formats: STL, SVG, JPEG, PNG, JPG, BMP, DXF, SNAPLZR
- Supported Processing File Format: NC
- Air Assist: Yes
- Camera Capture: No
- Focusing Method: Manual or Material-Touch Auto Focus using the Focus Lever (for 2.0/Artisan)
- Overheating Protection: Yes
- Orientation Detection: Yes
- Compatibility: Artisan (3-in-1 version), Ray, A350T/A350, A250T/A250, F350/F250, Air Purifier, Rotary Module, CAN Hub, Emergency Stop Button, Enclosure for 2.0
