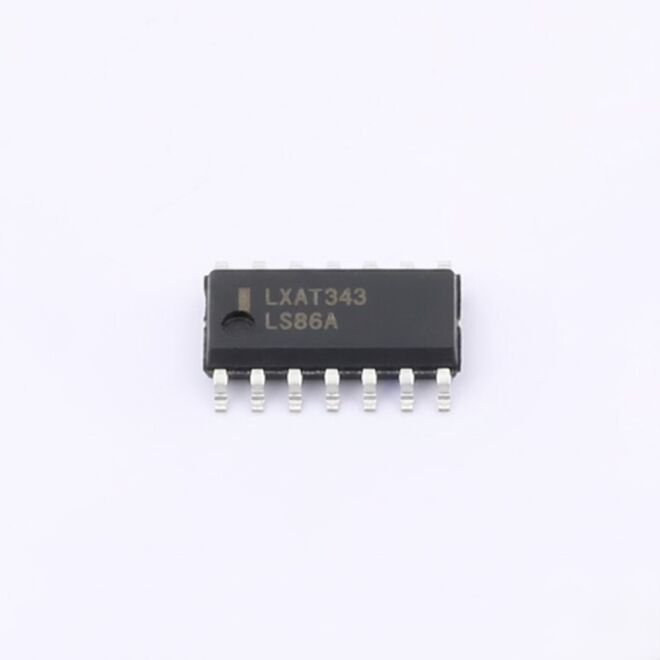

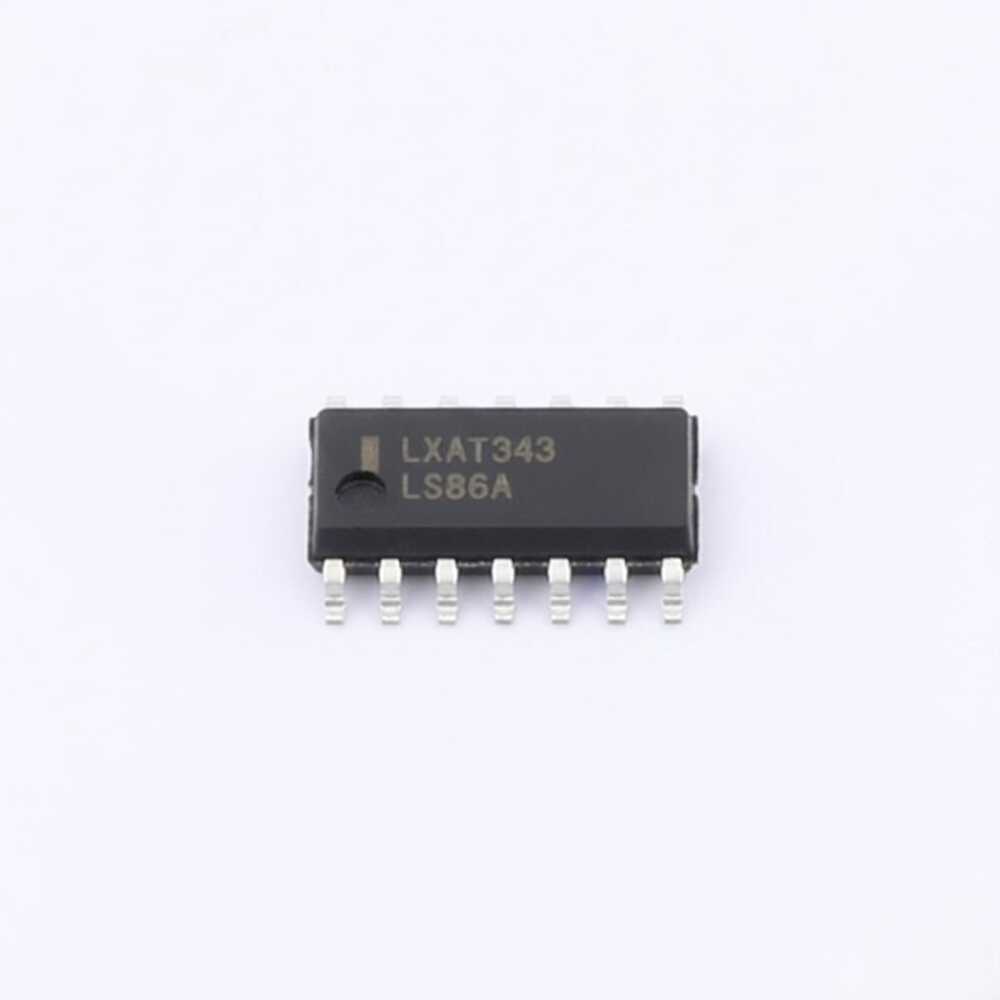

74LS86 SOP-14 Quad 2-Input XOR Gate IC

74LS86 SOP-14 Quad 2-Input XOR Gate IC

The SN74LS86ADR(LX) is a logic integrated circuit from the TTL-based 74LS series, containing four independent XOR (Exclusive-OR) logic gates. It is widely used in digital electronic circuits for comparison operations, adder circuits, error detection, and signal processing applications.

XOR gates generate an output when the two input signals are different. Thanks to its SOP-14 SMD package structure, it provides an ideal solution for compact circuit designs and high-volume PCB production applications.

SN74LS86ADR(LX) Technical Specifications:

• TTL logic family (74LS series)

• 4 XOR (Exclusive-OR) logic gates

• Supply voltage: 2V – 6V

• Typical propagation delay: 14ns @ 6V

• Input logic level (Low): 500mV – 1.8V

• Output logic level (Low): 100mV – 260mV

• Output logic level (High): 1.9V – 5.9V

• Output current (High / Low): 5.2mA

• Quiescent current (Iq): 2µA

• Operating temperature: -40°C ~ +125°C

• Package type: SOP-14 (SMD)
