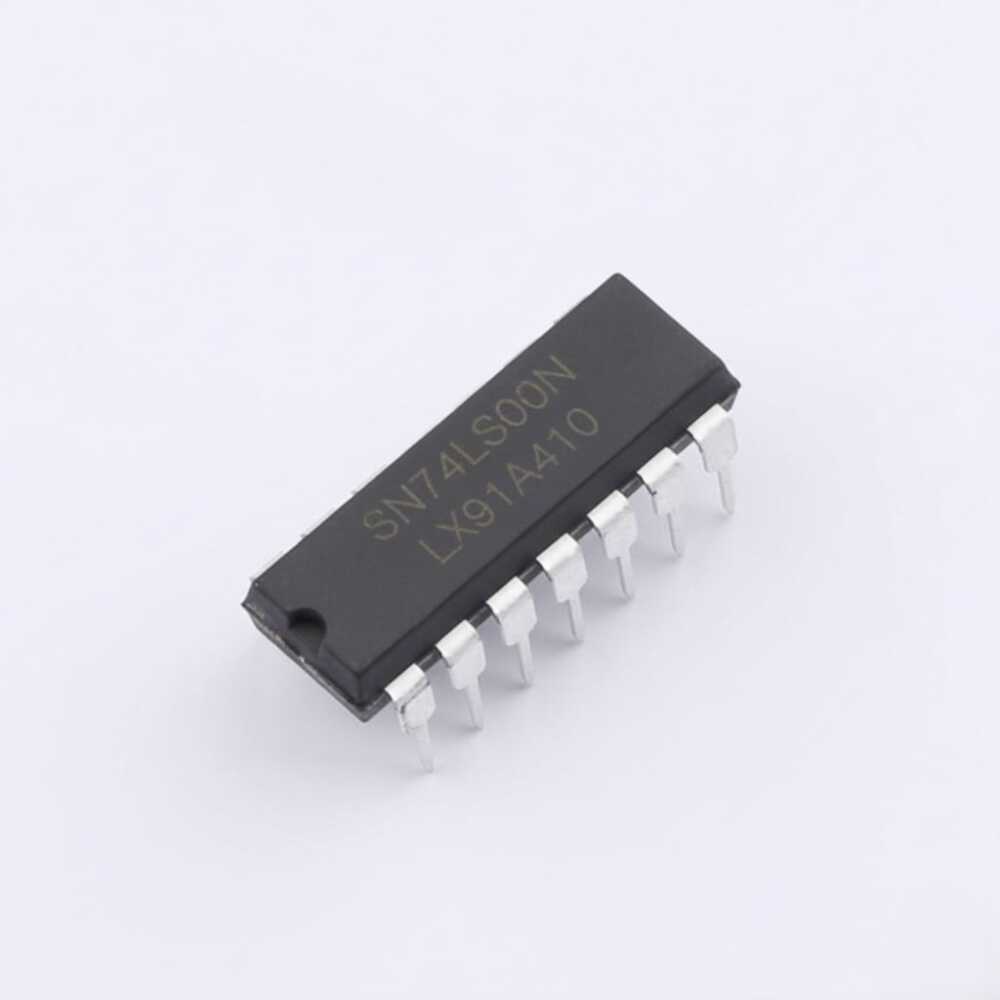

74LS00 DIP-14 Quad 2-Input NAND Gate IC

74LS00 DIP-14 Quad 2-Input NAND Gate IC

The SN74LS00N is a logic integrated circuit from the TTL-based 74LS series, containing four independent 2-input NAND logic gates. It is widely used in digital electronic circuits for basic logic operations, control circuits, timing applications, and signal processing projects.

NAND gates are one of the fundamental building blocks of digital electronics and can be used alone to implement all other logic functions. The DIP-14 package allows easy soldering and prototyping.

SN74LS00N Technical Specifications:

• TTL logic family (74LS series)

• 4 × 2-input NAND gates

• Supply voltage: 2V – 6V

• Typical propagation delay: 7ns @ 6V

• Input logic level (Low): 800mV – 2.8V

• Output current (High / Low): 5.2mA

• Quiescent current (Iq): 2µA

• Number of channels: 4

• Operating temperature: -40°C ~ +125°C

• Package type: DIP-14
