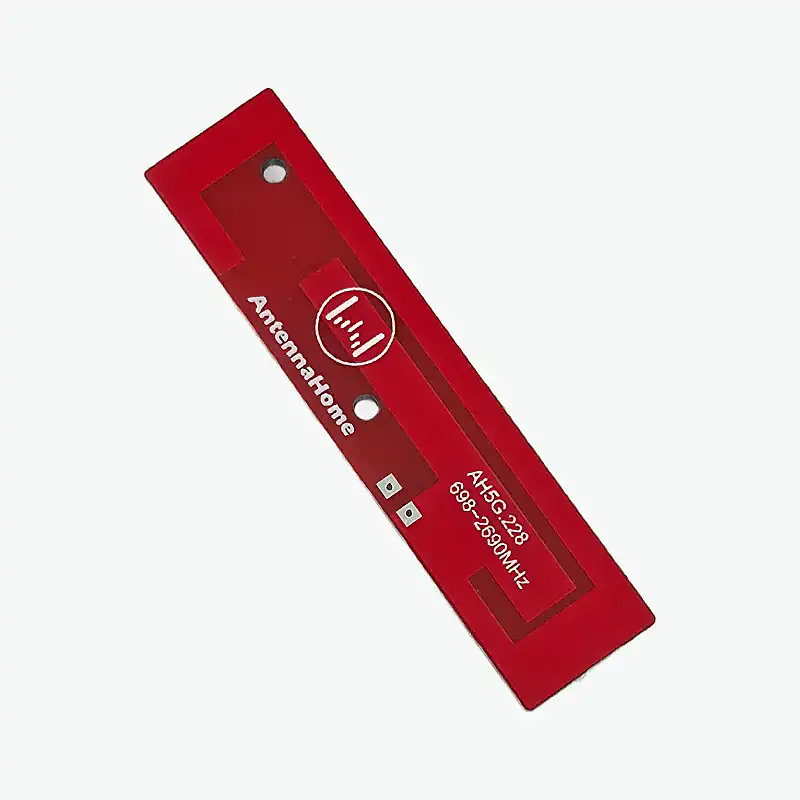

Notify me when its in stockAntennaHome AH5G.228 3G/4G/5G NB-IoT SMD Chip Antenna
The AntennaHome AH5G.228 SMD Chip Antenna delivers wideband performance for advanced wireless communication systems, IoT nodes, and industrial embedded networks. Supporting a broad frequency spectrum from 690 MHz to 2690 MHz, it ensures excellent compatibility across 2G, 3G, 4G, 5G cellular technologies as well as NB-IoT, Cat.1, and Cat.4 hardware modules.
Built with a high-performance copper architecture shielded by a durable red coating, it ensures reliable RF transmission under varying thermal and mechanical stresses. Its vertical omnidirectional radiation pattern maintains consistent network attachment regardless of device orientation. The compact surface-mount (SMD) form factor makes it ideal for space-constrained electronics.
Key Features:
- Comprehensive Cellular Band Support: Seamless integration across legacy 2G/3G networks, modern 4G/5G infrastructures, and LPWAN NB-IoT devices.
- Omnidirectional Radiation Pattern: Vertical omni-polarization guarantees continuous data links even on highly mobile tracking equipment.
- Embedded SMD Layout: Standard surface-mount layout optimized for space-efficient integration onto dense PCB layers.
Technical Specifications:
| Parameter | Value |
| Model / Brand | AH5G.228 / AntennaHome |
| Frequency Range | 690–960 MHz / 1770–2690 MHz |
| Impedance / VSWR | 50 Ohm / ≤ 2.5 |
| Antenna Gain | 2.5 dBi / 3.5 dBi |
| Mounting Type & Size | SMD (Surface Mount) / 42 × 10 × 1.6 mm |
| Weight & Op. Temperature | 3.0g / −40 °C to +85 °C |
Application Areas:
- Smart city infrastructures, smart automated metering, and wireless IoT asset trackers.
- 4G/5G industrial modem systems and cellular network gateways.
- Compact embedded enclosures restricting external whip antennas.
