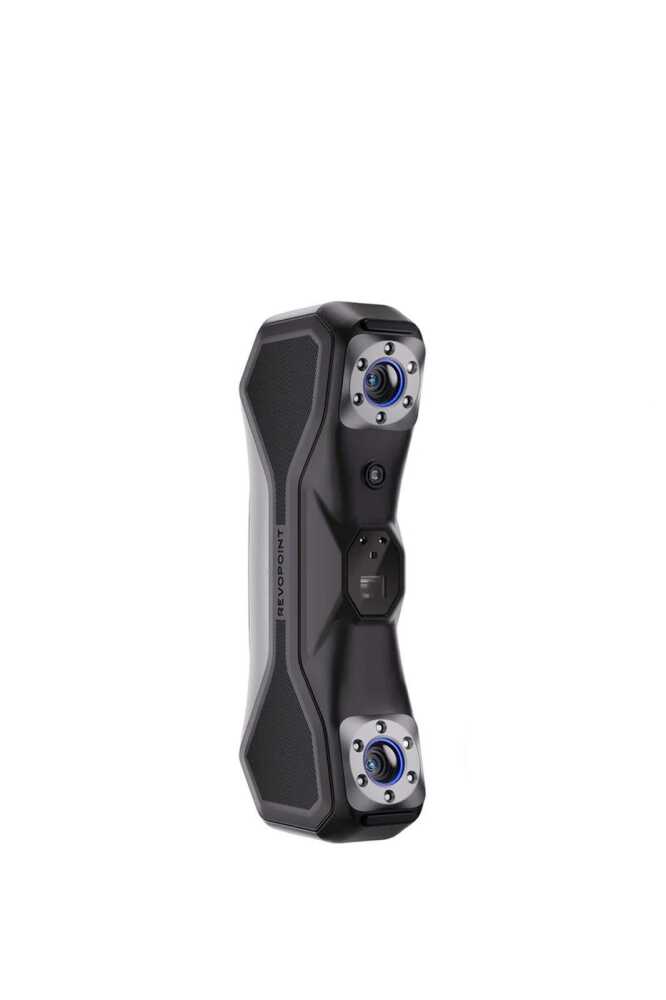

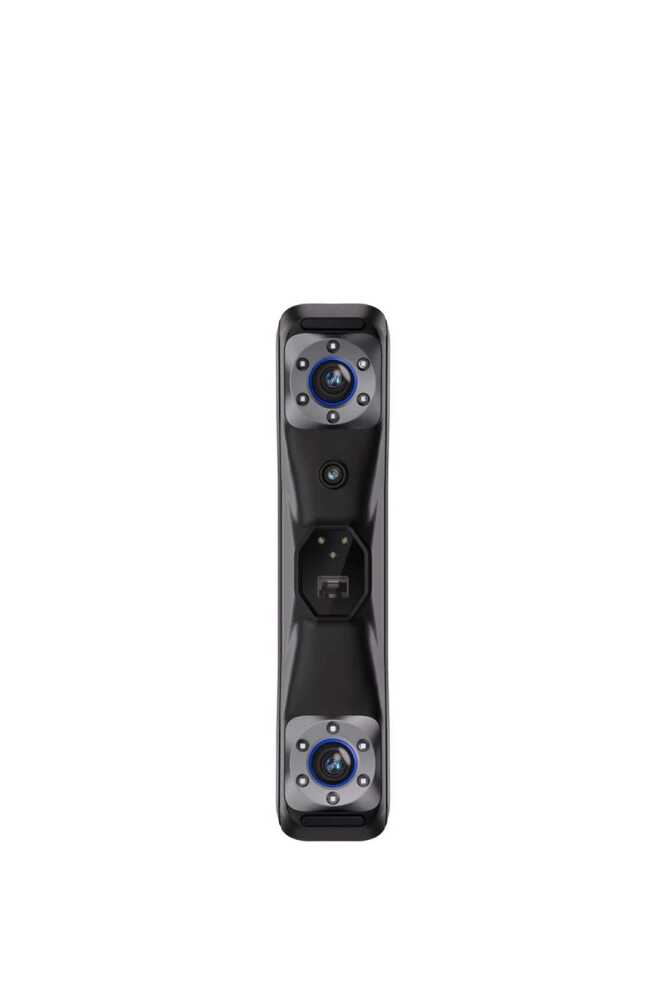

Revopoint MetroX Advanced Edition

Revopoint MetroX Advanced Edition

Cross Lines

Scan up to 800,000 points per second with 14 cross blue laser lines.

Parallel Lines

Capture objects with 7 high-power parallel blue laser lines.

Full-field Blue Structured Light

Scan up to 7 million points per second with 62 structured blue light lines.

Automatic Turntable

Dual-axis turntable and Revo Scan software work in sync with one-click scanning.

Metrology-Grade Precision

• Precision: Up to 0.01 mm
• Accuracy: Up to 0.03 mm

HD RGB Camera

Create vivid 3D models.

Minimum System Requirements

macOS

CPU: M1 Pro/Max/Ultra

RAM: ≥ 16GB

Windows

CPU: Intel i7 10th Gen 10700 / AMD Ryzen 7 5800

RAM: ≥ 32GB

GPU (Optional): NVIDIA GeForce RTX 3050 (8GB)

Flexible Single Scan Area

• 160 x 70 mm at 200 mm
• 320 x 215 mm at 400 mm

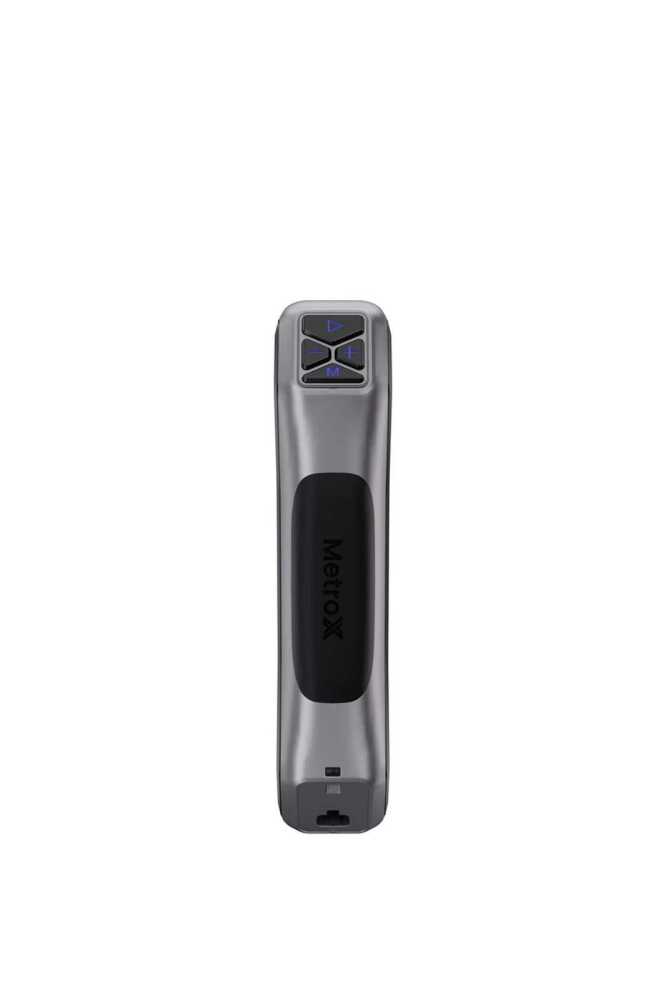

Easy Control

Easy to use with 4 buttons.

No Spray Required

Easily scan shiny or black surfaces.

Fast Scanning

• Full-Field Structured Light Mode: 7,000,000 pts/s
• Multi-line Laser Mode: 800,000 pts/s

Fast Scanning with Marker Blocks

This handy marker block set makes scanning untextured objects much faster.

Powerful Software: Revo Scan 5 MetroX

Revo Scan 5 MetroX handles point cloud generation, alignment, meshing, editing, merging, and import/export.

The difference from the Standard Edition is that the Advanced Edition includes the Marker Block Kit*

Contents of Marker Block Kit:

• Round Marker x10
• Hemispherical Marker x10
• Pyramid Marker x4
• Stick Marker x4
• Dot Marker (6mm) x500

*The Marker Block Kit simplifies the workflow by making placement of markers easier for untextured objects.

Box Contents:

• MetroX 3D Scanner Wrist Strap
• Sample Bust
• Power Adapter
• Magnetic Pyramid Marker x4
• 6mm Markers
• Magnetic Dome Marker x10
• Carrying Case
• Stick Marker x4
• Calibration Board
• Sphere Marker x10
• Dual-axis Turntable
• USB Type-A to Type-C Adapter
• 6mm Markers x500
• USB Type-A to Type-C Cable
• Tripod and Scanner Dock
• Quick Start Guide

Technical Details:

• Brand / Model: Revopoint MetroX
• Technology: Multi-line Laser Scanning and Full-Field Structured Light Scanning
• Single Frame Accuracy: 0.01 mm
• Single Frame Precision: 0.03 mm
• Scanning Speed: Multi-line Blue Laser: 800,000 pts/s | Full-field Blue Light: 7,000,000 pts/s
• Minimum Scan Volume: 10x10x10 mm
• Maximum Scan Volume: 1x1x1 m
• Scanning Distance: 200 - 400 mm
• Auxiliary Lighting: 12 Blue LEDs
• Light Source: Blue Light
• Resolution: 2 MP
• Dimensions: 209 x 88 x 44 mm
• Processor (CPU): Quad-core ARM, 2.0 GHz
• Color Scanning: Yes
