ReSpeaker 2-Mics Pi HAT

Product Code
:
18146
Brand / Origin
:
SeeedStudio
Quantity
:
10+
Without Vat
:
442.89 TL
Discount Price
:
372.03 TL
%16
Quantity:

-

+

Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

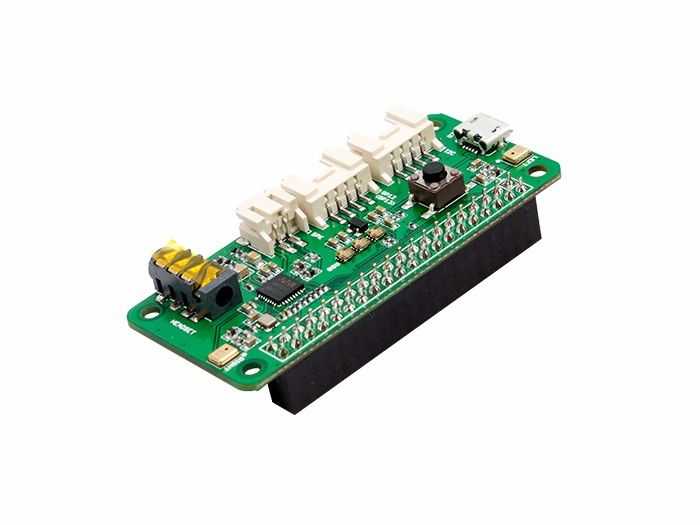

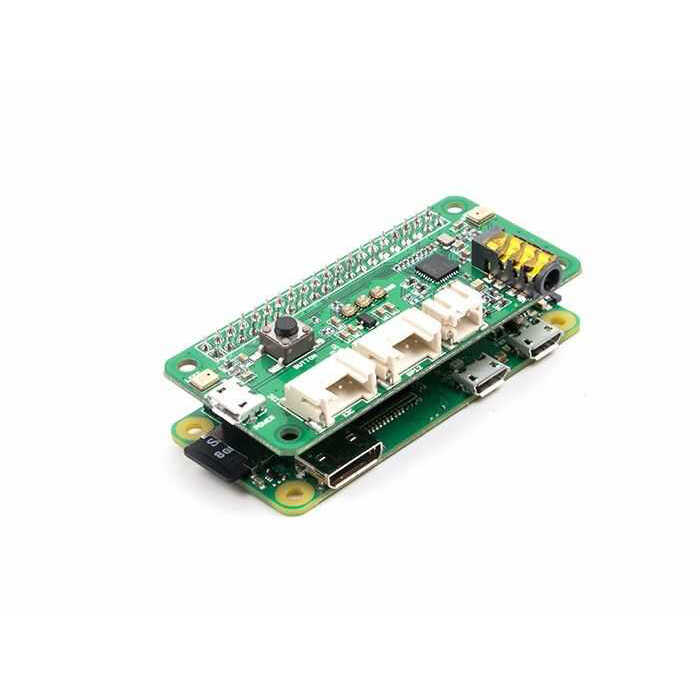

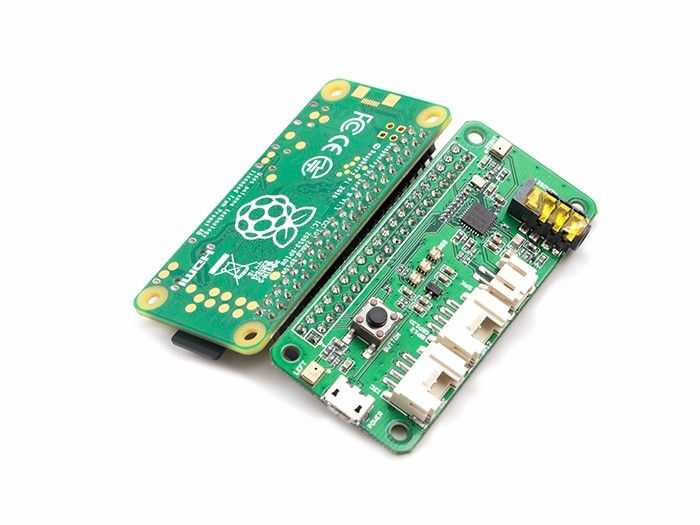

  • ReSpeaker 2-Mics Pi HAT is a dual-microphone expansion board for Raspberry Pi designed for AI and voice applications. This means that you can build a more powerful and flexible voice product that integrates Amazon Alexa Voice Service, Google Assistant, and so on.

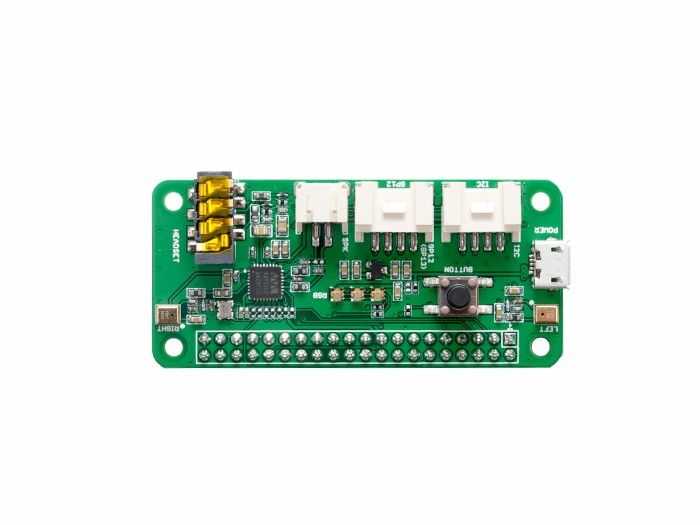

    The board is developed based on WM8960, a low power stereo codec. There are 2 microphones on both sides of the board for collecting sounds and it also provides 3 APA102 RGB LEDs, 1 User Button and 2 on-board Grove interfaces for expanding your applications. What is more, 3.5mm Audio Jack or JST 2.0 Speaker Out are both available for audio output.

    NOTE: This product does not include the Pi Zero board

    Technicial Specifications:

    • Compatible with Raspberry Pi (Support Raspberry Pi Zero, Raspberry Pi 1 B +, Raspberry Pi 2 B, Raspberry Pi 3 B and Raspberry Pi 3B +)
    • With double microphone
    • 2 Grove Interface: Supports GPIO and I2C
    • Programmable Button and 3 LEDs
    • Stereo Codec with Class D Speaker Driver
    • Two types of audio output sockets: 3.5mm Audio Jack (40mW output), JST2.0 Speaker Output (provides 1W to 8 Ses load)
    • Remote field support (up to 3 meters)

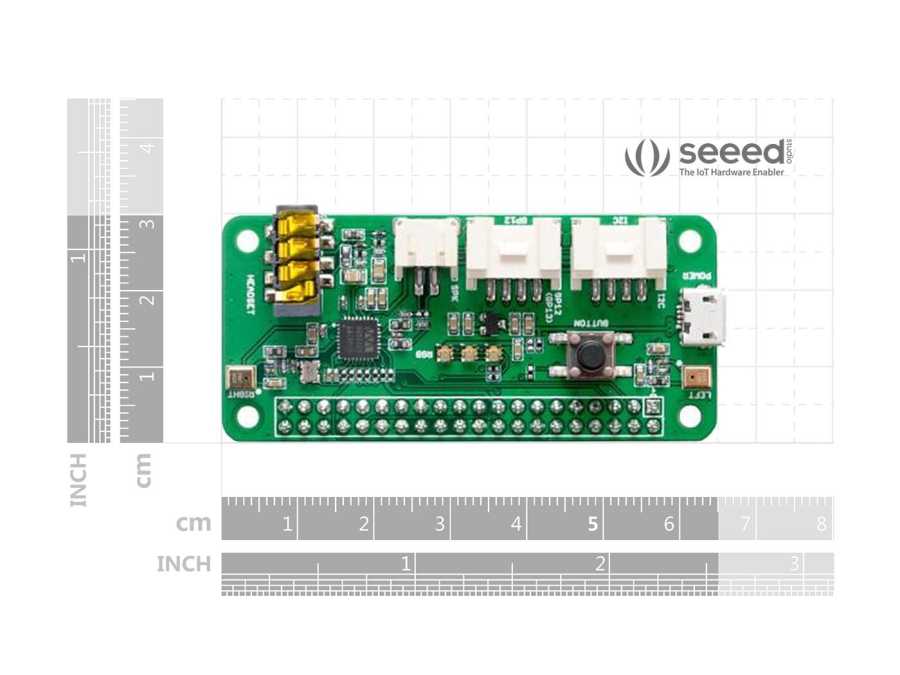

    • Dimensions: 65mm x30mm x15mm
    • Weight: 33g


    Technical Documents:
