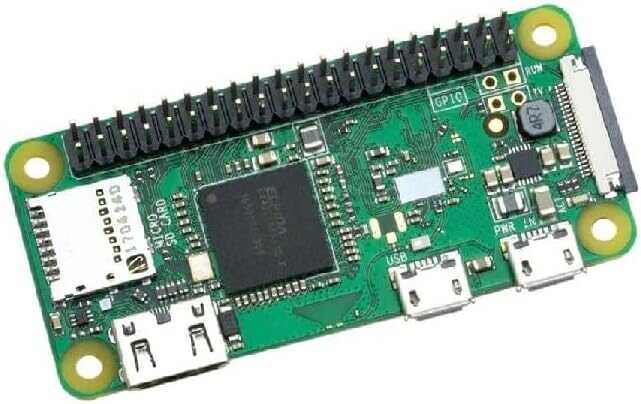

Raspberry Pi Zero 2 W Header

Raspberry Pi Zero 2 W Header

Just as small. Five times as fast.

At the heart of Raspberry Pi Zero 2 W is RP3A0, a custom-built system-in-package designed by Raspberry Pi in the UK. With a quad-core 64-bit ARM Cortex-A53 processor clocked at 1GHz and 512MB of SDRAM, Zero 2 is up to five times as fast as the original Raspberry Pi Zero.

Wireless LAN is built in to a shielded enclosure with improved RF compliance, giving you more flexibility when designing with Raspberry Pi Zero 2 W.

All in the same tiny 65mm × 30mm form factor.

Little genius Raspberry Pi Zero 2 W is perfect for a range of smart home applications and other IoT projects. From security cameras to Bluetooth speakers, Zero 2 W has the tiny form factor and impressive power that make it an ideal computer for your projects.
	Making connections Like the original Raspberry Pi Zero, Raspberry Pi Zero 2 W features a mini HDMI port, a micro USB port, and a micro USB power port. Raspberry Pi offers a wide range of high-quality, low-cost cables and adapters to get you up and running on your Raspberry Pi Zero 2 W.
We’ve got the power The official Raspberry Pi Micro USB Power Supply is designed to be the most reliable source of power for your Raspberry Pi Zero 2 W. It is also compatible with any other Raspberry Pi that features a micro USB connector.

Raspberry Pi Zero 2 W Header Specification:

• 1GHz quad-core 64-bit Arm Cortex-A53 CPU
• 512MB SDRAM
• 2.4GHz 802.11 b/g/n wireless LAN
• Bluetooth 4.2, Bluetooth Low Energy (BLE), onboard antenna
• Mini HDMI® port and micro USB On-The-Go (OTG) port
• microSD card slot
• CSI-2 camera connector
• HAT-compatible 40-pin header footprint (unpopulated)
• H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30)
• OpenGL ES 1.1, 2.0 graphics
• Micro USB power
• Composite video and reset pins via solder test points
• 65mm x 30mm

Useful Documents:

• Getting started guide
• Raspberry Pi Zero 2 W product brief
