Raspberry Pi RTC Modul - Super Capacitor

Product Code
:
13531
Brand / Origin
:
Robotistan
Quantity
:
0
Without Vat
:
32.23 TL
Out of stock Alert when in stock
Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (2)
  • Recommend
  • Images
  • Suggestion Box

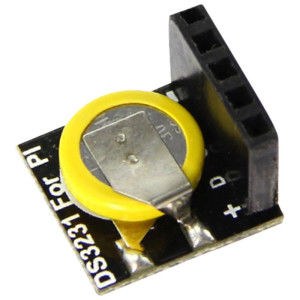

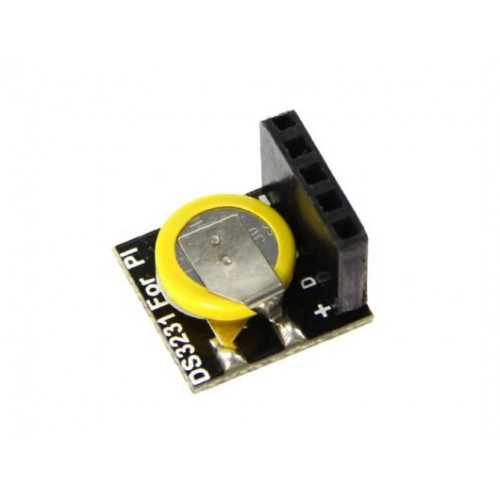

  • This product is a Super Capacitor RTC(Real Time Clock) and custom engineered for Raspberry Pi, but also it can be used with Arduino.

    Modul can be plugged to Raspberry Pi GPIO pins directly. No other connections needed.

    Features:
    • 0.22F Super Capacitor
    • Quite Small
    • Operating Range:3.3V ~5V
    • Compatible with Raspberry Pi and Arduino
    • Compatible with Raspberry Pi B/A+/B+/2/3

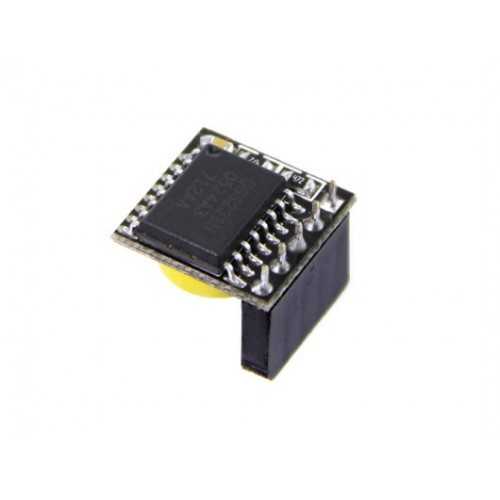

    • Based on DS3231 RTC
    • Communicate via I2C
    • Dimensions: 14x16x12 mm
    • Weight: 16g


    Pin Structure:

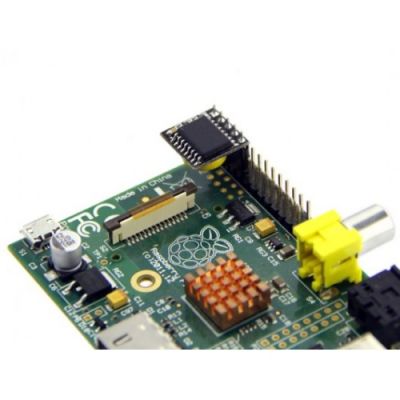

    As you see in the image, RTC Board can be plugged to Raspberry Pi directly. If user wnats to use it with Arduino, pin connections should be as shown in the below:

    Starting with 1. pin: VCC (3.3V-5V)-SDA-SCL-NC (No connection)-GND
