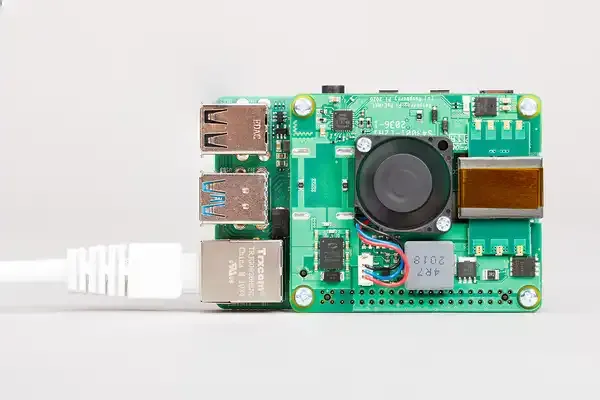

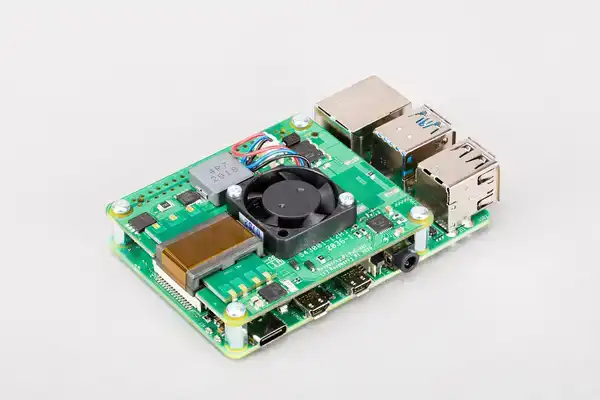

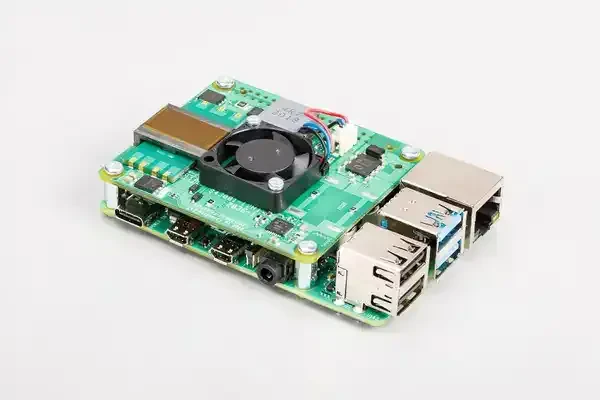

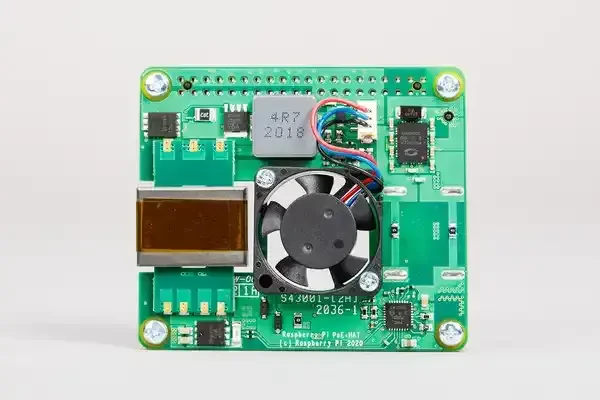

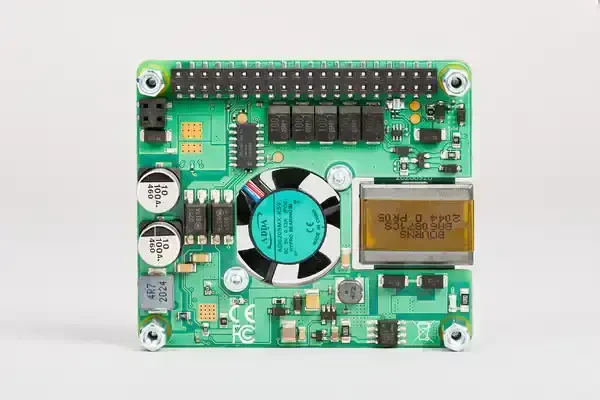

Raspberry Pi PoE Plus HAT

Raspberry Pi PoE Plus HAT

The new Raspberry Pi PoE Plus HAT is designed to replace the existing PoE HAT. With the Raspberry Pi PoE Plus HAT, designed for Raspberry Pi 3B+ and Pi 4, you can run your Raspberry Pi by providing power via Ethernet. You can also prevent your mini computer from overheating with the Raspberry Pi PoE Plus HAT, which has a cooling fan.

Raspberry Pi PoE Plus HAT Technical Specifications:

A small accessory, the Poe Plus Hat is your power over Ethernet. It has no impact on data, so you won't lose bandwidth using PoE Plus.

Mechanically compatible with existing Raspberry Pi PoE HAT
Standard: IEEE 802.3at-2003 PoE
Input voltage: 37–57V DC, Class 4 device
Output power: 5V DC / 4A
Cooling: 25 mm × 25 mm brushless fan providing 2.2 CFM for processor cooling.

Features:

Fully isolated switching power supply
fan control
Operating temperature: 0 °C to +50 °C
Compatibility: For a complete list of local and regional product approvals, please click to visit.

Useful Documents:

Datasheet
