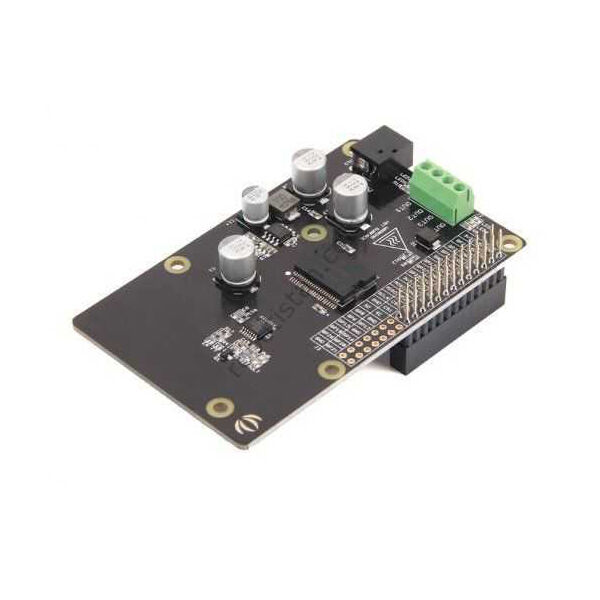

Raspberry Pi Motor Driver Board v1.0 - 1

Raspberry Pi Motor Driver Board v1.0 - 2

Raspberry Pi Motor Driver Board v1.0 - 3

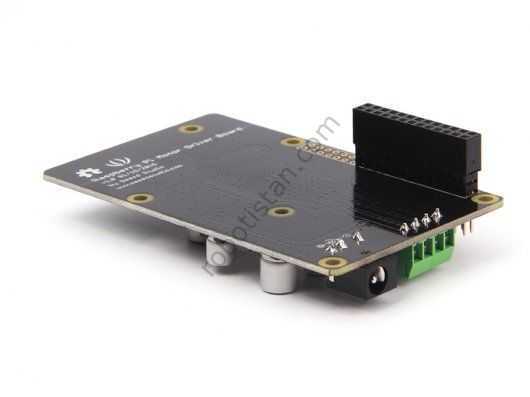

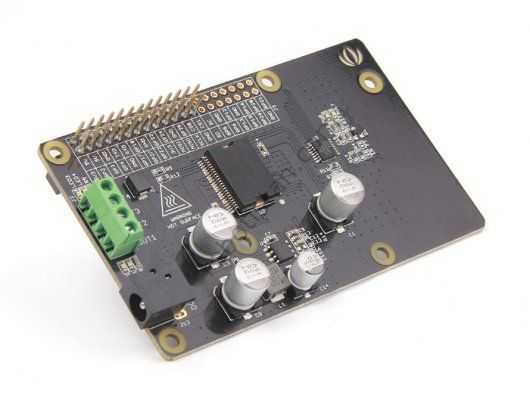

Raspberry Pi Motor Driver Board v1.0

Brand

: SeeedStudio

Product Code

: 13528

Ürün Satış Durumu

: Ürün Satışa Kapalıdır. Farklı Modelleri İnceleyebilirsiniz.

Kart İşlevi

: Motor Sürücü Kartı

Bağlantı Noktası

: Klemens

Çalışma Gerilimi

: 6-28V/DC

Çalışma Akımı

: 5A

Raspberry Pi Motor Driver Board v1.0 has Freescale MC33932 pair H-bridge motor driver IC. Through this driver, which can be used with all Raspberry Pi models, you can control speed and direction of two different motors as you want independently.

Raspberry Pi Motor Driver Board v1.0 supports very large input voltage range (6V~28V). Regulator, which exists on the board, gives the necessary 5V 1000mA power. Thus, you can supply Raspberry Pi and motors with single power supply.

Features:

Operating Voltage: 6V ~28V
DC/DC out: 5V 1000mA @ '5V'pin
Output Current (for each channel): 2A(devamlı) /5A (tepe)
Shortcut protection between GND-VPWR and Outputs
Protection from overheat of Regulator
Temperature dependent current limit threshold reduction
Compatible with Raspberry Pi 3/2/B+/A+/B
Power input: DC Jack
Dimensions: 91.20 x 56.15mm

Documents:
