Notify me when its in stockRaspberry Pi M.2 HAT Plus

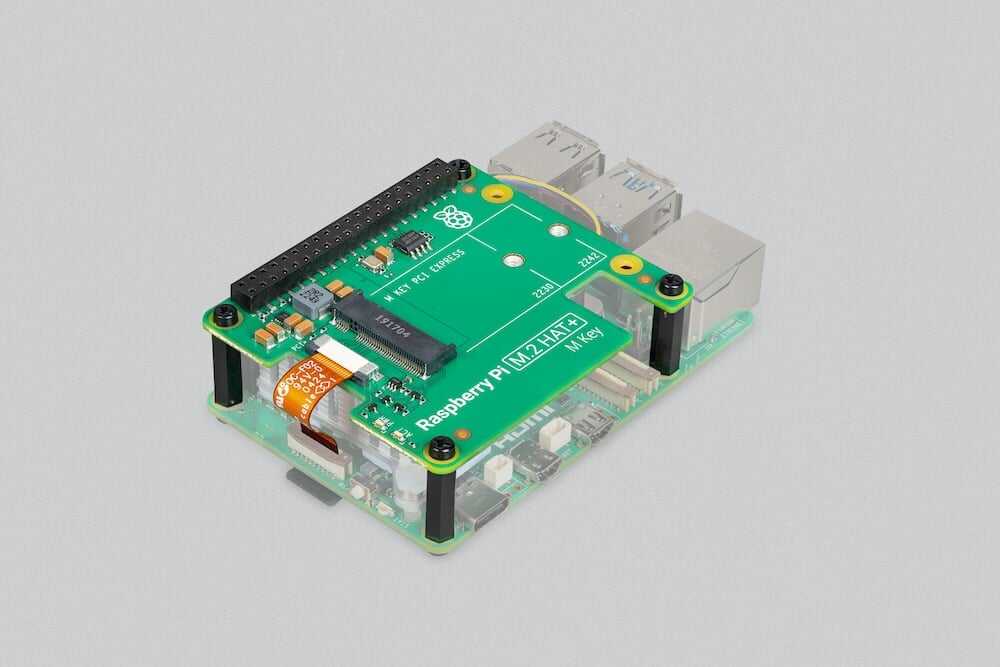

The Raspberry Pi M.2 HAT+ M Key enables you to connect M.2 peripherals such as NVMe drives and other PCIe accessories to Raspberry Pi 5’s PCIe interface.
The M.2 HAT+ adapter board converts between the PCIe connector on Raspberry Pi 5 and a single M.2 M key edge connector. You can connect any device that uses the 2230 or 2242 form factors. The M.2 HAT+ can supply up to 3A of power.
The M.2 HAT+ uses Raspberry Pi’s HAT+ specification, which allows Raspberry Pi OS to automatically detect the HAT+ and any connected devices.
The included threaded spacers provide ample room to fit the Raspberry Pi Active Cooler beneath an M.2 HAT+.
Single-lane PCIe 2.0 interface (500 MB/s peak transfer rate)
Supports devices that use the M.2 M key edge connector
Supports devices with the 2230 or 2242 form factor
Supplies up to 3A to connected M.2 devices
Power and activity LEDs
Conforms to the Raspberry Pi HAT+ specification
Includes:
ribbon cable
16mm GPIO stacking header
4 threaded spacers
8 screws
1 knurled double-flanged drive attachment screw to secure and support the M.2 peripheral
