Raspberry Pi Compute Module 5 Programming Jig
Fiyat
:
32,596.77
TL + VAT
KDV Dahil Fiyat
:
39,116.12
TL
Money Order Price :
38,333.80
TL
%2 Discount
Out Of Stock
Notify me when its in stockRaspberry Pi Compute Module 5 Programming Jig

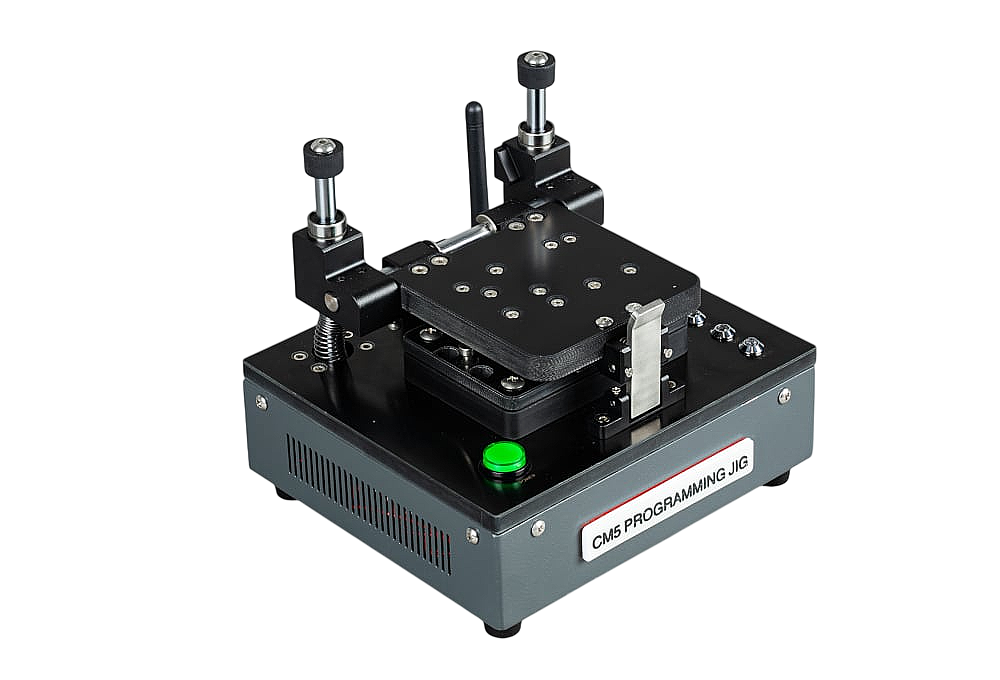

Raspberry Pi Compute Module 5 Programming Jig is a professional single-head programming and provisioning station specially engineered to flash operating systems, configure security settings, and streamline rapid deployment on production lines for Raspberry Pi Compute Module 5 (CM5) boards.
It establishes direct physical contact with the Compute Module 5 without requiring an external IO carrier board. Thanks to its custom spring-loaded pogo-pin interface and mechanical latching mechanism, it completely eliminates connector wear. Fully integrated with the rpi-sb-provisioner software ecosystem, this device automates Secure Boot configuration, Full-Disk Encryption, and direct OS image flashing processes, delivering maximum speed, security, and consistency in manufacturing workflows.
Key Features:
- Direct Carrier-Free Connection: Ability to program the CM5 module directly without mounting it onto an additional IO board, thanks to its custom pogo-pin contact surface.
- Automated Security & Image Provisioning: Automates Secure Boot configuration, full-disk encryption, and bare OS flashing processes.
- Dual Network Architecture: Features a JIG ETH / Wi-Fi connection for station management, alongside a secondary DUT ETH port enabling high-speed data transfer to the programmed CM5 module.

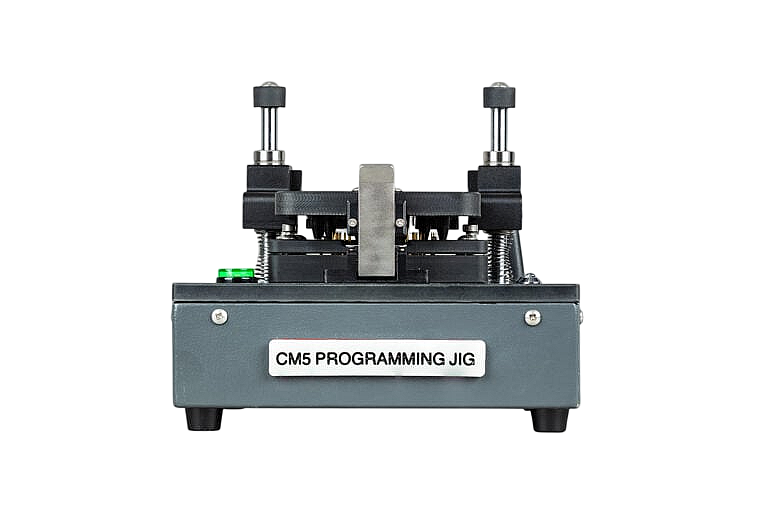

- Mechanical Latching & Pin Protection: A secure latch mechanism that aligns and secures the module from all four corners during testing.

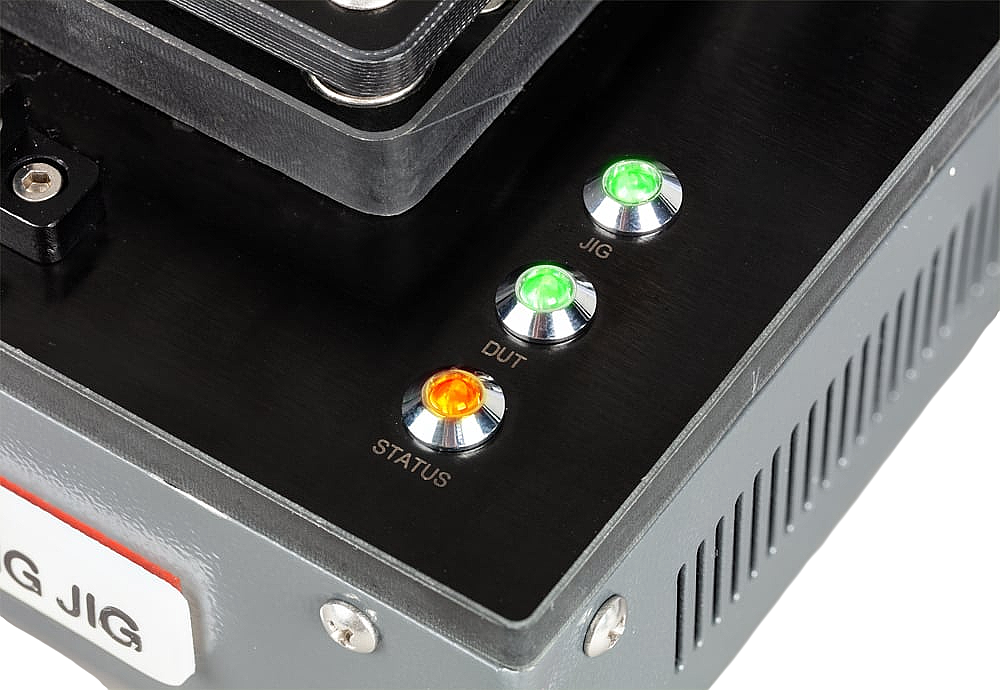

- Real-Time Status Monitoring LEDs: Status LEDs indicating programming pipeline stages, device status, and error notifications.
- High-Volume Production Speed: Completes module programming and verification in an average of 80 seconds, depending on image size.
Technical Specifications:
| Parameter | Value |
| Compatible Device | Raspberry Pi Compute Module 5 (CM5) |
| Interface Type | Precision Spring-Loaded Pogo-Pin Surface |
| Latching Mechanism | Manual Safety-Latched Cover with Alignment Pins |

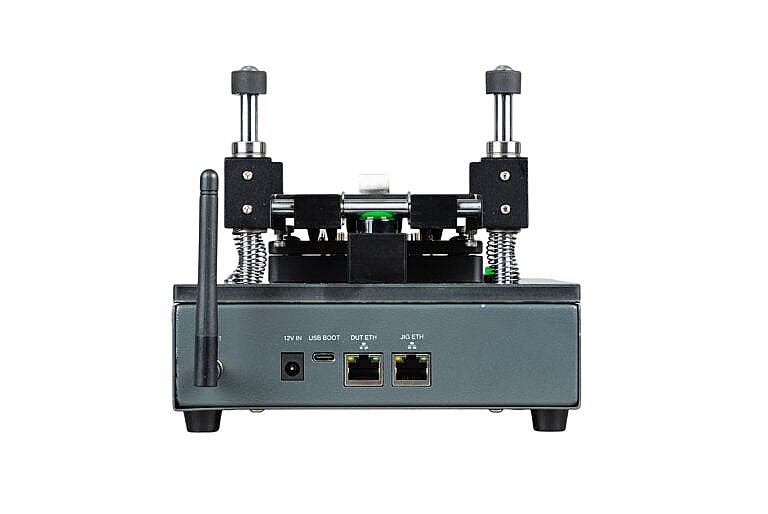

| Input Ports | 12V DC Power Input, USB-C, DUT Ethernet, JIG Ethernet |
| Wireless Connectivity | Integrated Wi-Fi Module & External Antenna Connector |
| Software Support | rpi-sb-provisioner (Secure Boot, Full-Disk Encryption, OS Flashing) |
| Indicators | JIG LED (Power/Operating Status) & Provisioning Progress LEDs |
| Applications | Industrial mass production lines, CM5 image flashing stations, security configuration centers |
Important Usage Note: To prevent damage to the delicate metal pogo pins, never close and latch the compression cover when no Compute Module 5 is inserted in the socket.
Package Includes:
- 1 x Raspberry Pi Compute Module 5 Programming Jig
- 1 x External Wi-Fi Antenna
25296
