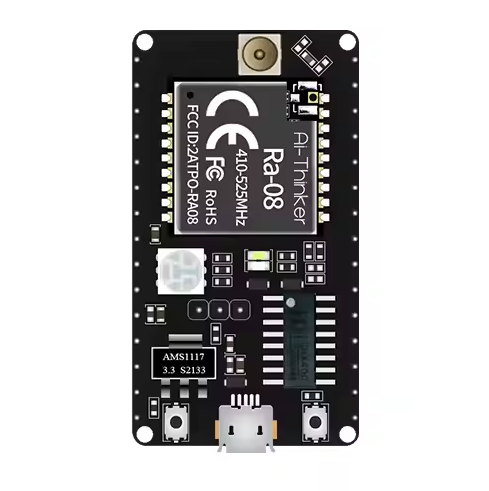

Ra-08-Kit WiFi Bluetooth Development Board
The Ra-08-Kit is a LoRaWAN development board. Equipped with a high-performance LoRa module, it includes serial ports and peripheral pins that allow users to connect with various sensors and actuators. The Ra-08-Kit is optimized for Internet of Things (IoT) applications. Users can easily connect to the factory firmware via serial ports on the board to send and receive LoRaWAN control commands.
Ra-08-Kit WiFi Bluetooth Development Board Technical Details:
- Antenna Type: External SMA Antenna

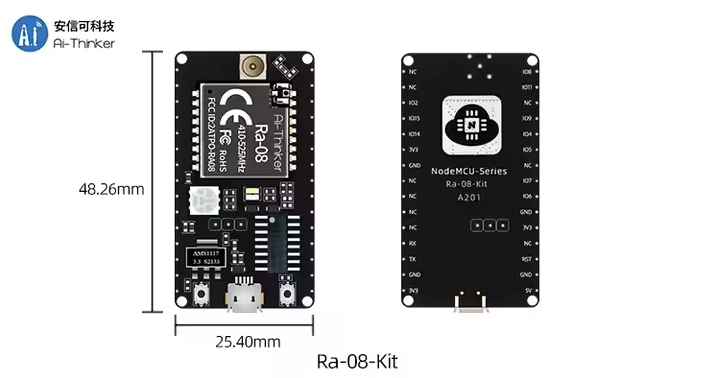

- Board Dimensions: Specified as 25.40 x 48.26 mm (± 0.2 mm)
- Operating Frequency: Frequency Range of 410-525 MHz

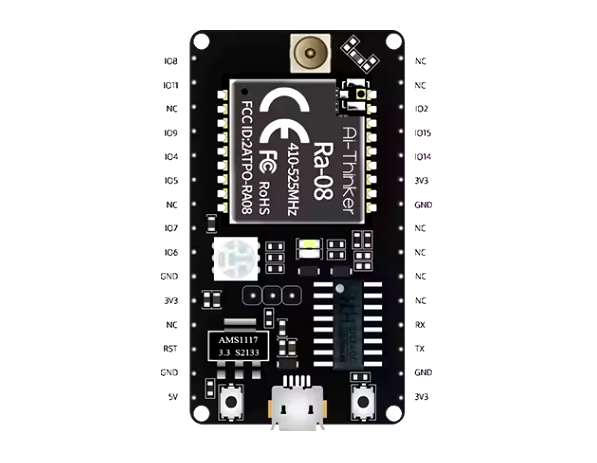

- IO (Input/Output) Information: Supports interaction with various sensors and components via general-purpose input/output pins
- Analog Input Pins: Can be used to read analog signals
- Communication Protocols: I2C (Inter-Integrated Circuit), SPI (Serial Peripheral Interface), UART (Universal Asynchronous Receiver-Transmitter)
- Power Pins: Includes power connections such as 3.3V, GND
- Frequency: Operates within a frequency range of 410-525 MHz
- Memory Capacity: Sufficient RAM and ROM are available on the ASR6601 chip
- Communication Protocols: LoRa: Enables low power consumption and long-range communication. (G)FSK: Traditional frequency-shift keying. BPSK and (G)MSK: Supported as additional modulation methods for both transmitter and receiver
- Power Requirements: Operates at 3.3V
- Microcontroller: The Ra-08-Kit is equipped with the ASR6601 chip, which includes an RF transceiver, modem, and a 32-bit ARM RISC microcontroller. The processor operates at a frequency of up to 48 MHz.
