Pololu RC Switch with Relay

Product Code
:
11722
Brand / Origin
:
Pololu
Quantity
:
3
Without Vat
:
210.64 TL
Quantity:

-

+

Same Day Shipping
Orders placed until 5:00 on weekdays and 10:30 on Saturday are shipped the same day.
Add to Favorites
Click here to add this product to your list and review it later.
Technical Service
We are always with you with our experienced staff and advanced support services.
Refund Guarantee
We carry out the process without upsetting you with a 14-day return guarantee.
Add Comment
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (8)
  • Recommend
  • Images
  • Suggestion Box

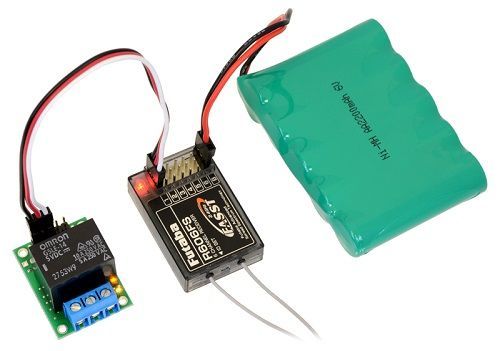

  • This product consists of a single-pole, double-throw (SPDT) power relay and a control circuit that measures incoming radio control (RC) signals, making it easy to control large, electrically isolated loads in RC systems. Example applications include using extra channels on an RC receiver or servo controller to turn on lights, motors, or irrigation valves.

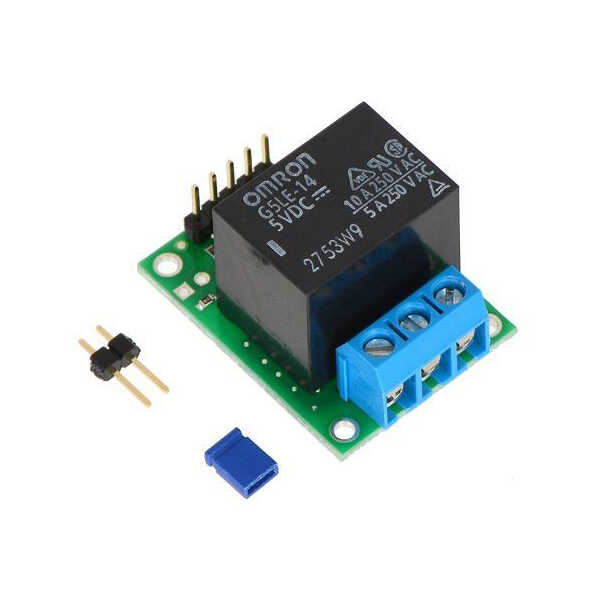

    The relay, screw terminals and male header pins on the board are all soldered so you only need to make RC receiver connections to use it.

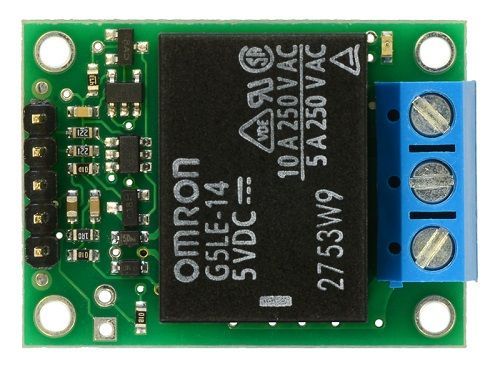

    The included relay is an Omron G5LE-14-DC5 and is rated for up to 10A.

    Advantages over similar products
    • Compact layout
    • User-configurable activation threshold and direction
    • Safe-start mode to reduce likelihood of unexpected activation
    • Zener diode for fast current decay on relay coil

    Features:

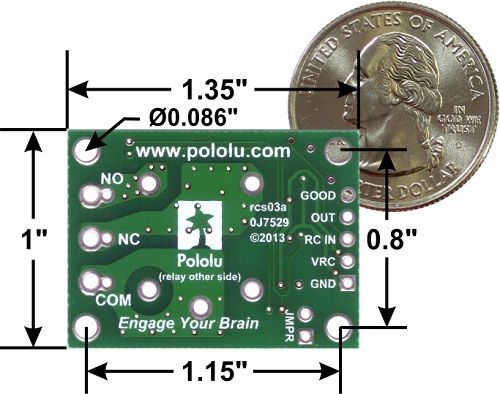

    • Dimensions: 2,54 x 3,43 x 2,29
    • Weight: 17g

    Documents:
    Features
    Operating Voltage
    :
    5V
