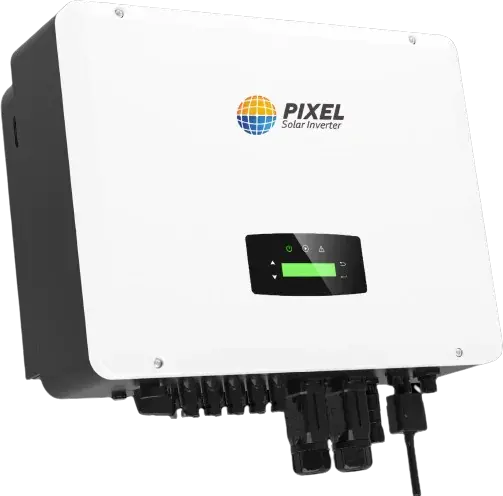

Pixel Solar Inverter 10 KW Threephase Ongrid PXL-10KMH

Brand
Pixel
Product Code
22667
Fiyat
: 82,126.59 TL + VAT
KDV Dahil Fiyat
: 98,551.91 TL
Money Order Price : 95,595.35 TL %3  Discount
5 If you order until SHIP TODAY
Pixel Solar Inverter 10 KW Threephase Ongrid PXL-10KMH


Pixel Solar Inverter 10 kW Three Phase Ongrid optimizes the use of solar energy in your homes and workplaces with its high capacity and innovative technology. It obtains the highest level of energy from solar panels with its maximum DC voltage of 1100V and two MPPT inputs. It maximizes your energy efficiency with a nominal 10,000W AC output power.


Various protection features keep the inverter safe with safety measures such as DC switch, output overcurrent protection, anti-island protection. It offers an environmentally friendly energy solution with its transformer-free design, low THDi value and IP66 class durability.

It provides easy monitoring and control with its user-friendly LCD screen. It offers remote access and monitoring with communication options such as RS485, Wi-Fi and 4G.

Pixel Solar Inverter 10 kW Three Phase Ongrid makes solar energy use more reliable and effective with its compact design, durability and high efficiency. It offers solutions to the energy needs of the future and helps you increase environmental efficiency while reducing your energy costs.



NOTE: The delivery time of the product is 20 days.






Pixel Solar Inverter 10 KW Three Phase Ongrid PXL-10KMH Technical Specifications:



Entrance:

Maximum DC Voltage: 1100V
Rated Voltage: 620V
Starting Voltage: 150V
MPPT Voltage Range: 140V~1,000V
Number of MPPTs: 2
Number of Strings per MPPT: 1
Maximum Input Current Per MPPT: 15A
Maximum Short Circuit Current Per MPPT: 20A
Exit:

Rated AC Output Power: 10000W
Maximum AC Output Power: 11000VA
Nominal AC Voltage: 400V 3L+N
AC Mains Frequency Range: 50Hz / 60Hz(±5Hz)
AC Operating Range: 320-480V
Maximum Output Current: 16A
Power Factor (Φ): 0.8 Lead-0.8 Lag
THDi: <3%
Productivity:

Maximum Efficiency: 98.60%
European Efficiency: 98.10%
Protection:

DC Switch: Yes
Output Overcurrent Protection: Yes
Anti Island Protection: Yes
DC Reverse Polarity Protection: Yes
String Fault Detection: Yes
DC/AC Surge Protection: DC: Type II / AC: Type III / Type I/I Optional
Residual Current Protection: Yes
AC Short Circuit Protection: Yes
Arc Protection: Yes
PID Recovery: Optional
Anti-PID: Yes
AC Voltage Protection: Yes
General Data:

Width x Height x Depth: 380x483x161mm
Weight: 17Kg
Operating Temperature Range: –25℃~+60℃
Cooling Type: Fan Cooling
Maximum Operating Altitude: 4000m
AC Output Terminal Type: OT terminal
Maximum Acclimation Humidity: 0-100% (No Condensation)
Topology: Transformerless
IP Class: IP66



Certification and Standards:

EN/IEC62109-1/2, IEC/EN61000-6-2, IEC/EN61000-6-4, IEC61683, IEC60068, IEC60529, IEC62116, IEC61727, EN50549-1, AS 4777.2, VDE-AR-N-4105, VDE 0126-1-1, CEI0-21, G98, G99, C10/C11, NB/T32004-2018, GB/T19964-2012
Display & Communication:

Display: LCD
Communication: RS485, Wi-Fi, 4G
Pixel Solar Inverter 10 kW Three Phase Ongrid optimizes the use of solar energy in your homes and workplaces with its high capacity and innovative technology. It obtains the highest level of energy from solar panels with its maximum DC voltage of 1100V and two MPPT inputs. It maximizes your energy efficiency with a nominal 10,000W AC output power.

Various protection features keep the inverter safe with safety measures such as DC switch, output overcurrent protection, anti-island protection. It offers an environmentally friendly energy solution with its transformer-free design, low THDi value and IP66 class durability.

It provides easy monitoring and control with its user-friendly LCD screen. It offers remote access and monitoring with communication options such as RS485, Wi-Fi and 4G.

Pixel Solar Inverter 10 kW Three Phase Ongrid makes solar energy use more reliable and effective with its compact design, durability and high efficiency. It offers solutions to the energy needs of the future and helps you increase environmental efficiency while reducing your energy costs.
