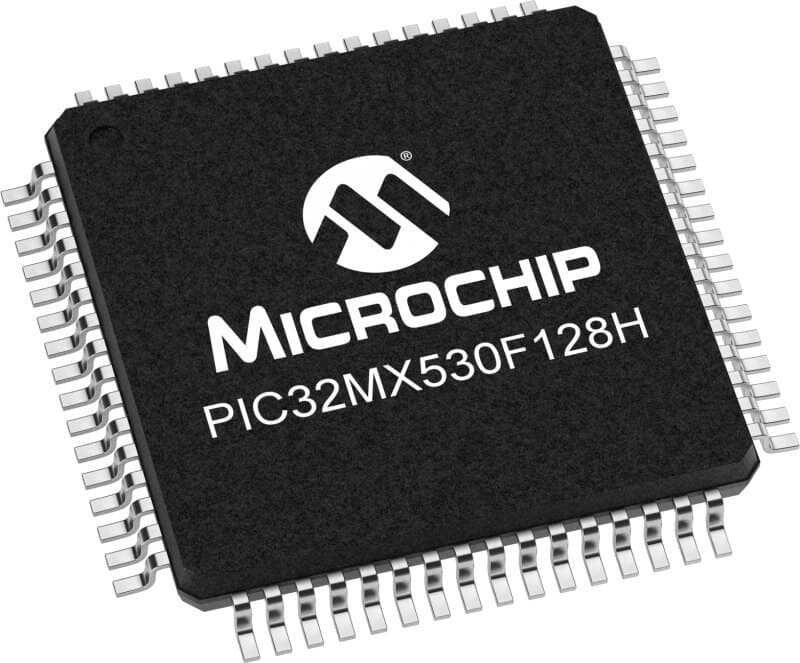

PIC32MX530F128H I/PT SMD 32-Bit 50MHz Microcontroller TQFP-64

PIC32MX530F128H I/PT SMD 32-Bit 50MHz Microcontroller TQFP-64

PIC32MX530F128H Microcontroller, This PIC32MX series microcontroller produced by Microchip has maximum performance and very low power consumption. It is a 32-bit microcontroller running at 50MHz and has a TQFP-64 casing. This microcontroller with FLASH memory type works in the input voltage range of 2.3V/DC to 3.6V/DC and temperature range from -40C to +85C.

PIC32MX530F128H Microcontroller Technical Specifications:

• Series: 32MX Series
• Model: PIC32MX530F128H
• Input Voltage: 2.3V/DC ~ 3.6V/DC
• Operating Temperature: -40C ~ +85C
• Memory Type: FLASH
• Program Memory Size: 128KB (128K x 8)
• Ram Size: 16K x 8
• EEPROM Size: NO
• Number of Bits: 32-Bit
• Speed: 50MHz
• Total Number of Inputs-Outputs: 49
• Case Type: TQFP64 / 10x10mm
• Mounting Type: SMT
• ROHS Standards: SUITABL
