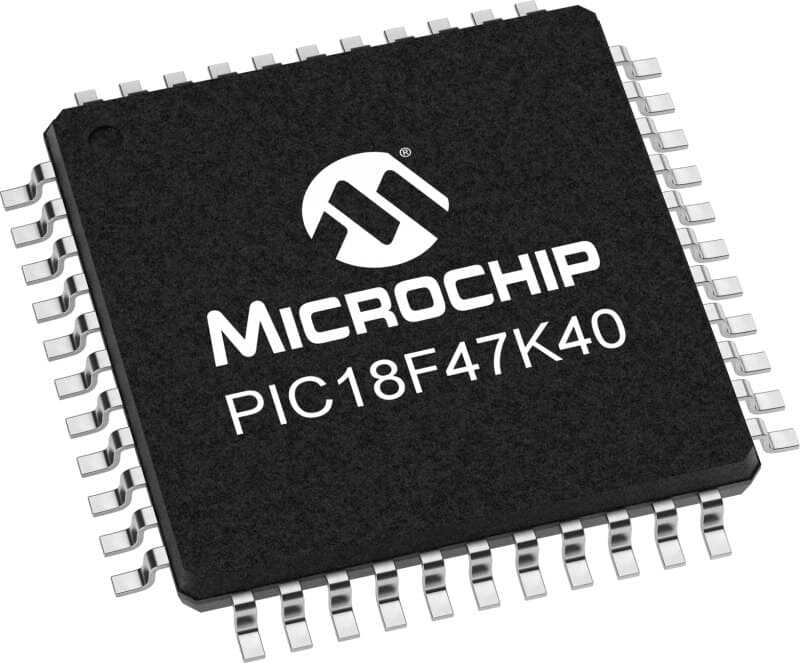

PIC18F47K40-I/PT SMD TQFP44 64Mhz 8-Bit Microcontroller

PIC18F47K40-I/PT SMD TQFP44 64Mhz 8-Bit Microcontroller

PIC18F47K40 Microcontroller, This PIC18 series microcontroller produced by Microchip has maximum performance and very low power consumption. It is an 8-bit microcontroller running at 64MHz and has a TQFP44 case. This microcontroller with FLASH memory type works in the input voltage range of 2.3V/DC to 5.5V/DC and temperature range from -40C to +85C.

PIC18F47K40 Microcontroller Technical Specifications:

• Series: 18F Series
• Model: PIC18F47K40
• Input Voltage: 2.3V/DC ~ 5.5V/DC
• Operating Temperature: -40C ~ +85C
• Memory Type: FLASH
• Program Memory Size: 128KB (64K x 16)
• Ram Size: 3.6K x 8
• EEPROM Size: 1K x 8
• Number of Bits: 8-Bit
• Speed: 64MHz
• Total Number of Inputs-Outputs: 36
• Case Type: TQFP44 - 10x10mm
• Mounting Type: SMT
• ROHS Standards: SUITABLE

Similar Products:

• 18F Series Microcontrollers
• PIC Series Microcontrollers
• Microcontrollers

Useful Links / Documents:

• PIC18F47K40 Microcontroller Datasheet
