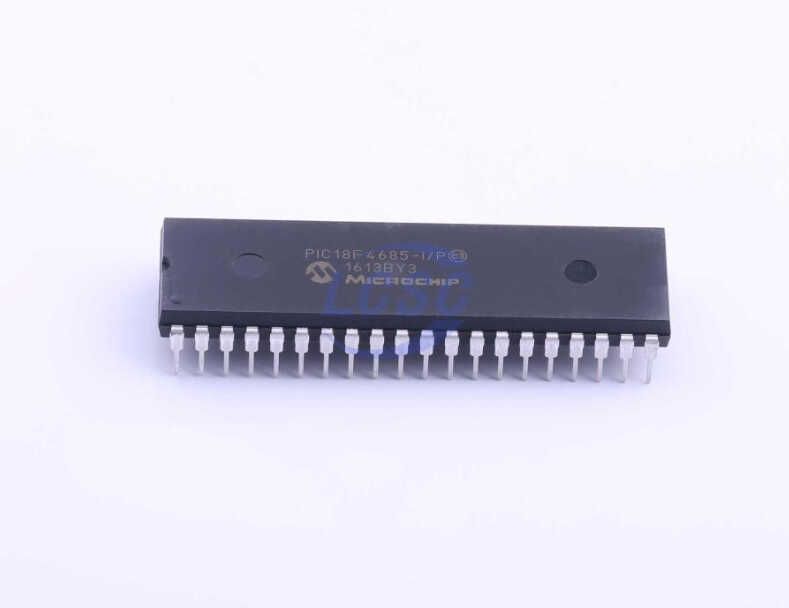

PIC18F4685 I/P DIP-40 8-Bit 40MHz Microcontroller

PIC18F4685 I/P DIP-40 8-Bit 40MHz Microcontroller

The PIC18F4685 I/P is an 8-bit microcontroller manufactured by Microchip, offering high performance and flexible usage. With a maximum operating frequency of 40MHz, it can be confidently used in industrial control, automation, communication, and embedded system projects.

Featuring internal Flash program memory, EEPROM support, and a 10-bit ADC unit, it provides a wide range of applications for both analog and digital designs. Thanks to its PDIP-40 package, soldering and prototyping are easy, making it suitable for educational projects as well.

PIC18F4685 I/P Technical Specifications:

• 8-bit PIC CPU core

• 40MHz maximum operating speed

• 96KB Flash program memory

• 1KB EEPROM data memory

• 10-bit ADC (Analog-to-Digital Converter)

• 36 digital input/output pins (I/O)

• 4.2V – 5.5V operating voltage

• Internal oscillator support

• PDIP-40 package type

Useful Links / Documents:

• PIC18F4685 Datasheet
• EasyEDA Model
