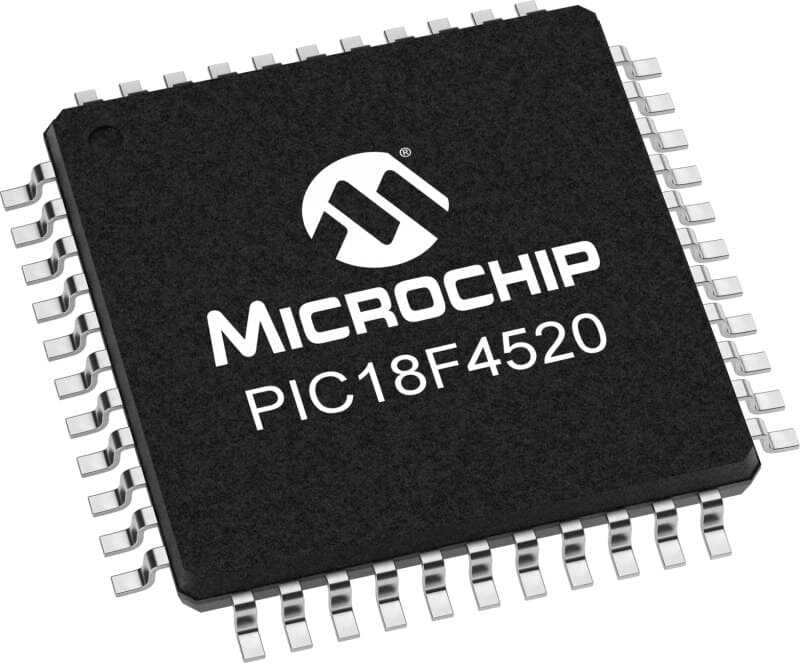

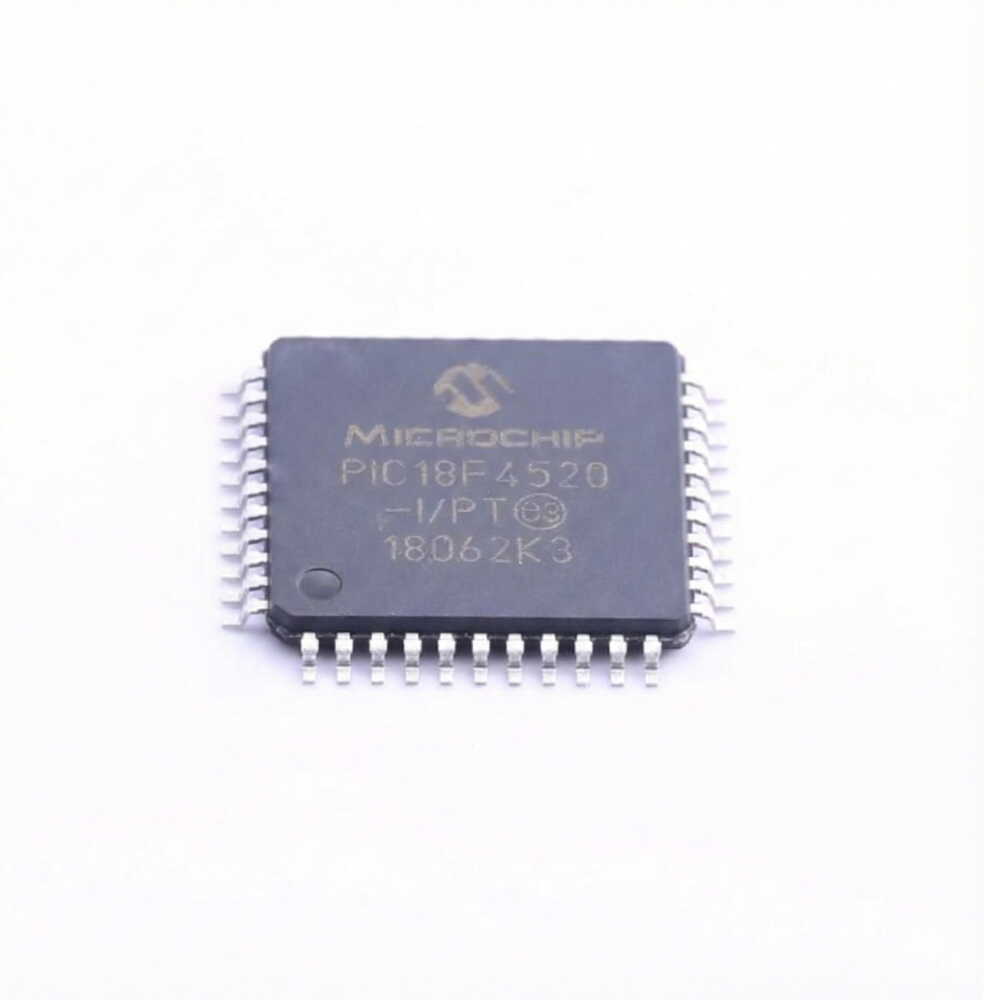

PIC18F4520-I/PT TQFP-44 8-Bit PIC Microcontroller

PIC18F4520-I/PT TQFP-44 USB-Free 8-Bit PIC Microcontroller

The PIC18F4520-I/PT is a high-performance, low-power 8-bit microcontroller from the Microchip PIC18 family. With a maximum operating speed of 40MHz and an enhanced Flash memory architecture, it is well suited for industrial control, automation systems, and embedded electronics projects.

Featuring an integrated 10-bit ADC module, a high number of I/O pins, and 32KB of program memory, it enables the implementation of complex applications with ease. This model does not include USB support and is ideal for systems focused on external communication and control. Its TQFP-44 SMD package makes it suitable for compact and professional PCB designs.

PIC18F4520-I/PT Technical Specifications:

• Microcontroller family: PIC18 Series

• Core architecture: 8-Bit PIC

• Program memory: 32KB Flash

• EEPROM capacity: 256 Bytes

• ADC resolution: 10-Bit

• Maximum CPU frequency: 40MHz

• Supply voltage: 4.2V – 5.5V

• Number of I/O pins: 36

• USB support: No

• Package type: TQFP-44 (SMD)

Useful Links / Documents:

• Datasheet
• EasyEDA Model
