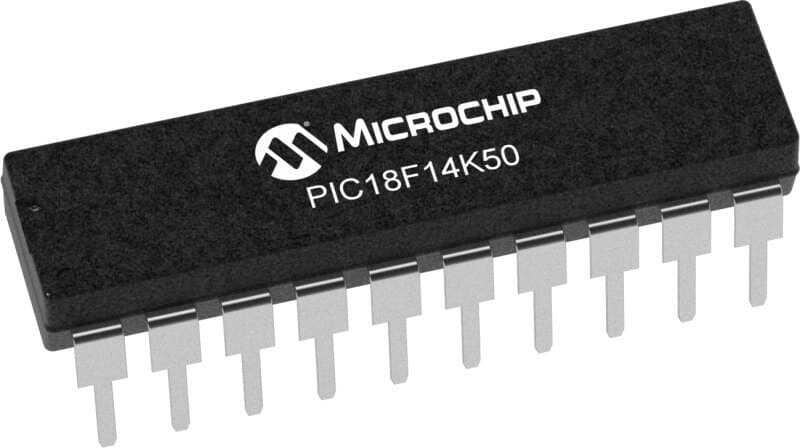

PIC18F14K50-I/P 8-Bit 48Mhz Microcontroller DIP-20

PIC18F14K50-I/P 8-Bit 48Mhz Microcontroller DIP-20

PIC18F14K50 Microcontroller, This PIC18 series microcontroller produced by Microchip has maximum performance and very low power consumption. It is an 8-bit microcontroller running at 48MHz and has a DIP-20 sheath. This microcontroller with FLASH memory type works in the input voltage range of 1.8V/DC to 5.5V/DC and temperature range from -40C to +85C.

PIC18F14K50 Microcontroller Technical Specifications:

• Series: 18F Series
• Model: PIC18F14K50
• Input Voltage: 1.8V/DC ~ 5.5V/DC
• Operating Temperature: -40C ~ +85C
• Memory Type: FLASH
• Program Memory Size: 16KB (8K x 16)
• Ram Size: 768 x 8
• EEPROM Size: 256 x 8
• Number of Bits: 8-Bit
• Speed: 48MHz
• Total Number of Inputs-Outputs: 14
• Sheath Type: DIP-20 - 7.62mm
• Mounting Type: THT
• ROHS Standards: SUITABLE

Similar Products:

• 18F Series Microcontrollers
• PIC Series Microcontrollers
• Microcontrollers

Useful Links / Documents:

• PIC18F14K50 Microcontroller Datasheet
