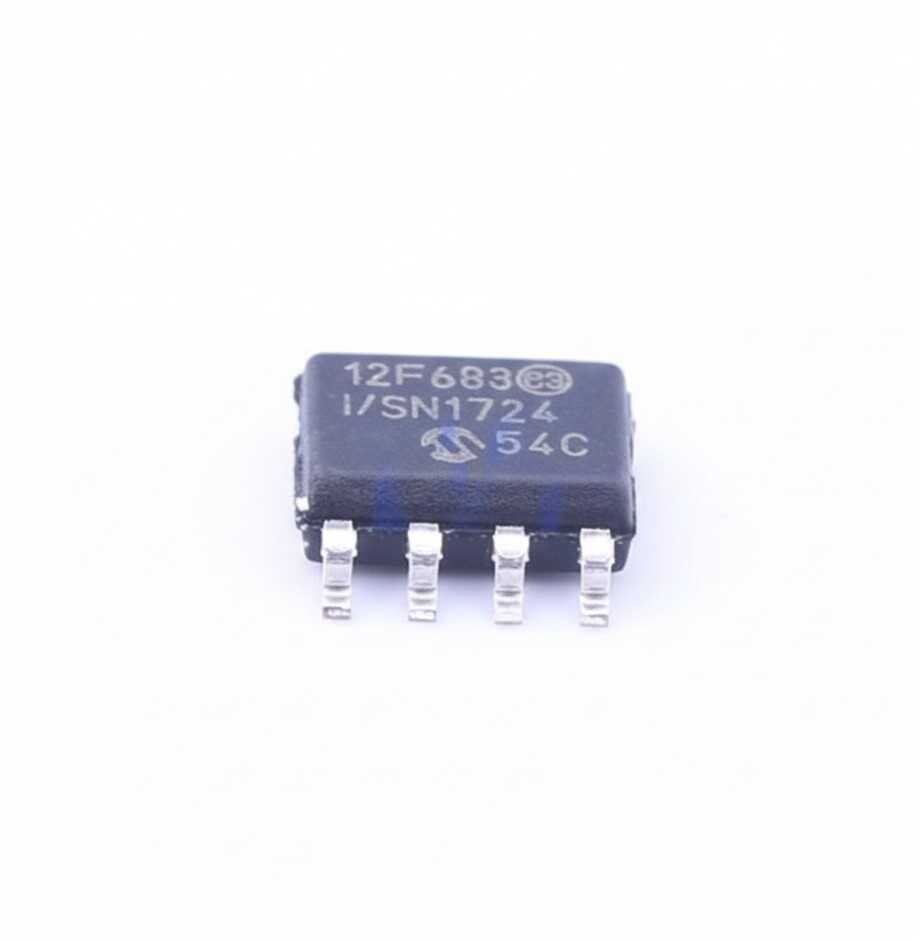

PIC12F683-I/SN SOIC-8 8-Bit PIC Microcontroller

PIC12F683-I/SN SOIC-8 8-Bit PIC Microcontroller

The PIC12F683-I/SN is a compact, low-power 8-bit PIC microcontroller manufactured by Microchip. With an operating speed of up to 20MHz, a built-in oscillator, and Flash-based program memory, it is widely used in simple control applications, sensor interfacing, LED control, and small-scale embedded system projects.

The SOIC-8 surface-mount package enables space-saving and compact PCB designs. Featuring a 10-bit ADC module, EEPROM memory, and a limited yet sufficient number of I/O pins, it offers a practical solution for cost-sensitive applications with minimal pin requirements. Thanks to nanoWatt technology, it provides low power consumption and is well suited for battery-powered systems.

PIC12F683-I/SN Technical Specifications:

• 8-bit PIC microcontroller

• CPU core: PIC

• Maximum operating frequency: 20MHz

• Program memory: 3.5KB Flash

• EEPROM: 256 Bytes

• ADC resolution: 10-bit

• Supply voltage: 2V – 5.5V

• Built-in oscillator

• Total I/O pins: 5

• Low power consumption (nanoWatt technology)

• Package type: SOIC-8 (SMD)

Useful Links / Documents:

• Datasheet
• EasyEDA Model

Similar Products:

• Microcontrollers
