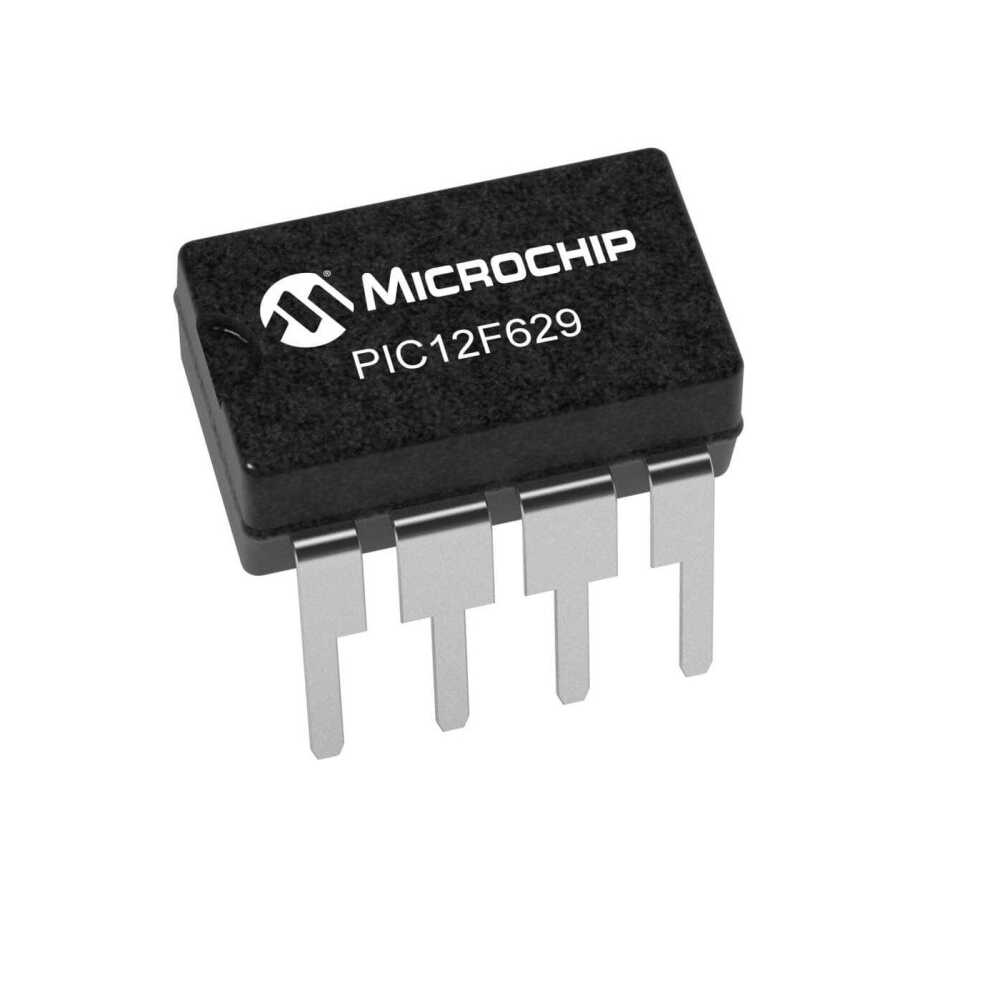

PIC12F629 I/P 8-Bit 20Mhz Microcontroller DIP8

PIC12F629 I/P 8-Bit 20Mhz Microcontroller DIP8

PIC12F629 Microcontroller, This PIC12 series microcontroller produced by Microchip company has maximum performance and very low power consumption. It is an 8-bit microcontroller with a DIP sheath running at 20MHz. This microcontroller with FLASH memory type works in the input voltage range of 2V/DC to 5.5V/DC and temperature range from -40C to +85C.

PIC12F629 Microcontroller Technical Specifications:

• Series: 12F Series
• Model: PIC12F629
• Input Voltage: 2V/DC ~ 5.5V/DC
• Operating Temperature: -40C ~ +85C
• Memory Type: FLASH
• Program Memory Size: 1.75KB (1K x 14)
• Ram Size: 64Byte
• EEPROM Size: 128Byte
• Number of Bits: 8-Bit
• Speed: 20MHz
• Total Number of Inputs-Outputs: 5
• Sheath Type: DIP8 - 7.62mm
• Mounting Type: THT
• ROHS Standards: SUITABLE
• Pins Spacing: 2.54mm
• Width: 7.62mm
• Length: 9.27mm
