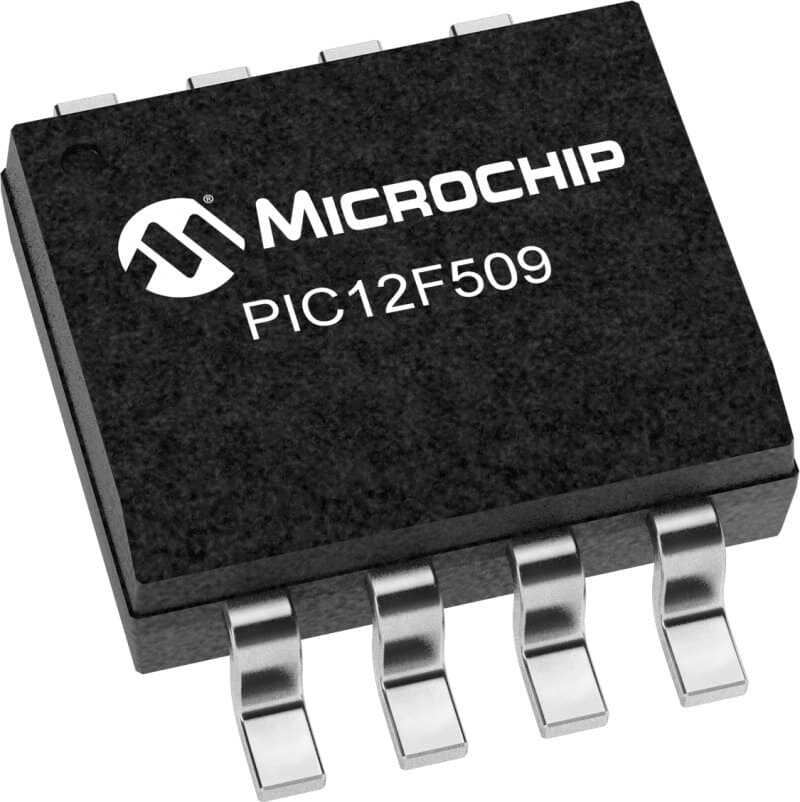

PIC12F509 I/SN SMD SOIC-8 4MHz 8-Bit Microcontroller

PIC12F509 I/SN SMD SOIC-8 4MHz 8-Bit Microcontroller

PIC12F509 Microcontroller, This PIC12 series microcontroller produced by Microchip company has maximum performance and very low power consumption. It is an 8-bit microcontroller running at 4MHz and has a SOIC-8 envelope. This microcontroller with FLASH memory type works in the input voltage range of 2V/DC to 5.5V/DC and temperature range from -40C to +85C.

PIC12F509 Microcontroller Technical Specifications:

• Series: 12F Series
• Model: PIC12F509
• Input Voltage: 2V/DC ~ 5.5V/DC
• Operating Temperature: -40C ~ +85C
• Memory Type: FLASH
• Program Memory Size: 1.5KB (1K x 12)
• Ram Size: 41Byte
• EEPROM Size: NO
• Number of Bits: 8-Bit
• Speed: 4MHz
• Total Number of Inputs-Outputs: 5
• Sheath Type: SOIC-8
• Mounting Type: SMT
• ROHS Standards: SUITABLE
