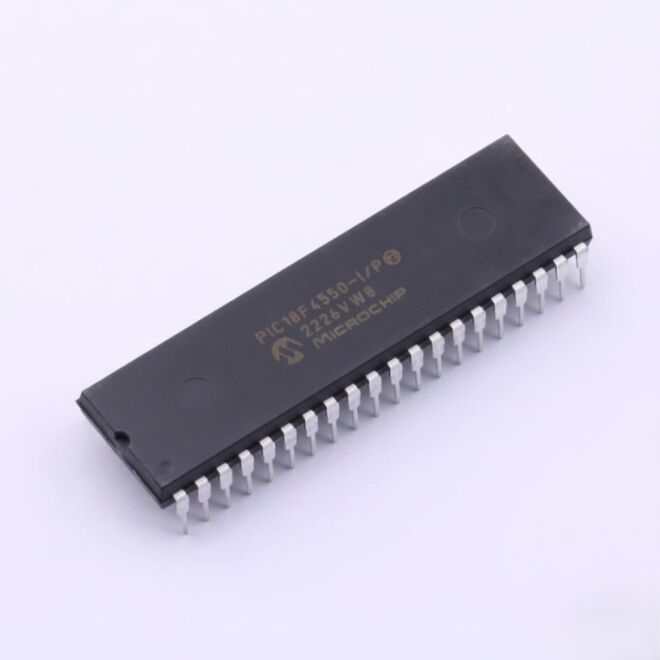

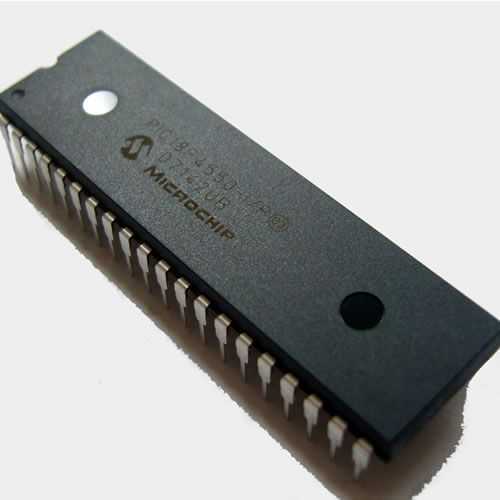

PIC18F4550-I/P PDIP-40 USB-Enabled 8-Bit PIC Microcontroller

PIC18F4550-I/P PDIP-40 USB-Enabled 8-Bit PIC Microcontroller

The PIC18F4550-I/P is a high-performance 8-bit PIC microcontroller from Microchip with built-in USB communication support. Featuring an integrated USB 2.0 Full-Speed (12 Mbps) module, it is widely used in USB-based devices, HID projects, data acquisition systems, and applications that require direct communication with a PC.

The PDIP-40 (through-hole) package simplifies prototyping and soldering, making it ideal for education, hobby, and R&D projects. With an operating speed of up to 48MHz, a 10-bit ADC module, a large number of I/O pins, and a built-in oscillator, it enables flexible and high-performance embedded system designs. Thanks to nanoWatt technology, it offers efficient operation with low power consumption.

PIC18F4550-I/P Technical Specifications:

• 8-bit PIC microcontroller

• CPU core: PIC18

• Integrated USB 2.0 Full-Speed (12 Mbps) support

• Maximum operating frequency: 48MHz

• Program memory: 32KB Flash

• EEPROM: 256 Bytes

• ADC resolution: 10-bit

• Supply voltage: 4.2V – 5.5V

• Built-in oscillator

• Total number of I/O pins: 35

• Low power consumption (nanoWatt technology)

• Package type: PDIP-40 (Through-Hole)

Useful Links / Documents:

• Datasheet
• EasyEDA Model
