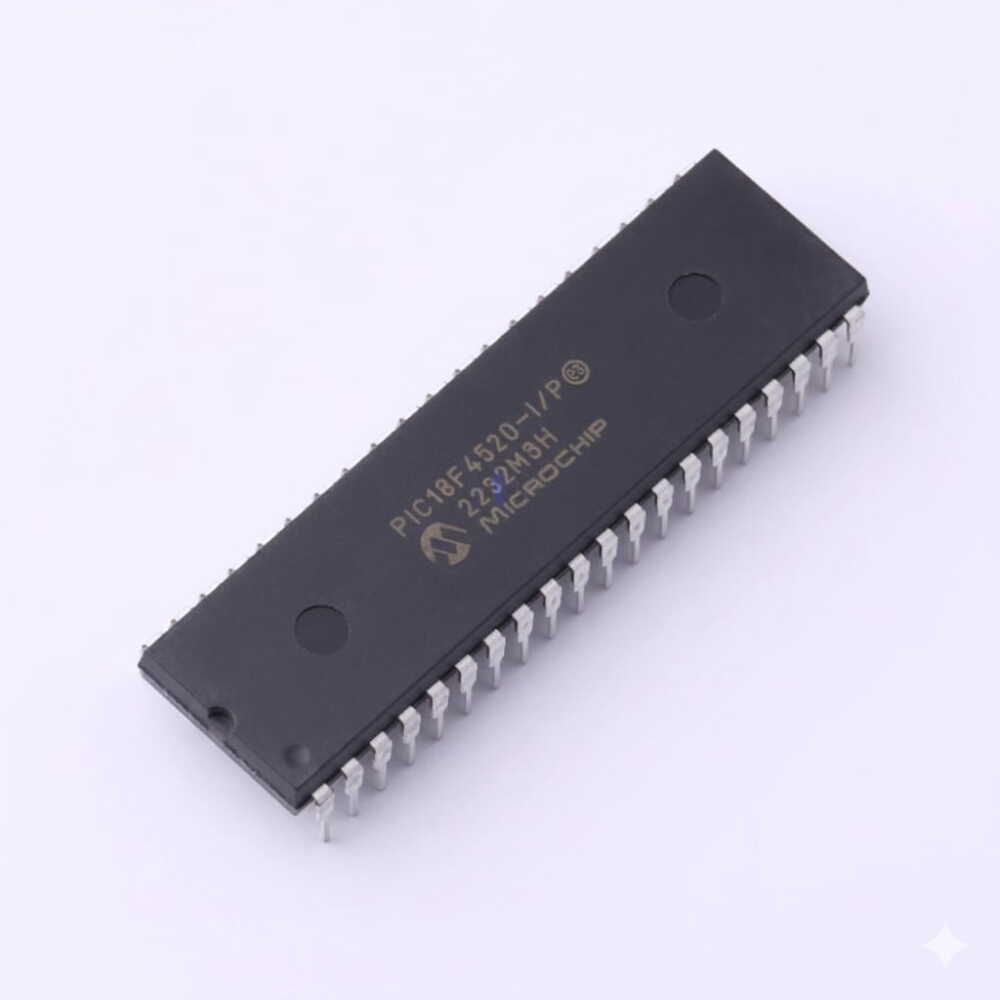

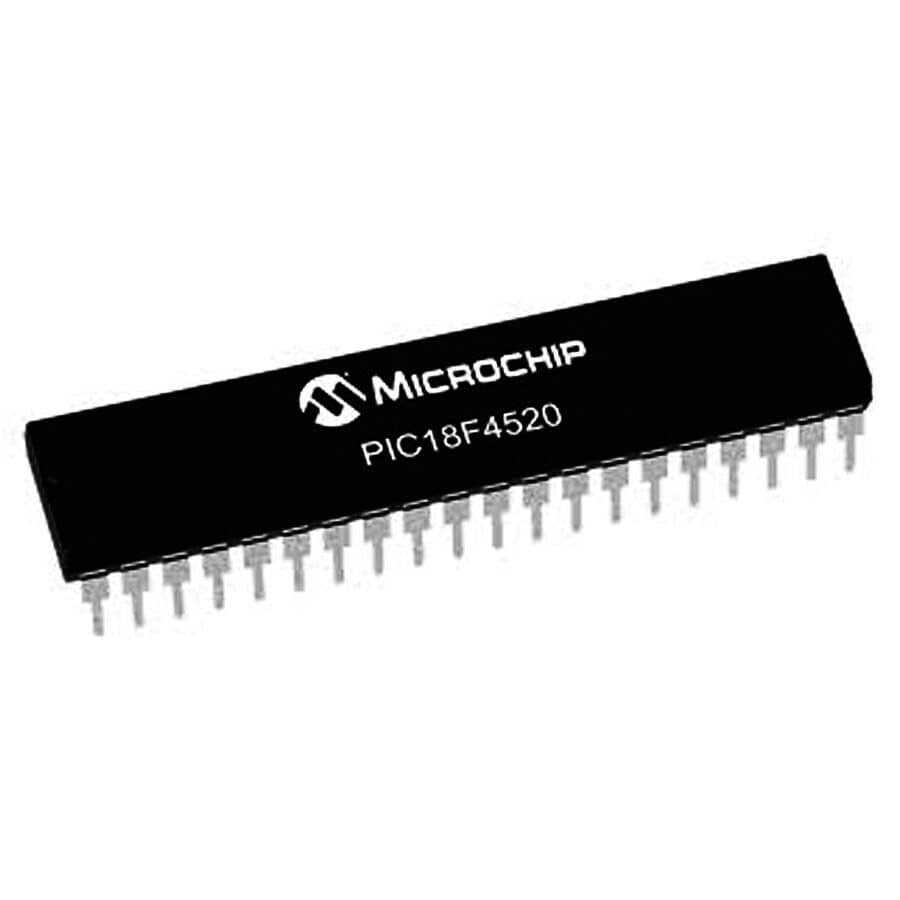

PIC18F4520-I/P PDIP-40 8-Bit PIC Microcontroller

PIC18F4520-I/P PDIP-40 8-Bit PIC Microcontroller

The PIC18F4520-I/P is a high-performance 8-bit microcontroller from Microchip’s PIC18 family, featuring enhanced peripheral modules and Flash memory architecture. With a maximum operating frequency of 40MHz, it is widely used in industrial control, automation, measurement, and embedded system applications.

Equipped with 32KB of program memory, 256 bytes of EEPROM, and an integrated 10-bit ADC module, it is ideal for projects that require combined analog and digital signal processing. Its 36 general-purpose I/O pins enable easy integration with a wide range of external sensors and modules. The PDIP-40 package makes it especially suitable for education, prototyping, and breadboard-based designs.

PIC18F4520-I/P Technical Specifications:

• Microcontroller family: PIC18 Series

• Core architecture: 8-Bit PIC

• Program memory: 32KB Flash

• EEPROM capacity: 256 Bytes

• ADC resolution: 10-Bit

• Maximum CPU frequency: 40MHz

• Supply voltage: 4.2V – 5.5V

• Number of I/O pins: 36

• Oscillator type: Internal

• Package type: PDIP-40 (Through Hole)

Useful Links / Documents:

• Datasheet
• EasyEDA Model
