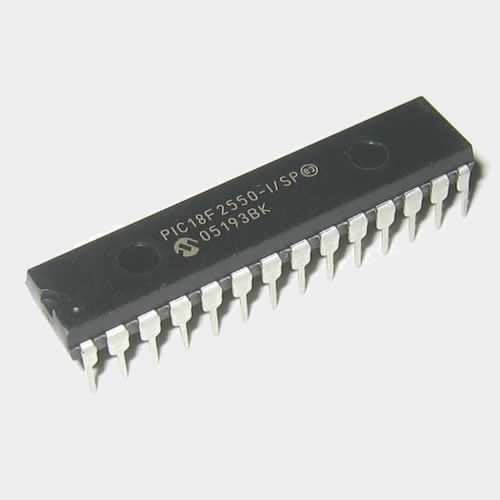

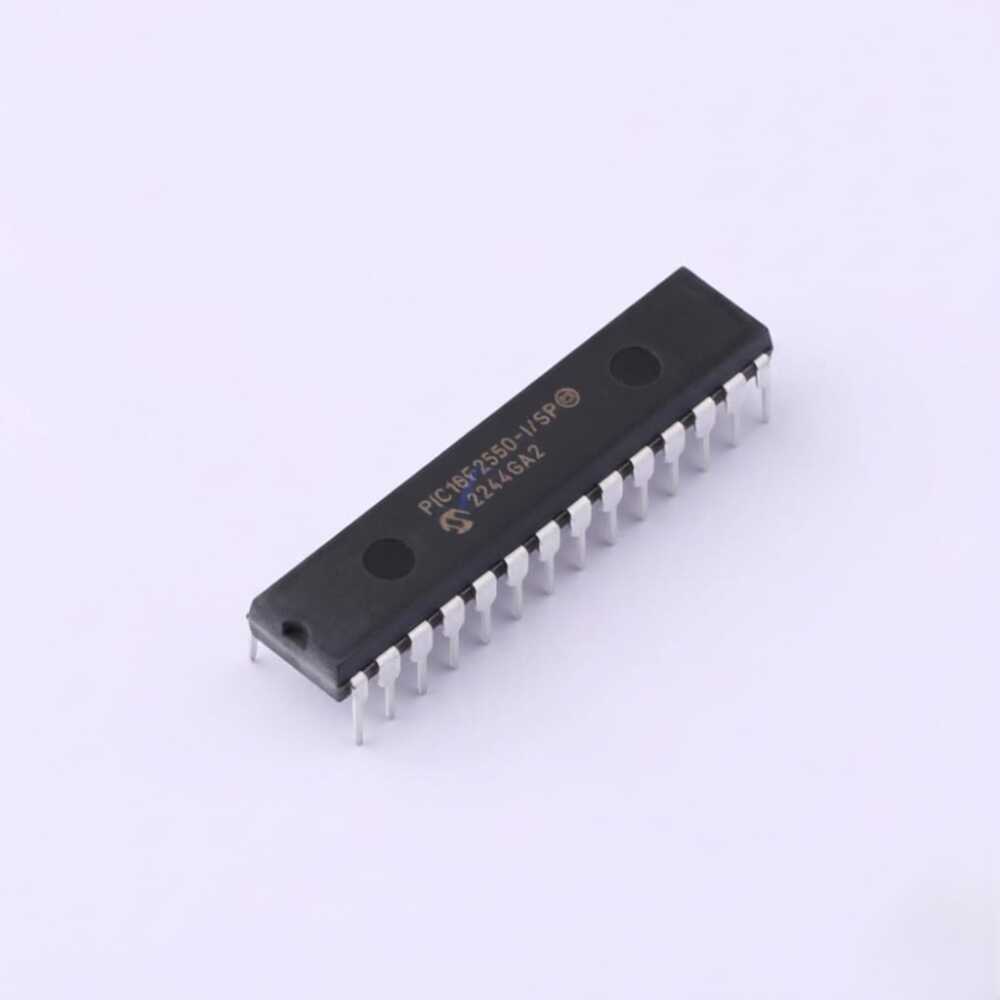

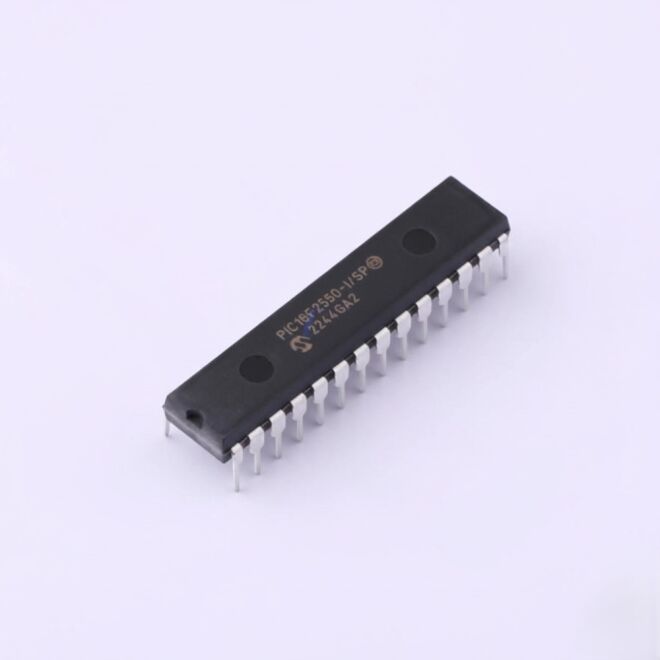

PIC18F2550-I/SP SPDIP-28 USB Enabled 8-Bit PIC Microcontroller

PIC18F2550-I/SP SPDIP-28 USB-Enabled 8-Bit PIC Microcontroller

The PIC18F2550-I/SP is a high-performance 8-bit PIC microcontroller developed by Microchip with integrated USB communication capability. Thanks to its built-in USB 2.0 Full-Speed (12 Mbps) support, it is widely used in USB-based devices, HID applications, data acquisition systems, and projects that require direct communication with a computer.

The SPDIP-28 (through-hole) package simplifies prototyping and soldering, making it ideal for educational, hobby, and R&D projects. With an operating speed of up to 48MHz, a 10-bit ADC module, a built-in oscillator, and a sufficient number of I/O pins, it enables flexible and powerful embedded system designs. Thanks to nanoWatt technology, it provides efficient operation with low power consumption.

PIC18F2550-I/SP Technical Specifications:

• 8-bit PIC microcontroller

• CPU core: PIC18

• Integrated USB 2.0 Full-Speed (12 Mbps) support

• Maximum operating frequency: 48MHz

• Program memory: 32KB Flash

• EEPROM: 256 Bytes

• ADC resolution: 10-bit

• Supply voltage: 4.2V – 5.5V

• Built-in oscillator

• Total number of I/O pins: 24

• Low power consumption (nanoWatt technology)

• Package type: SPDIP-28 (Through-Hole)
