P40/25 12V Electromagnet - 30kg Holding Force

P40/25 12V Electromagnet - 30kg Holding Force

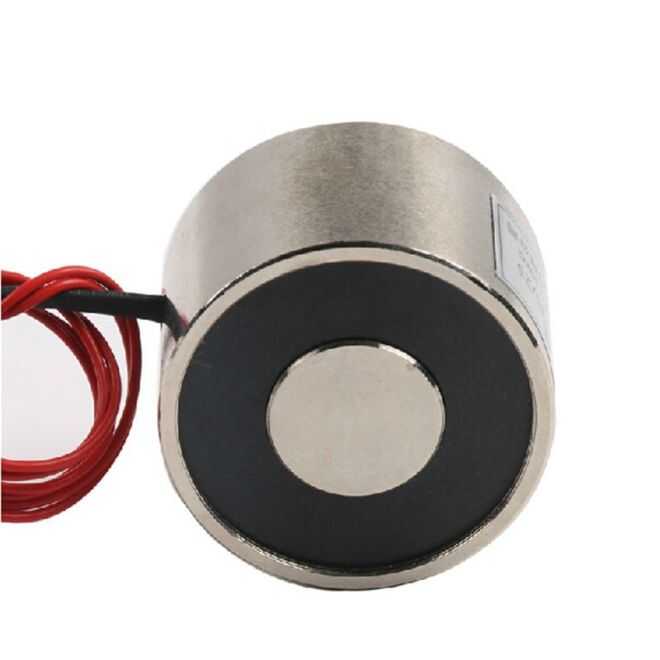

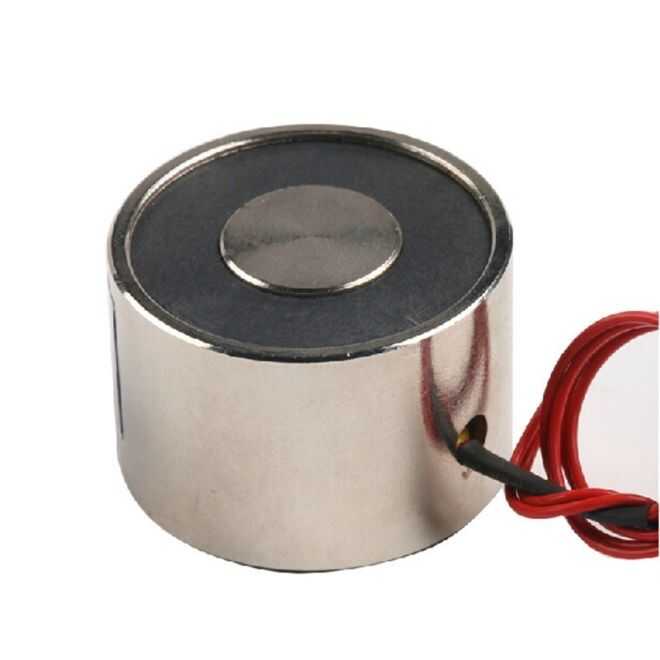

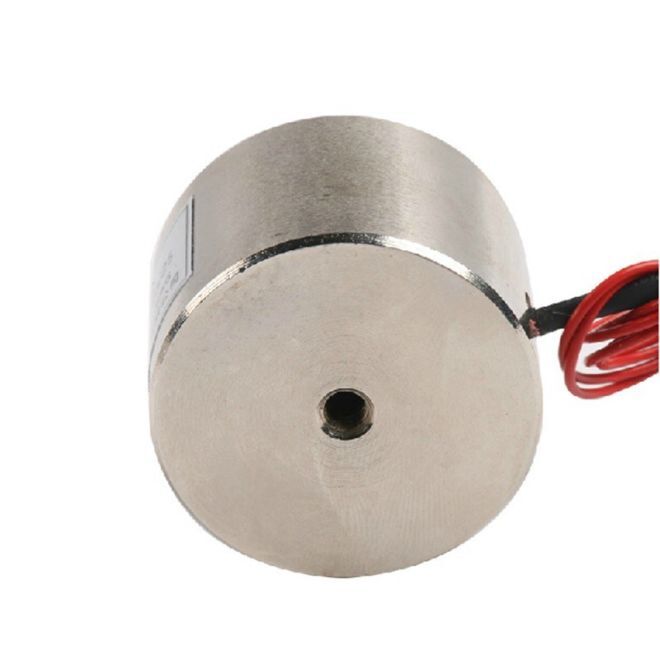

This electromagnet is a powerful magnetic holding system that operates with 12V DC and has the capacity to hold objects up to 30kg. Thanks to its compact design, it is widely used in automation systems, robotic projects, and industrial applications.

Warning:

The weight that the product can lift may vary depending on several factors: type of metal, metal thickness, whether the metal is coated or painted, whether the magnet is positioned perpendicular to the load, and whether the load is balanced.

Depending on the factors mentioned above, the maximum holding capacity can reach up to 30kg. If ideal conditions are not met, this value may drop to just a few kilograms.

Technical Specifications:

• Input Voltage: 12V DC

• Holding Force: 30kg (under full surface contact)

• Outer Diameter: 40mm

• Height: 25mm

• Cable Length: Approximately 20cm
