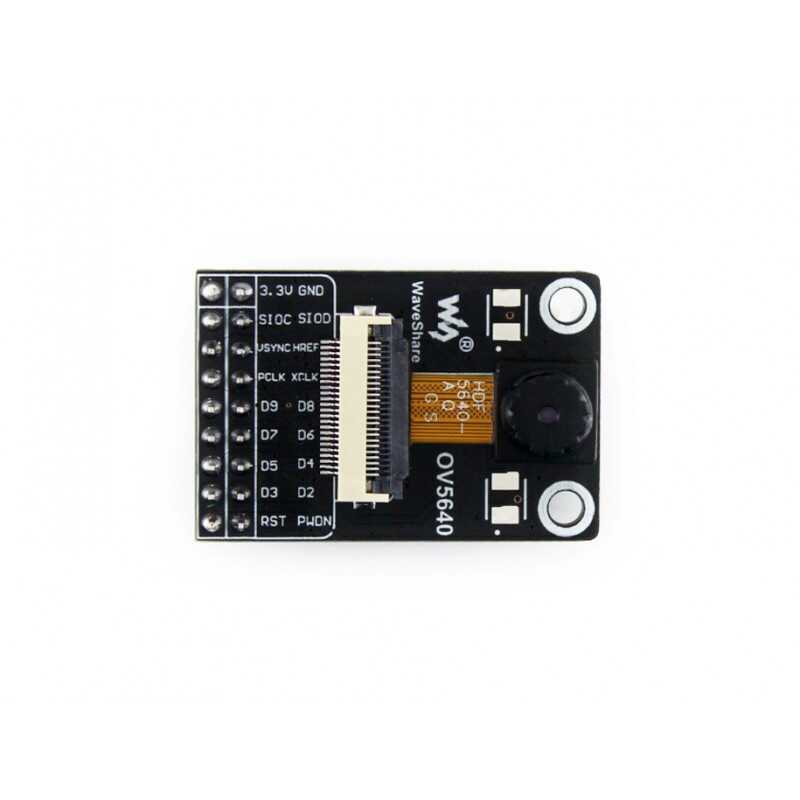

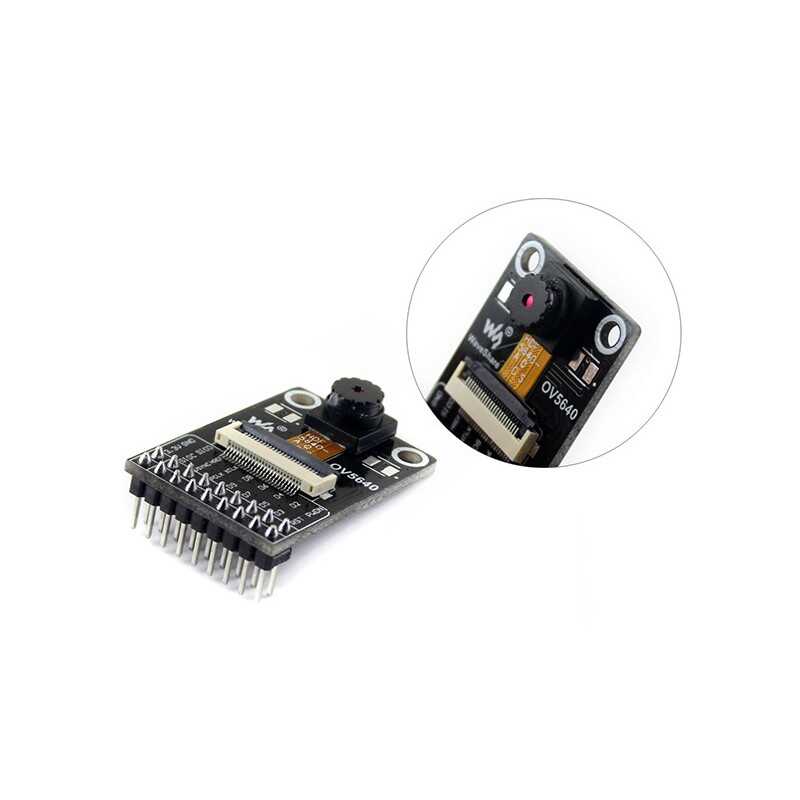

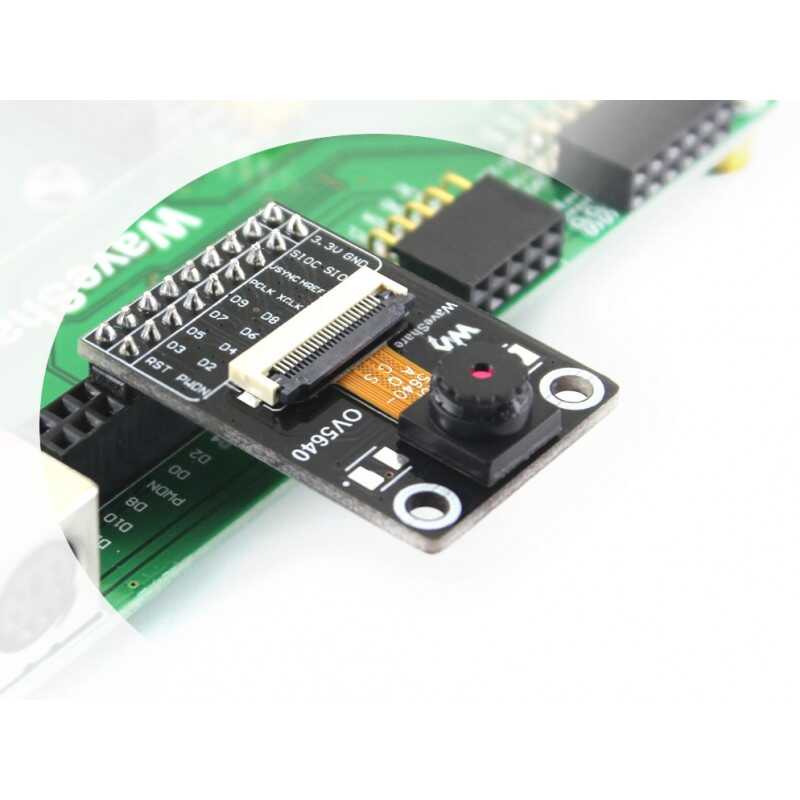

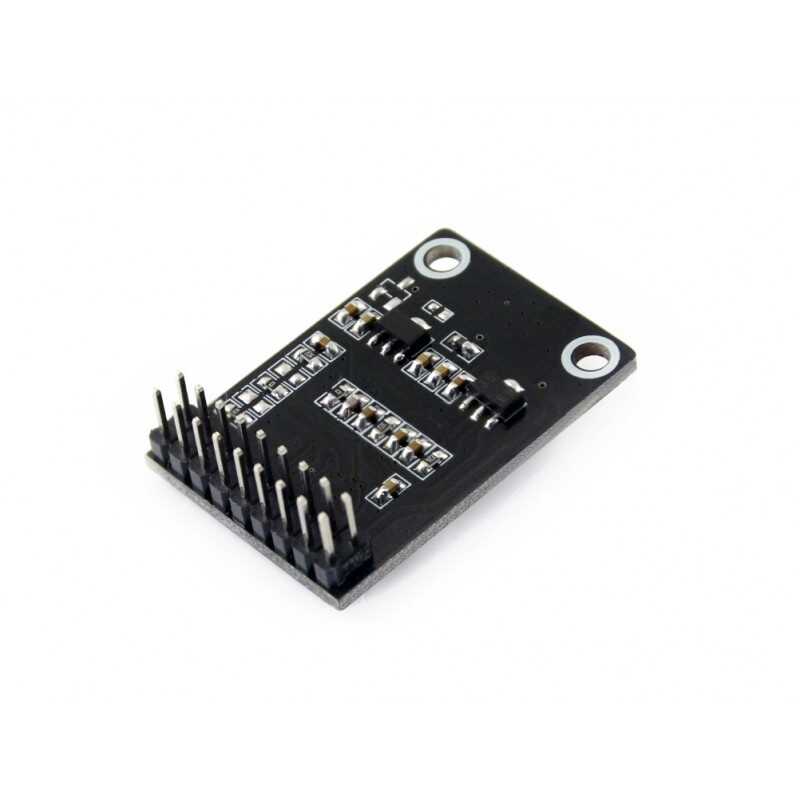

OV5640 Camera Board (A), 5 Megapixel (2592x1944)

The OV5640 Camera Board is a simple digital camera that adopts the OV5640 base. It allows you to take photos or record videos with your development board. It also expands the capabilities of the microcontroller thanks to its ability to take pictures and record videos.

OV5640 Camera Board Technical Specifications:

• Pixel: 5 Megapixels
• Resolution: 2592 x 1944
• 1.4 mm x 1.4 mm Pixels with OmniBSI Technology,
• High Precision,
• low entanglement,
• Low cost,
• Automatic Image Control Functions: AEC, AWB, ABF, ABLC etc.
• Automatic Image Control Functions:
• Image Quality Controls:
• Color Saturation,
• Ton,
• Gama
• Sharpness,
• Lens Correction etc.
• Image Scaling,
• Scrolling,
• Supports windowing etc.
• Lens:
• CCD size: 1/4 inch
• Aperture (K): 2.8
• Focal Length: 2.8mm
• Cross: 63°C
• Output Formats:
• YUV(422/420)/YCbCr422
• RGB565/555/444
• CCIR656
• RAW RGB
• Compressed Data
• Operating Voltage: 3.3V
• Control Interface: SCCB (I2C compatible)
• Data Interface: DVP 8 bit
