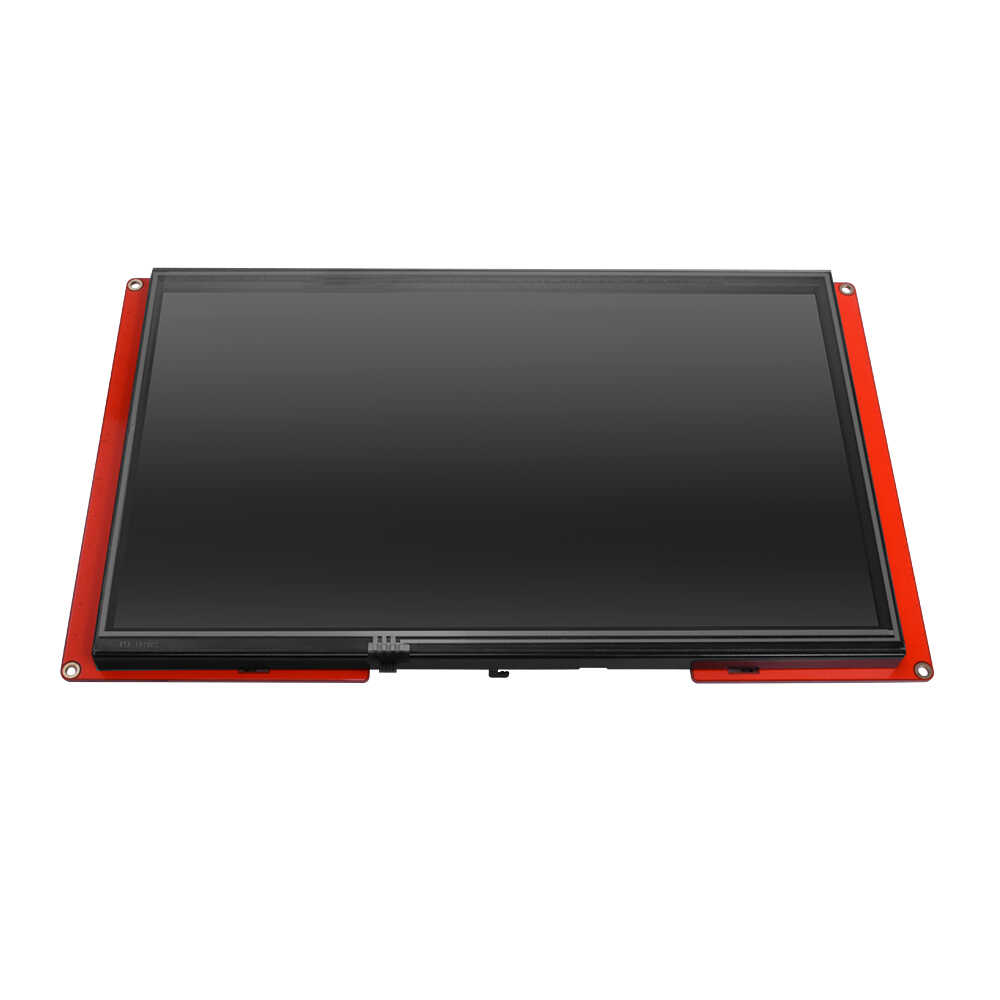

NX1060P101-011R-I - 10.1inch Smart Serial USART HMI Resistive Touch Screen
NX1060P101-011R-I is a touch-enabled TFT screen produced by Nextion. It is an HMI solution that acts as a control and visualization interface between human, process, machine, application or device. This product consists of a set of TFT cards in the hardware part and the Nextion editor in the software part. The Nextion TDT board uses a single serial port for communication. In this way, you will not have to deal with cabling.
Using the Nextion editor software, you will be able to quickly develop drag or drop components applications using ASCII text-based instructions to code how components interact on the screen. Nextion HMI display is connected to the peripheral MCU via TTL serial to provide notifications, an event that the peripheral MCU can affect, because the peripheral MCU uses simple ASCII text-based instructions, you will update the status easily.
NX1060P101-011R-I Features:
- Free and Easy-to-Use Nextion HMI Software
- ASCII text-based instructions for screen-side encoding
- Assignable property value components at runtime
- Drag and Drop components for GUI design and interaction
- Built-in debugger for HMI project simulation
NX1060P101-011R-I Technical Specifications:- Power Consumption: 5V
- 10.1" IPS RGB 65K resistive touchscreen
- Pin: 4 (+5V, TX, RX, GND) TTL serial interface
- 300 nits Brightness with 1% range setting
- Audio Interface
- Internal RTC, EEPROM 8 digital GPIO
- 4 MB Memory for User Code and Data
- Brightness Adjustment: 0-300 nits, 1% steppinG
