NPIC6C595PW TSSOP16 - Shift Register Integration

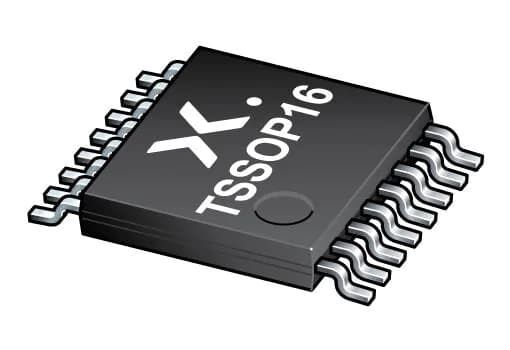

NPIC6C595PW TSSOP-16 Shift Register IC

The NPIC6C595PW is a serial-in, parallel-out (SIPO) shift register IC with open-drain outputs, designed for driving loads such as LEDs, relays, solenoids, and similar devices. Thanks to its integrated power transistors, each output channel provides high current sinking capability.

The IC receives serial data via a single data line and transfers it to eight parallel outputs using a clock signal. This allows multiple outputs to be controlled using a minimal number of microcontroller or development board pins. It is widely used in industrial applications and LED driver projects.

NPIC6C595PW Technical Specifications:

• Model: NPIC6C595PW

• Function: 8-bit Serial-In / Parallel-Out Shift Register

• Output Type: Open-Drain (Current Sink)

• Logic Supply Voltage (Vcc): 4.5V – 5.5V DC

• Maximum Output Voltage: 30V

• Output Current per Channel: 100 mA (max.)

• Operating Temperature: -40°C ~ +125°C

• Package Type: TSSOP-16

• Mounting Type: SMT (Surface Mount)

• ROHS: Compliant

Similar Products:

• 74HC595 Shift Register ICs
• LED Driver ICs

Useful Links / Documents:

• NPIC6C595PW Datasheet
